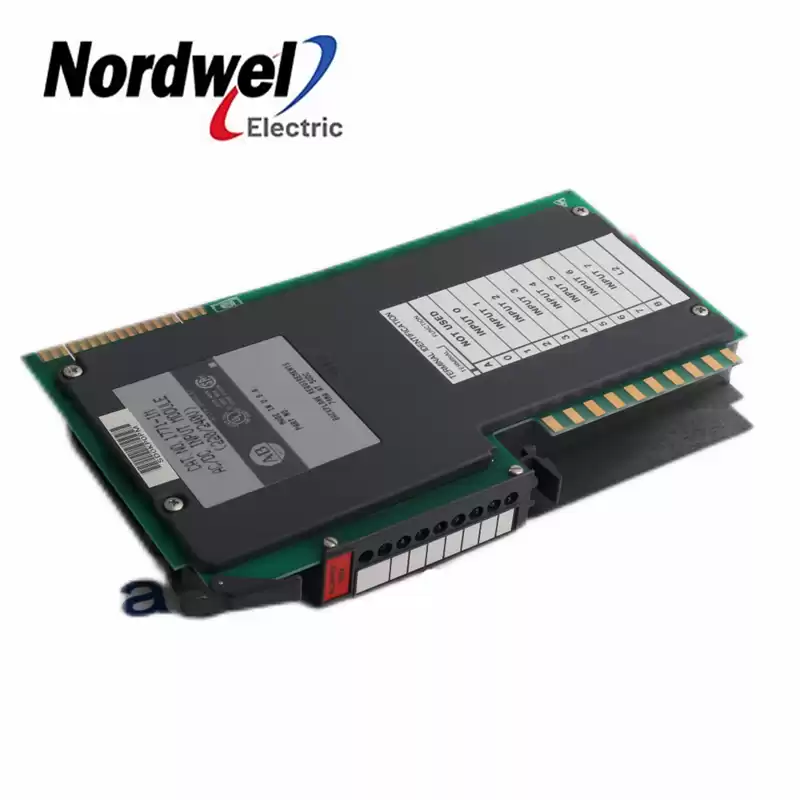

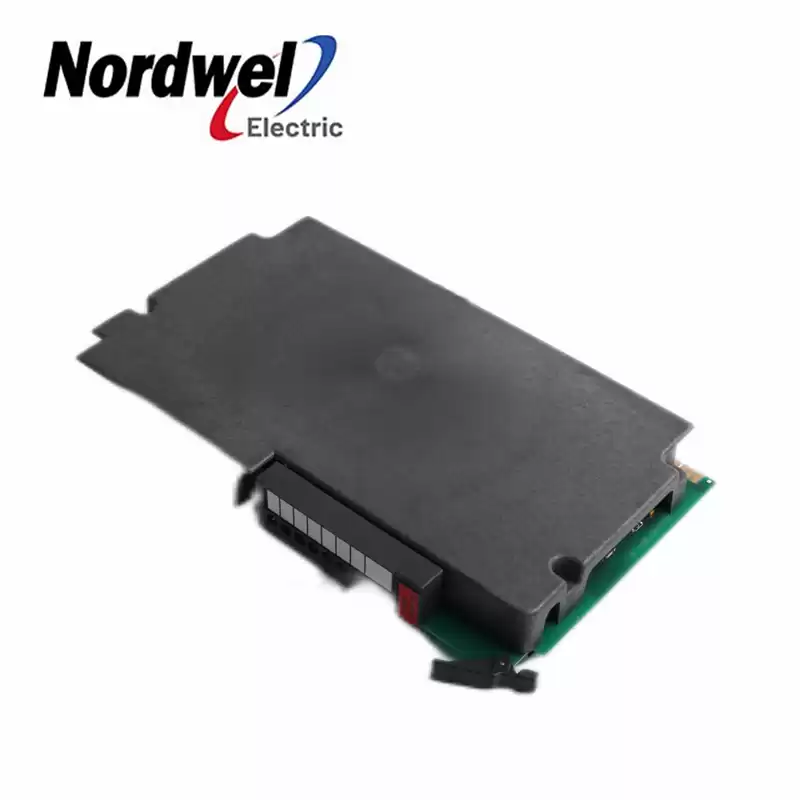

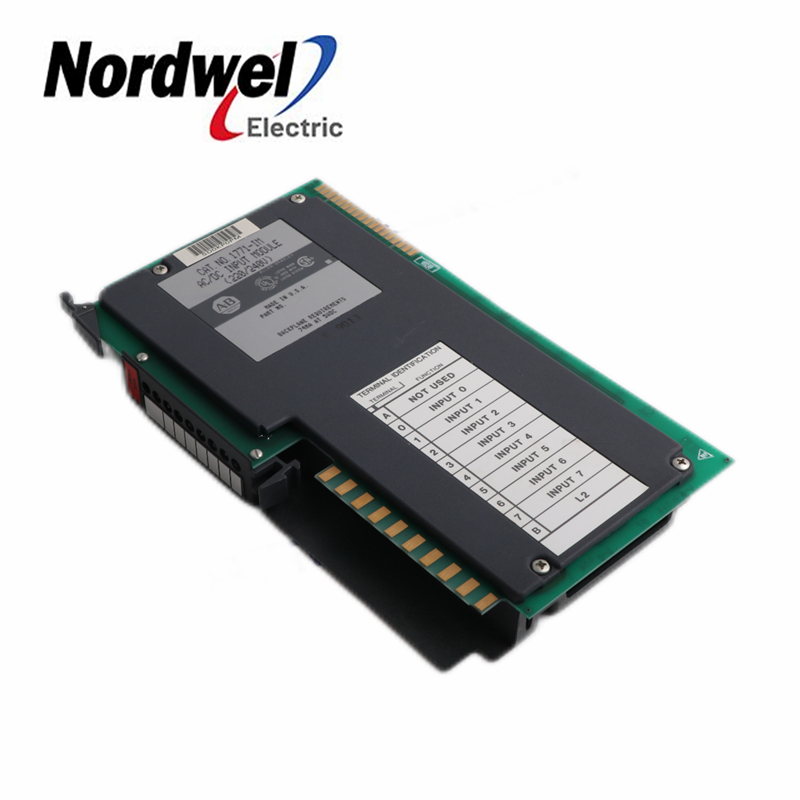

The 1771-IM input module from is a PLC 5 series digital input module. It can operate with both AC
and DC input voltage. The 1771-IM digital input module has 8 inputs for receiving signals from up to 8 devices at
a time. The voltage category of this digital input module is 220 Volts AC/DC. The 1771-IM AC/DC digital input
module can operate with 184 to 276 Volts AC voltage or with 184 to 276 Volts DC voltage.
Technical Specifications for 1771-IM
Manufacturer Automation
Brand
Part Number/Catalog No. 1771-IM
Module Type Digital AC/DC Input Module
Number of Inputs 8 Inputs
Voltage Category 220 Volts AC/DC
AC Operating Voltage 184-276 Volts
DC Operating Voltage 184-276 Volts
Backplane Current 75 Miliamperes
Max AC Off-State Current 1.0 Miliameres
Max DC Off-State Current 1.0 Miliameres
Typical AC Signal Delay (On) 20 (+/- 6) ms
Typical DC Signal Delay (On) 10 (+/- 4) ms
Typical AC Signal Delay (Off) 20 (+/- 6) ms
Typical DC Signal Delay (Off) 20 (+/- 9) ms
Wiring Arm 1771-WA
Mounting Rack Mountable
