1771-IXHR | Allen Bradley | High Resolution Thermocouple/Millivolt Input Module

1771-IXHR   1771 8 Point Input Module



Allen Bradley   1771-IXHR  !!!  --- sales3@amikon.cn


Contact:Jessica

Email:sales3@amikon.cn

Skype:jessica01235483

Wechat:hu18030235311

Mobile:86-18030235311(WhatsApp)






A PLC-5/1771 control system, at minimum, consists of a programmable controller and I/O modules in a single 1771 chassis with a power supply. You choose the controller with the on-board communication ports you need.

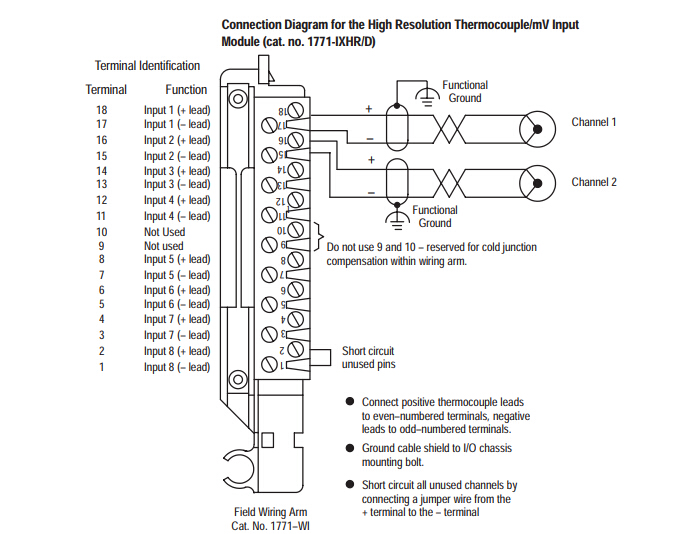

The Allen-Bradley / Rockwell Automation 1771-IXHR High-Res TC/mV Input Module houses 8 floating differential inputs. Voltage range of 1771IXHR is type B, E, J, K, R, S, T, -+99.99mV. Backplane current load is 750mA. External power is not required. Wiring arm is the 1771-WI. Resolution is 15 bits + sign and channel update is 25ms to 8 channels. Data format for 1771-IXHR is natural binary only




Description  Value
Number of Inputs  8, all of the same type or 4 each of 2 different types
Module Location  1771 I/O chassis ± 1 module slot
Type of Input (Selectabl Type B, Pt±30& Rh/Pt±6& Rh (320 to 1800oC)
Type E, chromel/constantan (±270 to 1000oC)
Type J, iron/constantan (±210 to 1200oC)
Type K, chromel/alumel (±270 to 1380oC)
Type R, Pt/Pt±13& Rh (±50 to 1770oC)
Type S, Pt/Pt±10& Rh (±50 to 1770oC)
Type T, copper/constantan (±270 to 400oC)
Millivolt (±100 to +100mV dc)
Thermocouple Linearization  IPTS±68 standard, NBS MN±12
Input Resolution  3.2328µV
Common Mode Rejection  120dB at 60Hz, up to 1000V peak
Common Mode Impedance  Greater than 10 megohms






Allen Bradley   1771-IXHR


1771-IXHR | Allen Bradley | High Resolution Thermocouple/Millivolt Input Module




Email:sales3@amikon.cn




On-board remote I/O scanner ports are available on all PLC-5 controllers. On-board extended-local I/O scanner ports are available on some PLC-5 controllers. On-board ControlNet ports are available on some PLC-5 controllers. To provide a DeviceNet I/O scanner port to the system, you must add a 1771-SDN DeviceNet Scanner Module.  new+original +one year warranty
