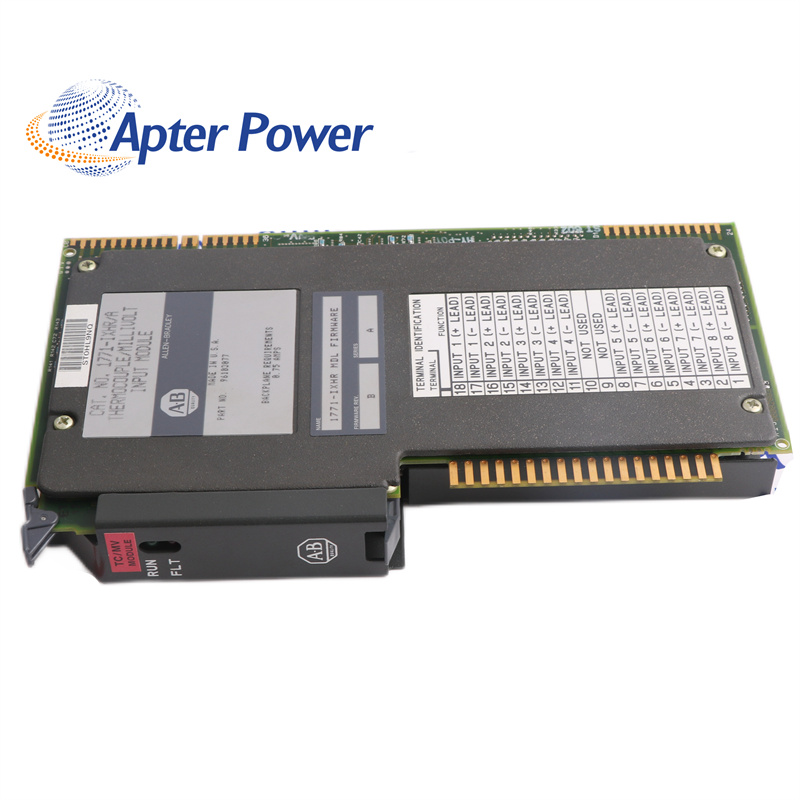

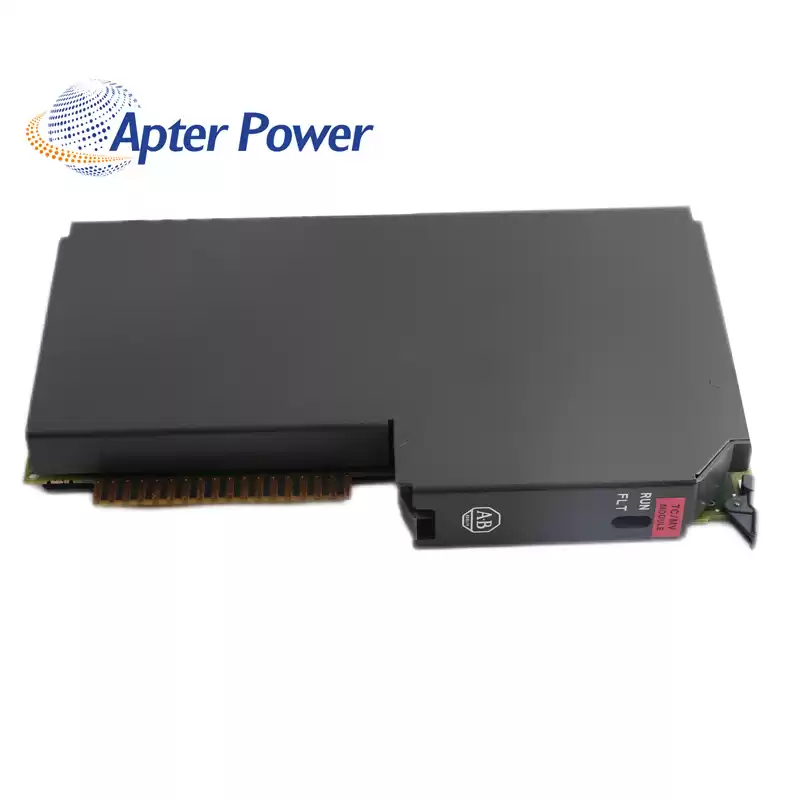

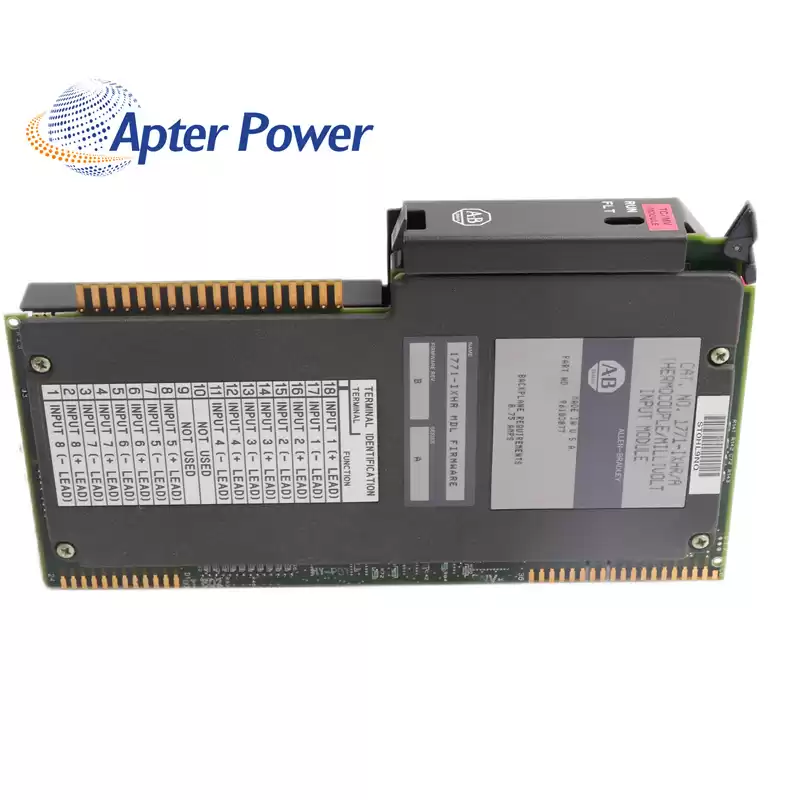

1771-IXHR Analog Input Module

Availability: More than 18 in stock


  • Brand/Manufature
  • Weight0.68KG
  • Dimension3cmx14cmx25.5cm
  • Conditionnew and original
  • Lead Timein stock
  • Certificatecoo/test report/warranty letter

Technical Specifications for 1771-IXHR

Manufacturer

Automation


Condition

100% New Original

Brand

Backplane Current

1.0 Amperes

Part Number/Catalog No.

1771-IXHR

Mounting

Rack Mountable

Module Type

Analog Input Module

Input Voltage

380-450VAC

Manufacture Year

2021

Voltage Rating

16 VDC

Product Package

Original Package

UPC

10612598114754


About 1771-IXHR

The 1771-IXHR module has 8 floating differential inputs for thermocouple or millivolt input ranges which includes types B, E, J, K, T, R, and S thermocouples and ±100 millivolts. Either 8 of the same type of inputs are allowed or 4 inputs each of 2 different types. The 1771-IXHR includes cold junction compensation with a range of 0-60°C and ±0.5°C accuracy. It has a selectable temperature scale of °C or °F with a temperature resolution of 0.1°C or 0.1°F and millivolt resolution of 1µV.


The 1771-IXHR has a maximum power dissipation of 4.255W and maximum thermal dissipation of 14.5 BTU/hr. Keying bands must be put between pins 20-22 and pins 24-26 to accept only this module.The 1771-IXHR module has high and low-temperature alarms that are selectable by the user. It contains a green RUN indicator and a red FLT indicator at the front panel for power and fault status. At power-up, it performs self-diagnostics and reports status.


Warranty :       We offer one year warranty for all original new product.


Delivery   :       We will choose the DHL/FEDEX/TNT/UPS


Payment   :      100% advance payment bank wire transfer


Returns    :      If the product has quality problems within one year from the date of receiving the product,  you can send it back to replace.
