Technical Specifications for 1771-NBSC
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage Category
|
85-264 VAC
|
|
Part Number/Catalog No.
|
1771-NBSC
|
Backplane Current
|
3.0 Amperes
|
|
Module Type
|
Analog I/O Module
|
Signal Delay
|
50 ms
|
|
Manufacture Year
|
2021
|
Nominal Voltage
|
120 / 240 VAC
|
|
Product Package
|
Original Package
|
UPC
|
10612598116092
|

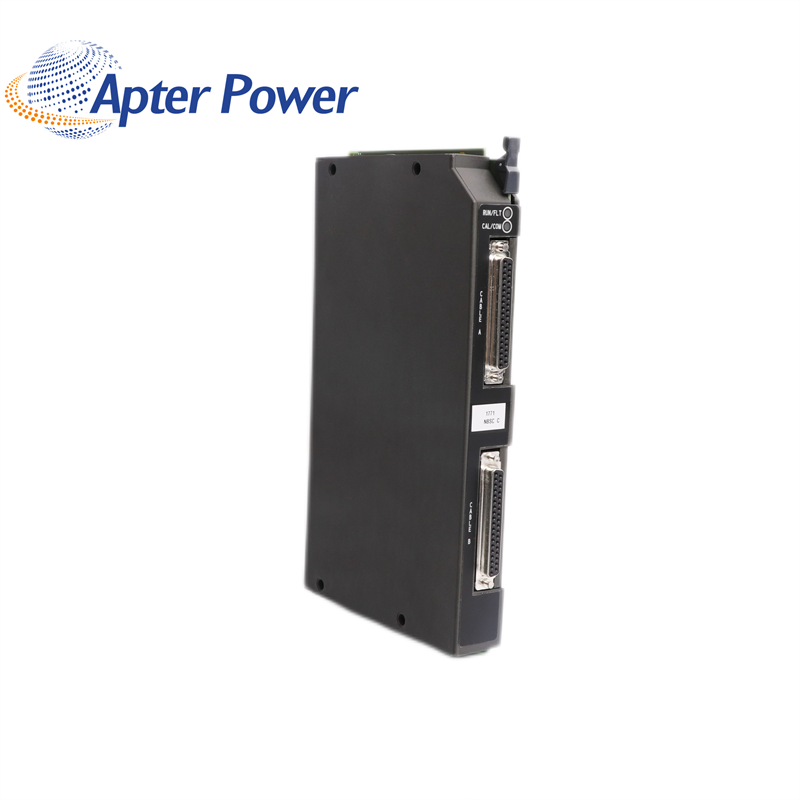

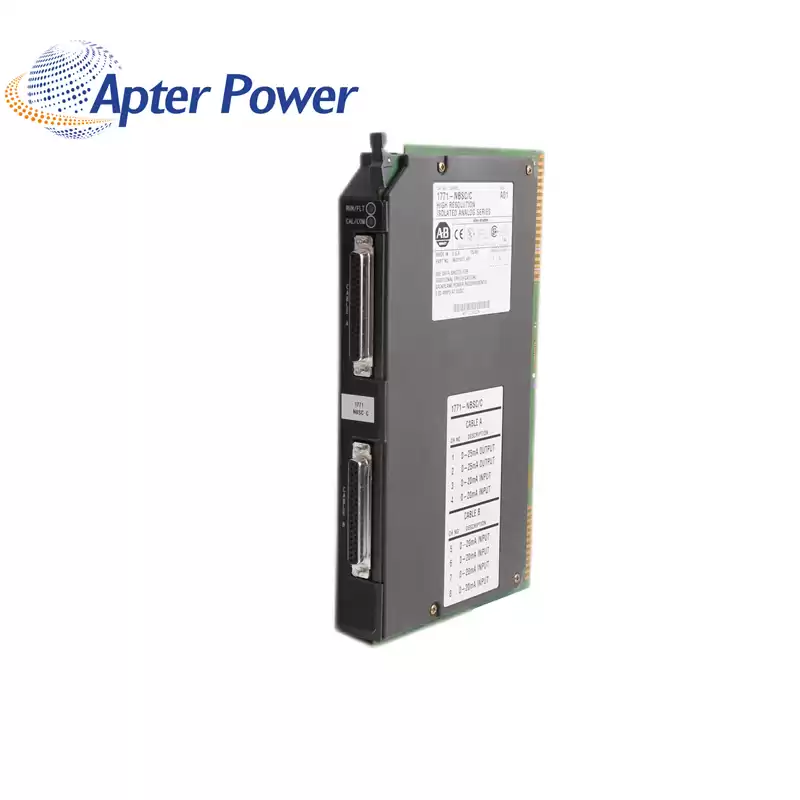

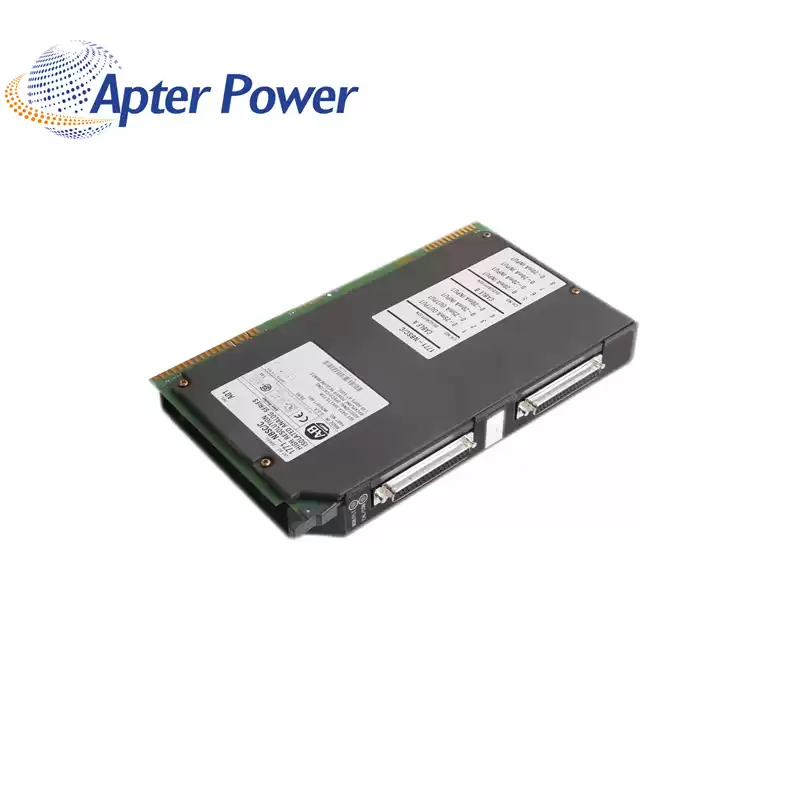

About 1771-NBSC
|
The 1771-NBSC should be used with the RTP-4 device. Power should be disconnected before removing or installing the module in the I/O chassis. The 1771-NBSC can perform optimally in industrial environments where the ambient temperature range is 0-60°C (32-140°F) at 5-95% relative humidity.
The 1771-NBSC module requires 5s to detect open inputs. It offers a 50/60 dB minimum normal mode rejection and the typical common mode rejection is 150 dB. The offset drift and the gain drift are ±200nA/°C and ±95 ppm/°C respectively. The 1771-NBSC’s range of input bandwidth is 9Hz and the calibration values are 1.000mA/21.000mA. The under range and over range thresholds are 3.2mA and 21mA respectively.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
