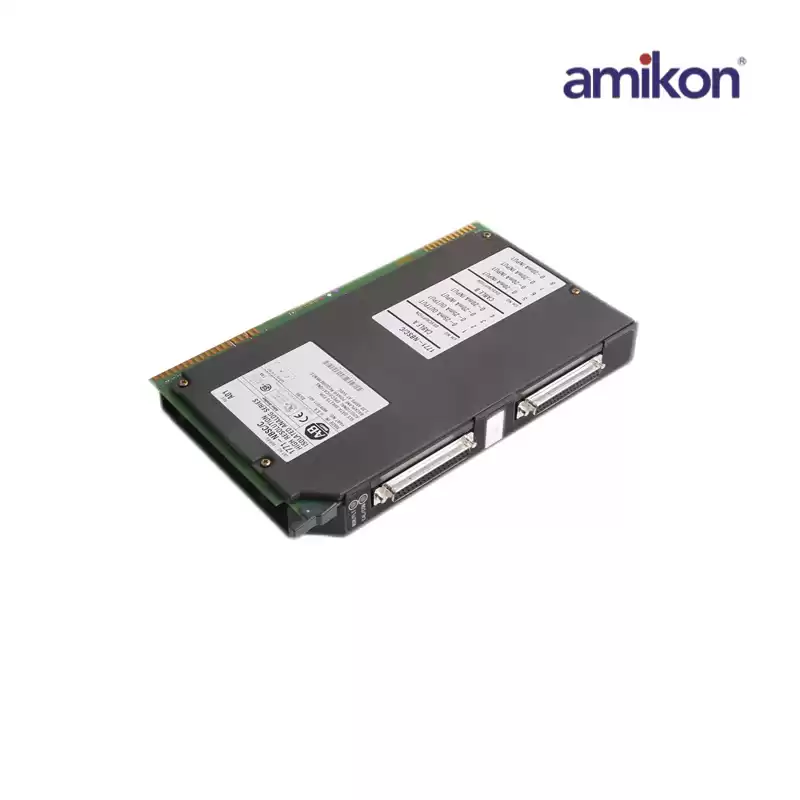

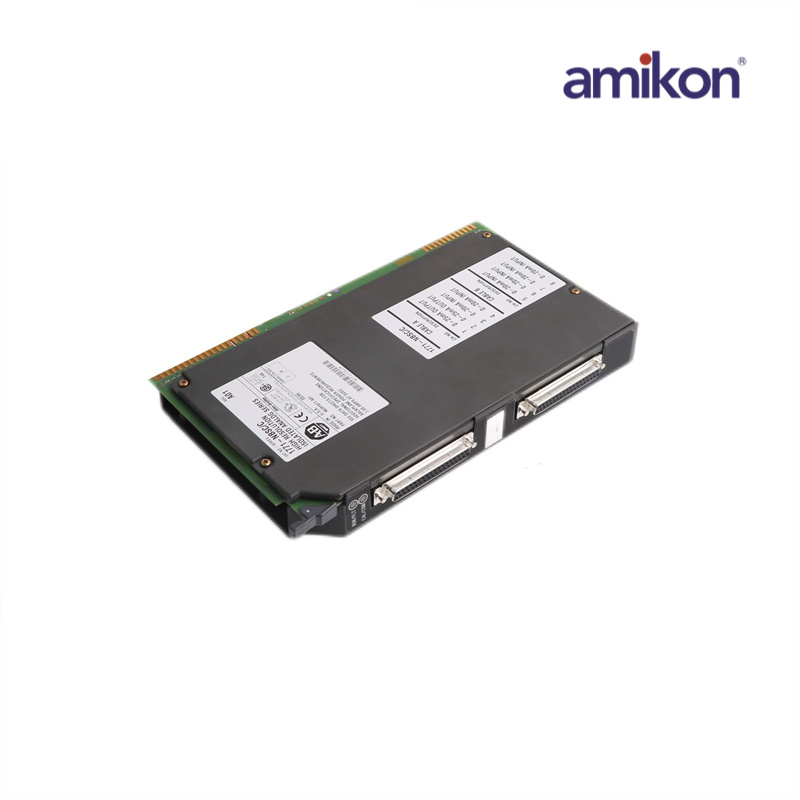

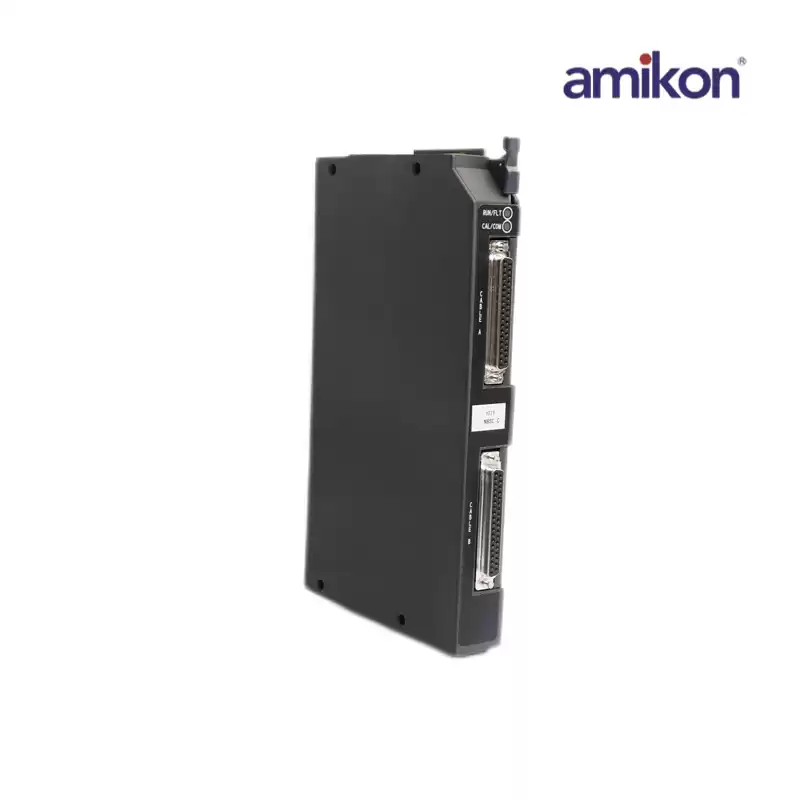

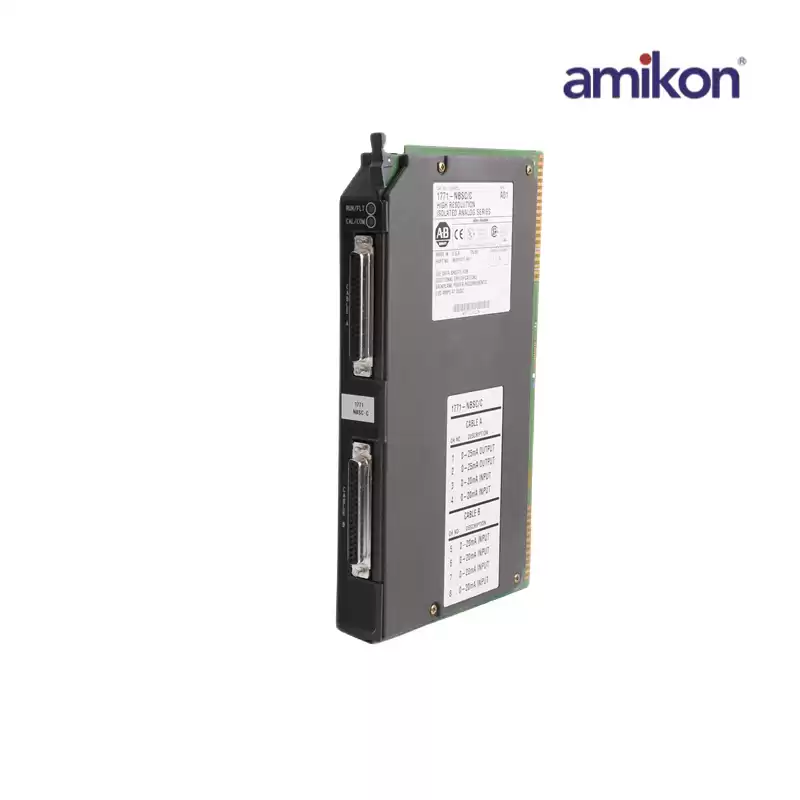

1771-NBSC
|
|
Dimensions ：
|
3cmx15.5cmx25.5cm
|
Weight：
|
0.66KG
|
|
The 1771-NBSC should be used with the RTP-4 device. Power should be disconnected before removing or installing the module in the I/O chassis. The 1771-NBSC can perform optimally in industrial environments where the ambient temperature range is 0-60°C (32-140°F) at 5-95% relative humidity.
The 1771-NBSC module requires 5s to detect open inputs. It offers a 50/60 dB minimum normal mode rejection and the typical common mode rejection is 150 dB. The offset drift and the gain drift are ±200nA/°C and ±95 ppm/°C respectively. The 1771-NBSC’s range of input bandwidth is 9Hz and the calibration values are 1.000mA/21.000mA. The under range and over range thresholds are 3.2mA and 21mA respectively.
|
|
