Technical Specifications for 1771-NOC
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
1.0 Amperes
|
|
Part Number/Catalog No.
|
1771-NOC
|
Output Resolution
|
0-25 Miliamperes
|
|
Module Type
|
Analog Output Module
|
Input Voltage
|
380-450VAC
|
|
Manufacture Year
|
2021
|
Signal Delay
|
50 ms
|
|
Product Package
|
Original Package
|
UPC
|
10612598116697
|

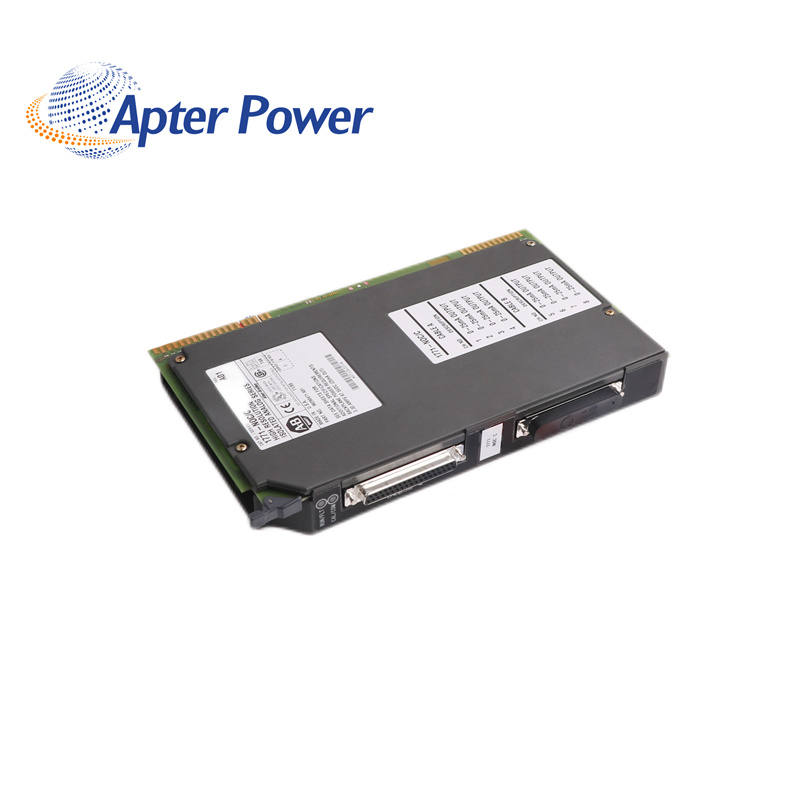

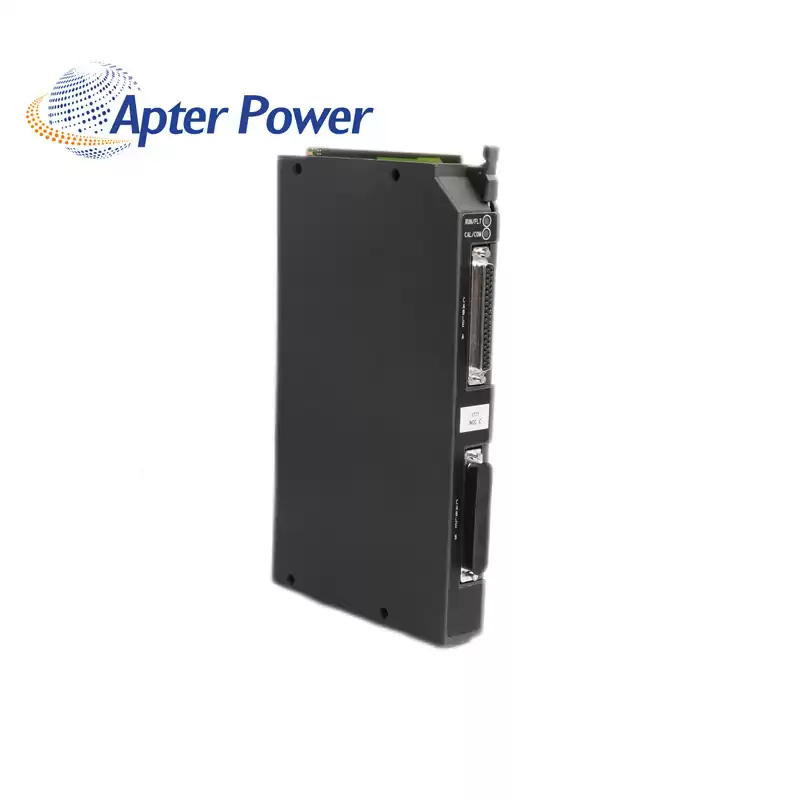

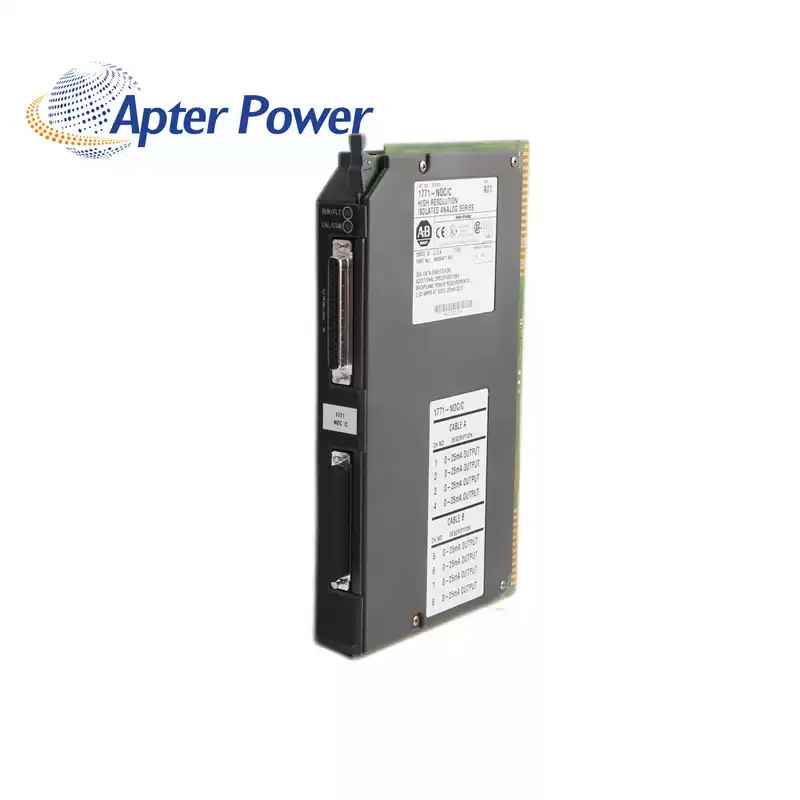

About 1771-NOC
|
The 1771-NOC has a power dissipation of 5.5 Watts at 5 Volts. The operating temperature of this unit ranges from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), and its storage temperature ranges from -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). Its relative humidity is usually between 5% and 95% without condensation and it has a maximum backplane current of 1.1 A. Its output range fluctuates between 0 and 25 mA, and the output impedance of this module is > 1 MΩ while its output overvoltage protection is 140 Volts AC RMS continuous.
The 1771-NOC has 16-bit input and 14-bit output resolution. This module has 0.01% typical accuracy based on 65,000 count capability over Full-Scale Range (FSR). Equipped with programmable reset values for outputs, it selects the best reset value specified by the application requirements (each channel is configured independently).
|
