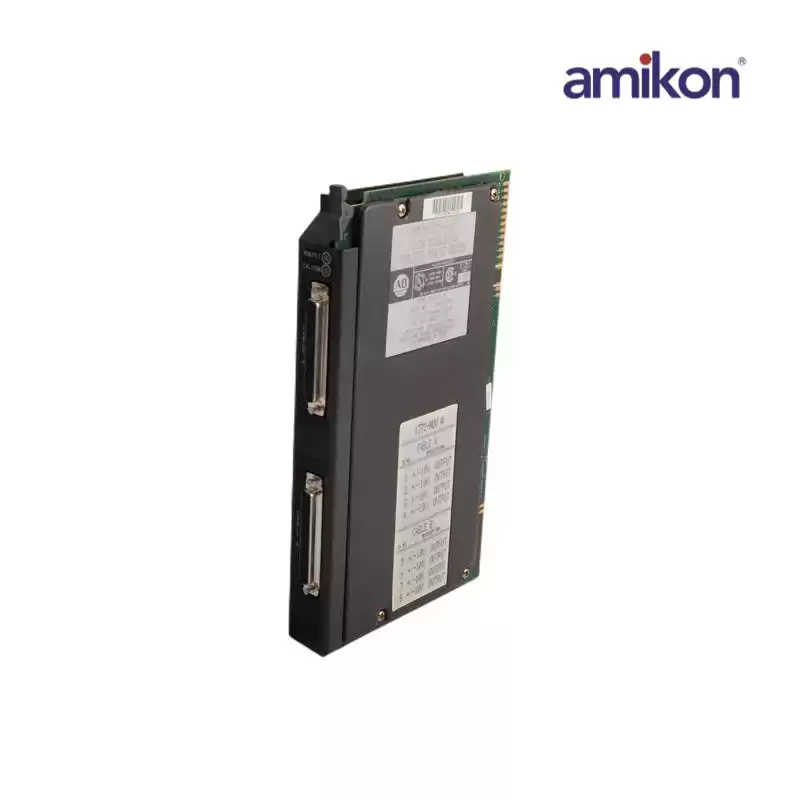

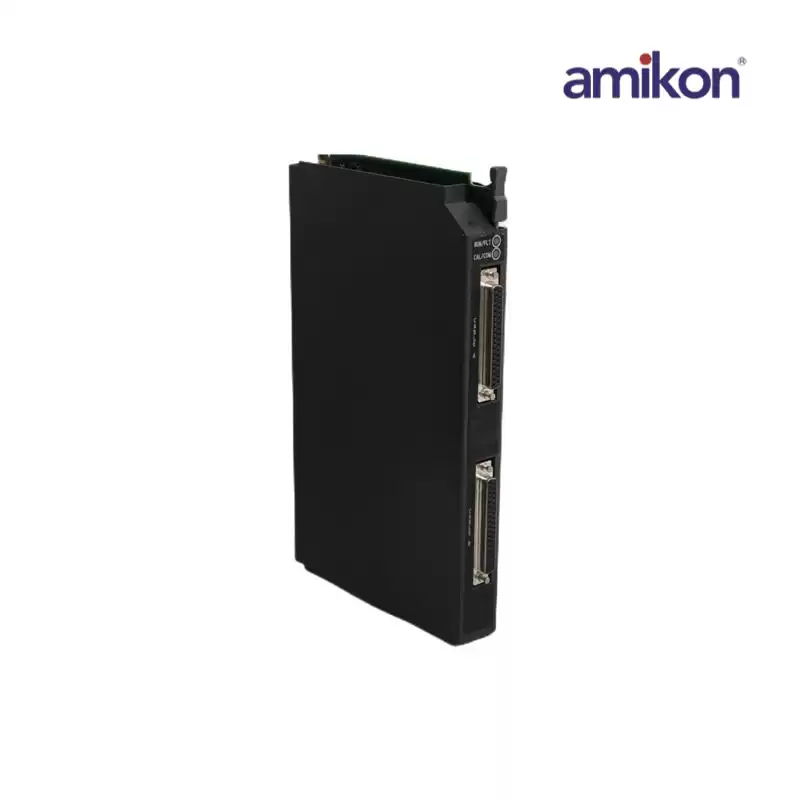

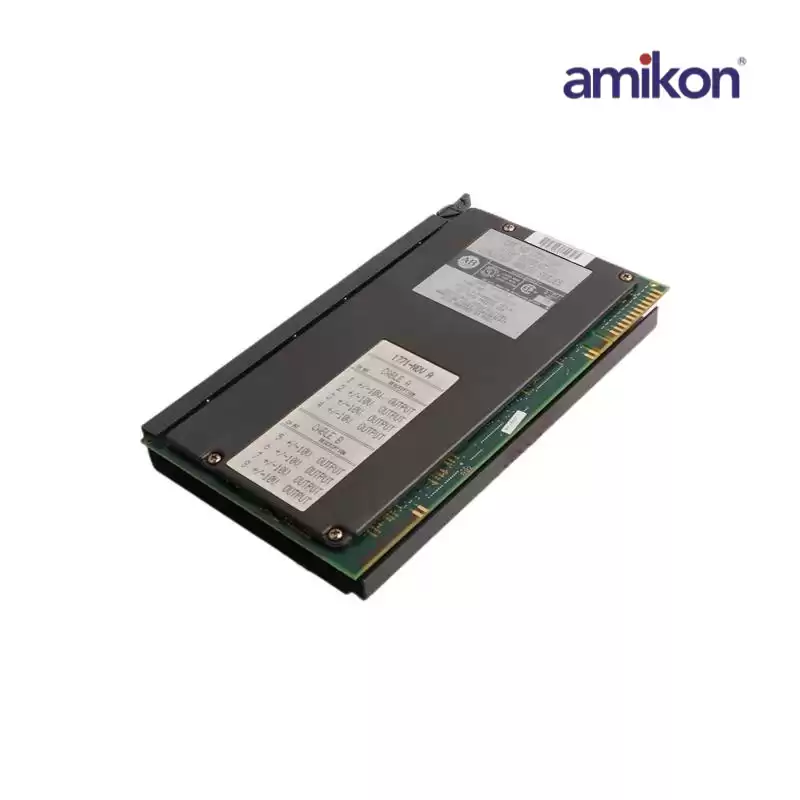

1771-NOV
|
|
Dimensions ：
|
15.2cmx5.1cmx27.9cm
|
Weight：
|
0.8KG
|
|
The 1771-NOV is a High-resolution Isolated Analog Module. With an output resolution of 1.32 milliVolts/bit, this module gives 1000 Volt isolation between channels.The channel to channel isolation of this module provides the connection of various resources to the same module without creating ground loops or damaging components due to excessive voltage differences between channels.
The 1771-NOV has open input and open loop detection features; it easily detects open thermocouples, RTDs, voltage inputs, or current loops. Additionally, the 1771-NOV is equipped with simplified calibration features.The output range of this module is +10.4 Volts into an open circuit, the output impedance is 1 Ω, and the output overvoltage protection is 140 Volts AC RMS continuous.
|
|
