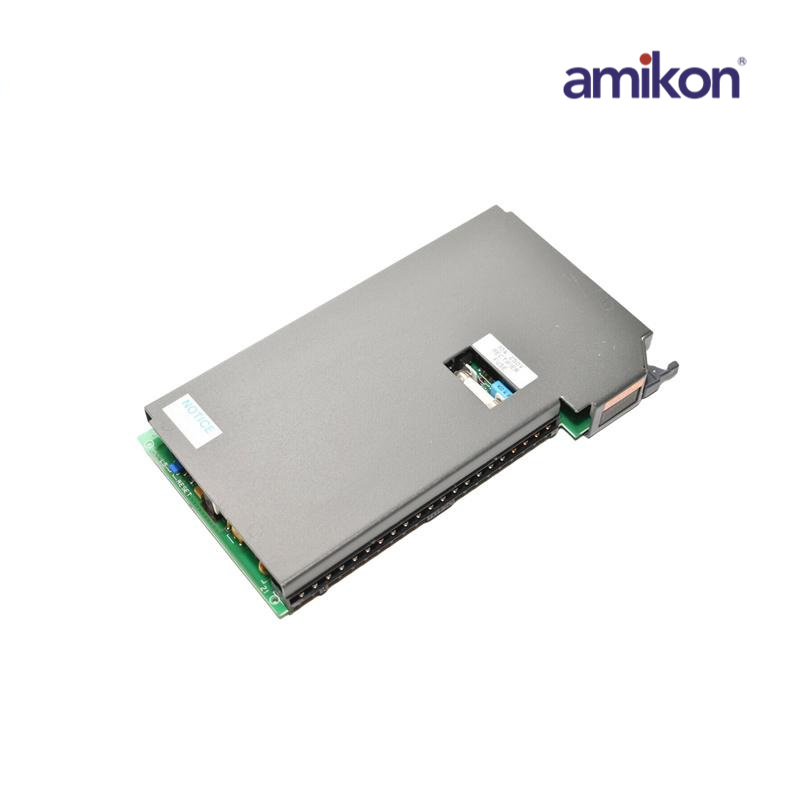

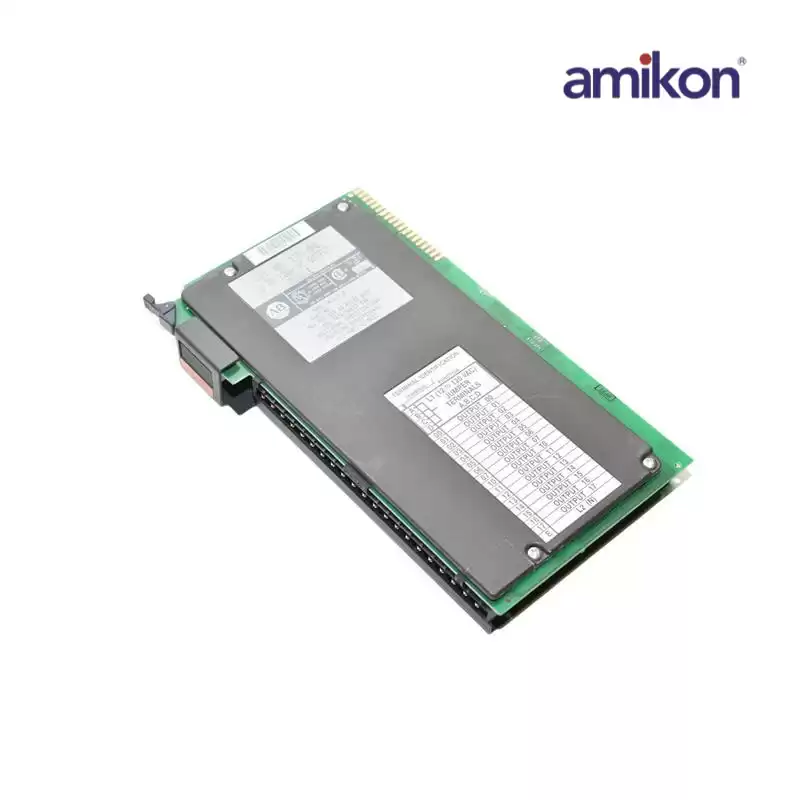

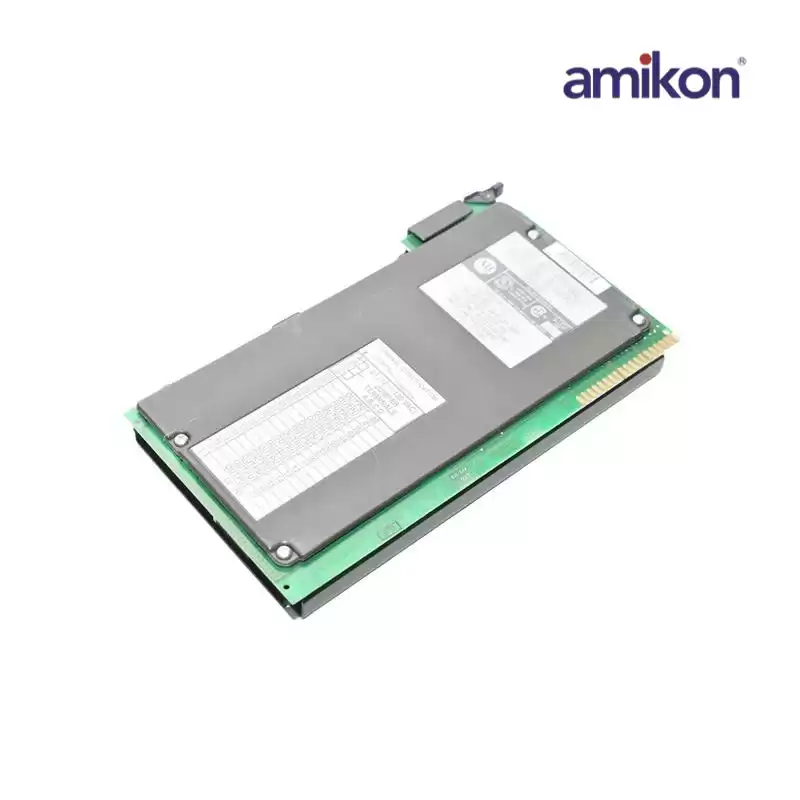

1771-OAD 12 To120 Volts AC Output Module
|
|
Dimensions ：
|
27cmx3.5cmx14.2cm
|
Weight：
|
0.62kg
|
|
1771-OAD PLC-5 Digital Output Module, 120V AC, 16 Outputs; Output Current Rating: 2A per output, not to exceed 8A per module; Standard Field Wiring Arm: 1771-WH, Optional Field Wiring Arm: 1771-WHF (fused); Compatible Chassis: 1771-A1B through -A4B or later I/O chassis, 1771-AM1, -AM2 chassis
|
|
he 1771-OAD module receives power that is supplied through an 1771 I/O chassis backplane from the chassis power supply. It requires 295 mA of this supply output current. Add this to the requirements of all the other modules on the I/O chassis to prevent overloading the backplane chassis and/or the power supply casing.
The 1771-OAD module is compatible with some chassis, excluding the 1771-A1, 1771-A2, and the 1771-A4. The output range of this module is from 10 to 138 Volts AC at a frequency of 47 to 63 Hertz, and its output current rating is 2 Amps.
|
