Technical Specifications for 1771-OAN
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage Category
|
85-264 VAC
|
|
Part Number/Catalog No.
|
1771-OAN
|
Backplane Current
|
800 mA
|
|
Module Type
|
Digital Output Module
|
Max Current
|
8A
|
|
Manufacture Year
|
2021
|
Nominal Voltage
|
120 / 240 VAC
|
|
Product Package
|
Original Package
|
UPC
|
10612598171092
|

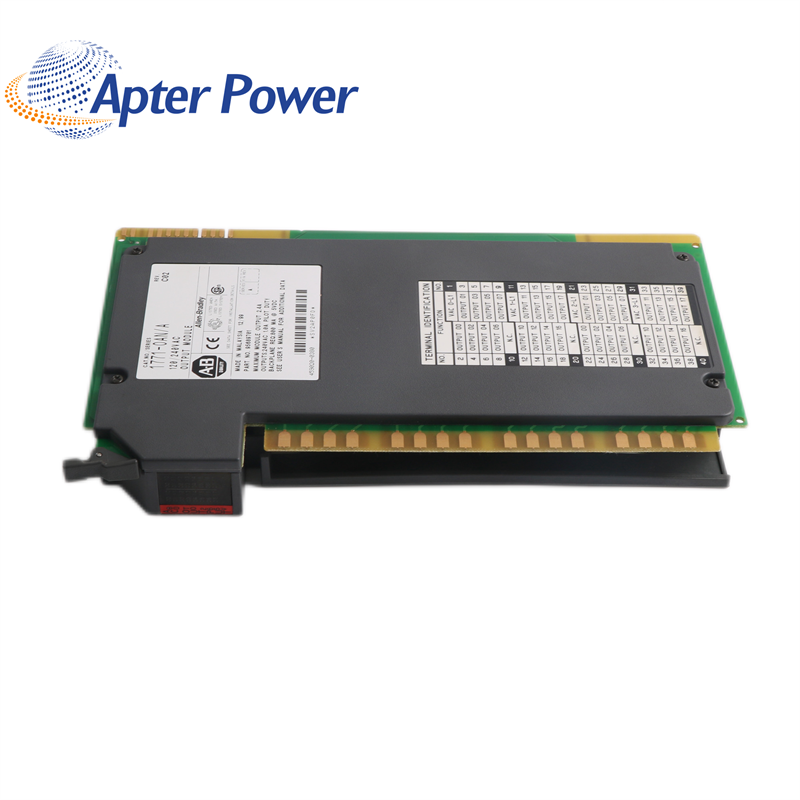

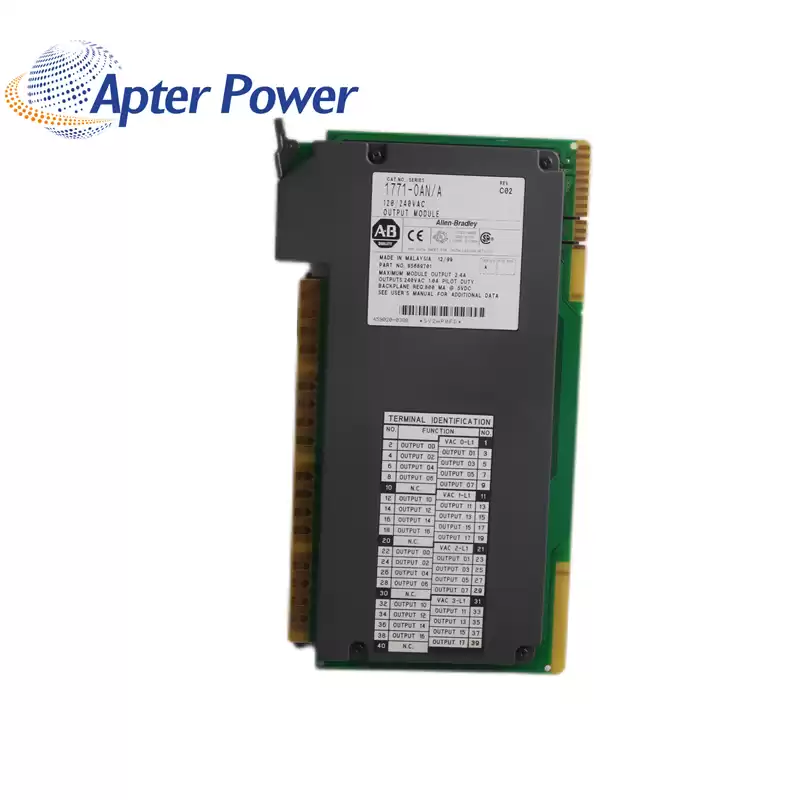

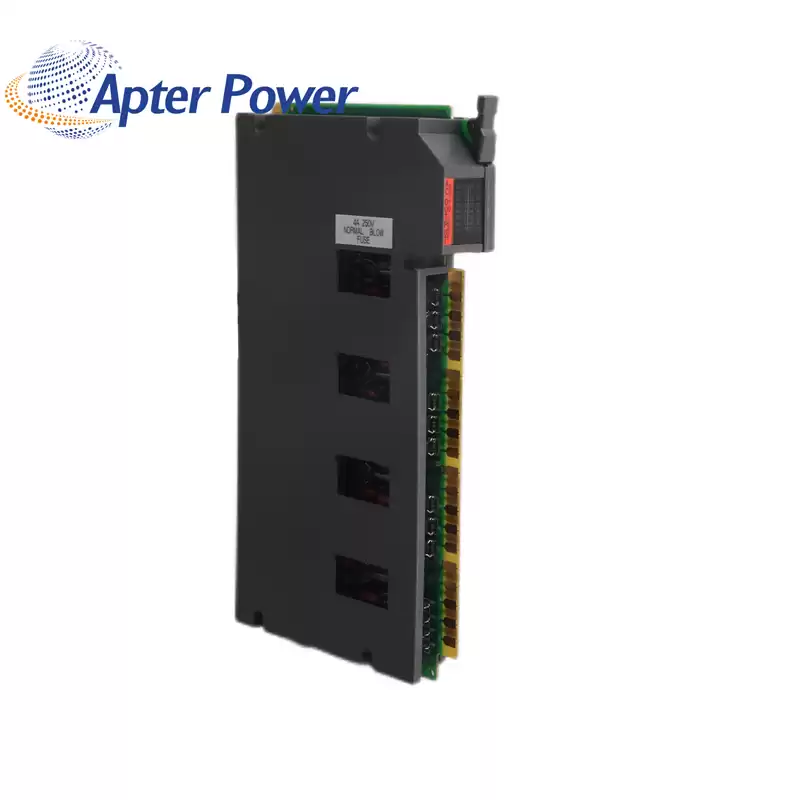

About 1771-OAN
|
The 1771-OAN is a PLC5 discrete output module that is compatible for installation with any 1771 I/O chassis except 1771-A1, 1771-A2, 1771-A4. This module has Thirty-Two (32) programmable output channels compatible for voltage category of 120/240VAC.
The AC Output Module 1771-OAN comes with 32 outputs and a voltage range of 80 to 265 Volts AC. The operating frequency of this module is 47 to 63 Hertz while the maximum surge current at 1 Hertz and .5 Hertz for 25 milliseconds lies at 10 A. This unit’s minimum load current is 1.0 mA per output; the maximum on state voltage drop is 1.5 Volts AC RMS at 1 A, while the maximum off state leakage current is 2.3 mA per output at 230 Volts AC, and 1.2 mA per output at 120 Volts AC.
The 1771-OAN is an discrete output module that is compatible with the PLC5 product family. This module is a High Density output module with Thirty-Two (32) channels having 1.0A per channel, 2.0A per group and 8.0 per module.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
