Technical Specifications for 1771-OBD
|
Manufacturer
|
Automation
|
|
Configuration
|
Standard
|
|
Brand
|
|
Input Current
|
1100 milliamps at 5.1 Volts DC
|
|
Part Number/Catalog No.
|
1771-OBD
|
Thermal Dissipation
|
9.6 BTU per hour
|
|
Series
|
ControlLogix
|
Power Dissipation
|
4.3 Watts
|
|
Module Type
|
Digital Output Module
|
Slot width
|
1
|
|
Maximum Nodes
|
89
|
Weight
|
0.57 pounds (0.26 kilograms)
|
|
Maximum Connections
|
131
|
UPC
|
106624682912712
|

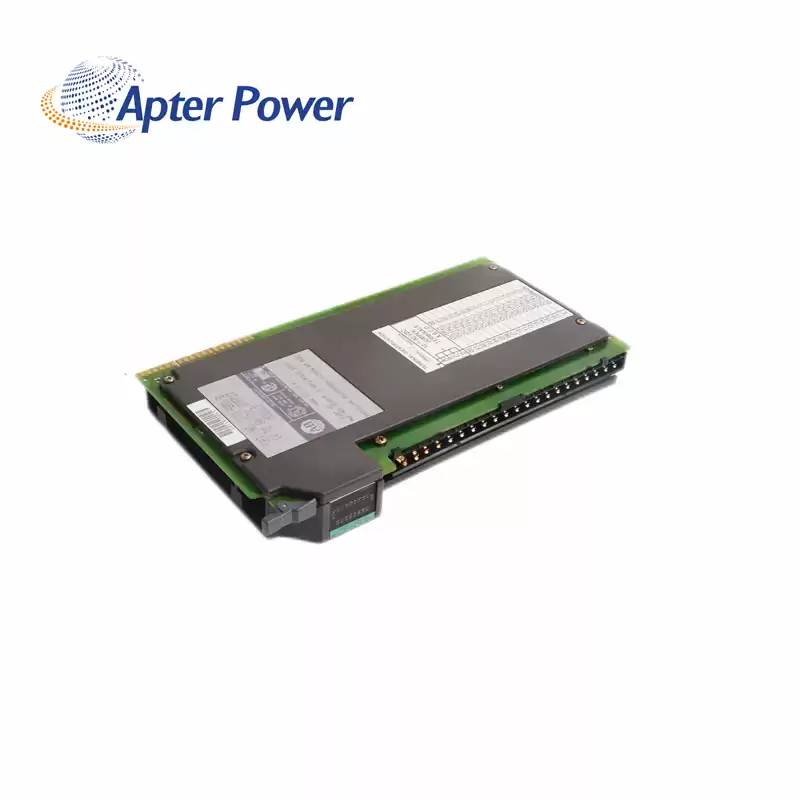

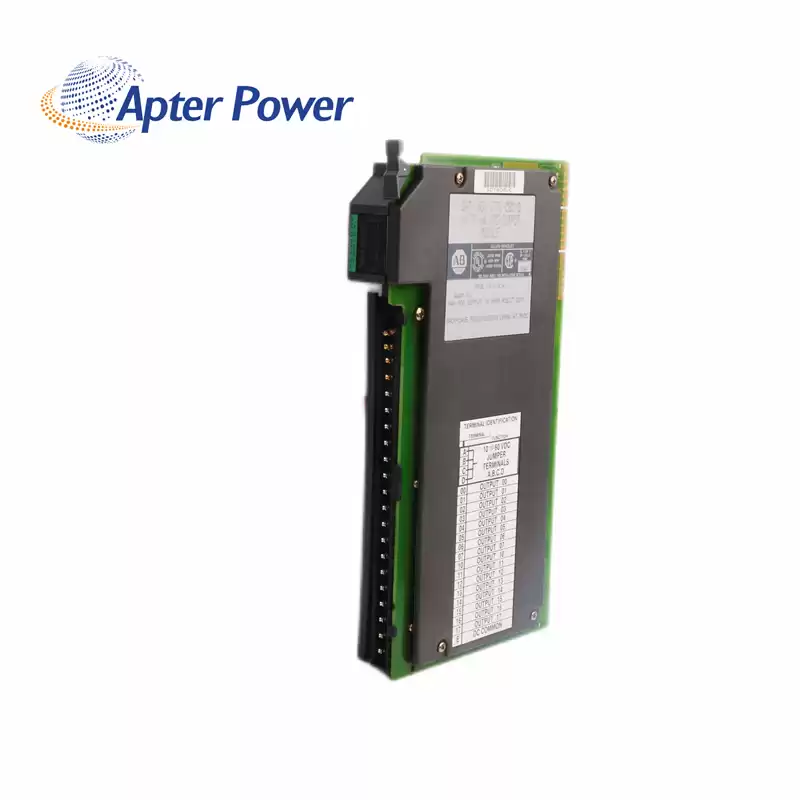

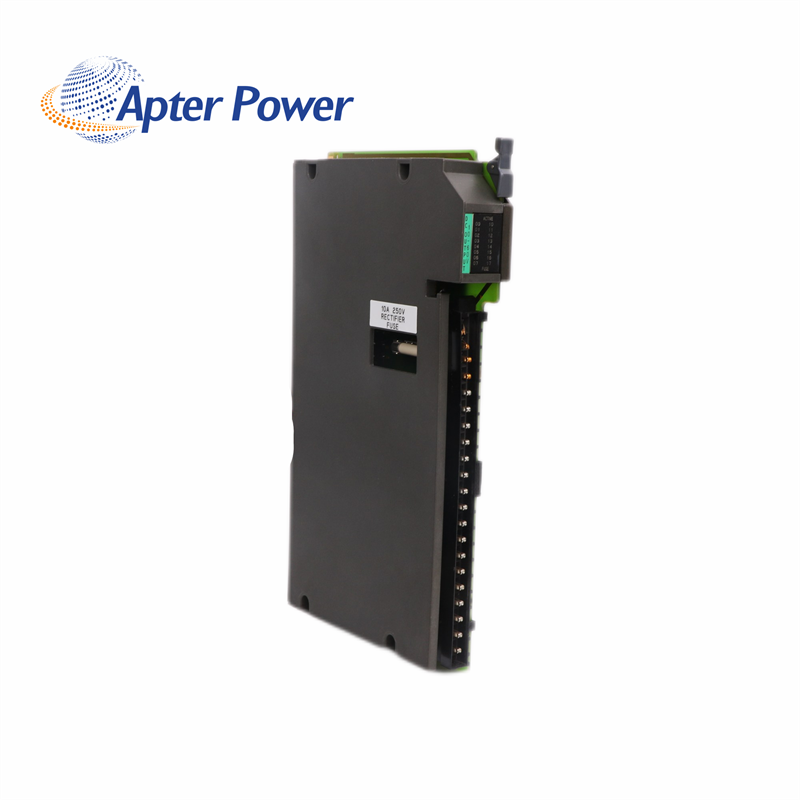

About 1771-OBD
|
The 1771-OBD is a Sixteen (16) channel, non-isolated output module that is part of the 1771 Product bulletin. This module is especially compatible for use with the PLC5 product family, typically used for energizing DC powered electrical loads such as pilot lamps, relay coils, solenoid actuated devices and other devices. It has an output voltage range of 10-60 VDC with nominal voltage output of 48 VDC.
The 1771-OBD’s output channels are rated 2 A, resistive, not-exceeding 8 A per module and 0.2 A per pilot duty output. Each channel has minimum Surge current rating of 4 A per output for 10 ms, repeatable every 2 s and maximum of 25 A per output for 10 ms, repeatable every 2 s while the module’s minimum load current is 2.5 mA.
|
