The Allen Bradley 1771-OBD is a DC output module that has 16 outputs. It is located at 1771-A1B through 1771-A4B I/O chassis, and its user supply voltage can range from 10 to 60 Volts of DC power.
With a current rating of 2 A per output resistive and 0.2 A per output pilot duty, the nominal on state output voltage of this module is 48 Volts DC. It has a maximum surge current of 4 A per output for 10 milliseconds, which is repeatable every 2 seconds.
This module has a minimal load current of 2.5 mA; its maximum on state voltage drop is 1.5 Volts DC while its maximum off state leakage current is .5 mA.
The maximum Power dissipation of this module is 15.6 W; its maximum thermal dissipation is 53.3 BTU/hour, and its maximum backplane current is 400 mA at 5 Volts DC. Connecting or disconnecting a cable without first cutting power from the sides of the field can cause an electrical arc to occur.
|

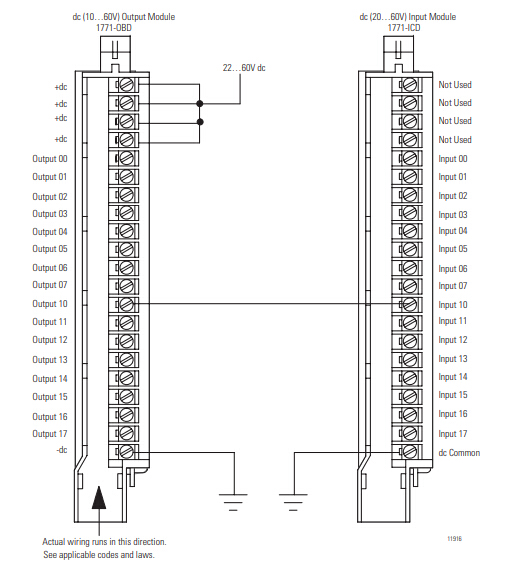

1771-OBD
|
|
|
|
|
|
|
|
Outputs per module
|
|
16 nonisolated
|
|
|
|
|
|
Module location
|
|
1771-A1B through 1771-A4B I/O chassis (Do not use this module
|
|
|
|
with 1771-A4 I/O chassis)
|
|
|
|
|
|
User supply voltage
|
|
10…60V dc
|
|
|
|
|
|
Voltage, on-state output, nom
|
|
48V dc
|
|
|
|
|
|
Current rating (see Derating Curve)
|
|
2 A per output resistive, not to exceed 8 A per module
|
|
|
|
0.2 A per output pilot duty
|
|
|
|
|
|
Surge current, max
|
|
4 A per output for 10 ms, repeatable every 2 s
|
|
|
|
25 A per output for 10 ms, repeatable every 2 s
|
|
|
|
|
|
Load current, min
|
|
2.5 mA
|
|
|
|
|
|
On-state voltage drop (at rated
|
|
1.5V dc
|
|
current), max
|
|
|
|
|
|
|
|
Off-state leakage current, max
|
|
0.5 mA
|
Allen Bradley 1771-OBD
1771-OBD | Allen Bradley | Digital Output Module
Email:sales3@amikon.cn
Part Number:
|
1771-OBD
|
|
Number of Outputs:
|
16 Outputs
|
|
Module Type:
|
Digital DC Output Module
|
|
Voltage Category:
|
10-60 Volts DC, Source
|
|
DC Operating Voltage:
|
10-60 Volts
|
