1771-OFE2/B/AB IN STOCK& READY FOR SHIP
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 1771-OFE2/B

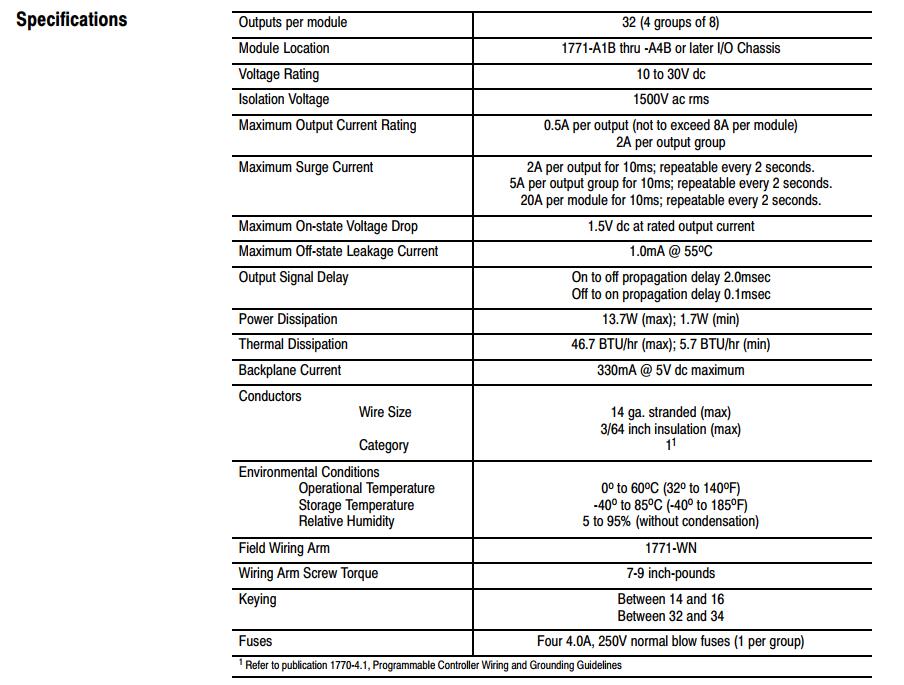

The Allen-Bradley / Rockwell Automation 1771-OFE2 Analog Output houses 4
isolated (1000V) differential outputs. Voltage range of 1771OFE2 is 1...5V DC,
0...10V DC, -+10V DC. No external power is required. Resolution is 12 bits and
channel update is 8.0ms to 4 channels (BCD); 1.6ms to 4 channels (natural binary).
Wiring arm is the 1771-WC. Date format for 1771-OFE2 is natural binary or BCD
scaled to -+9999. Current range is 4...20mA and backplane current load is 1.5A.
The output module contains components which can be damaged by
electrostatic discharge. The module is shipped in an electrostatic shielded
bag for protection. Follow the handling procedures outlined below to guard
against damage to your module.
Touch a grounded object to discharge yourself before handling the
module.
Do not touch the backplane connector or connector pins.
If you configure or replace internal components, do not touch other
circuit components inside the module. If available, use a static-safe
work station.
When not in use, keep the module in its static-free shield bag.
Keying the I/O Chassis
Use the plastic keying bands, shipped with each I/O chassis, to key your
I/O slots to accept only this type of module. Place the keying bands on the
chassis backplane between:
14 and 16
32 and 34
Slots on the rear edge of the circuit board are matched to these slots to
allow insertion of this type of module. You can key any connector in an I/O
chassis to receive this module except for the leftmost connector reserved
for adapter or processor modules.
Inserting the Module Into the Chassis
1. Position the module so that the circuit board on the rear of the module
lines up with the top and bottom card guides in the chassis.
2. Slide the module into the chassis.
3. Press firmly to seat the module in the chassis backplane connector.
4. Swing the module locking latch down into place over the front edge
of the module.
Connecting Wiring to the Module
You make connections to the module through the field wiring arm cat. no.
1771-WN. The arm pivots on the I/O chassis to connect with terminals on
the front of the module and acts as a terminal strip. The wiring arm allows
the module to be removed from the chassis without disconnecting wiring.
1. Make certain all power is removed from the module before making
wiring connections.
2. Swing the wiring arm up into position on the front of the module. The
locking tab on the module will secure it into place.
3. Make your connections to the field wiring arm as shown in Figure 1.
(Use the label on the front of the wiring arm to identify your wiring.)
