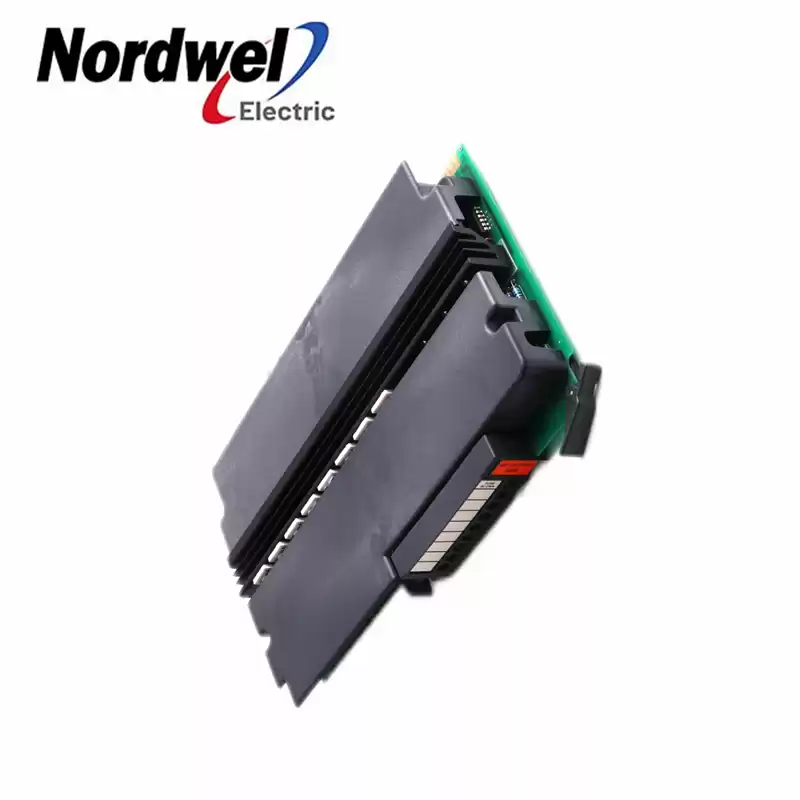

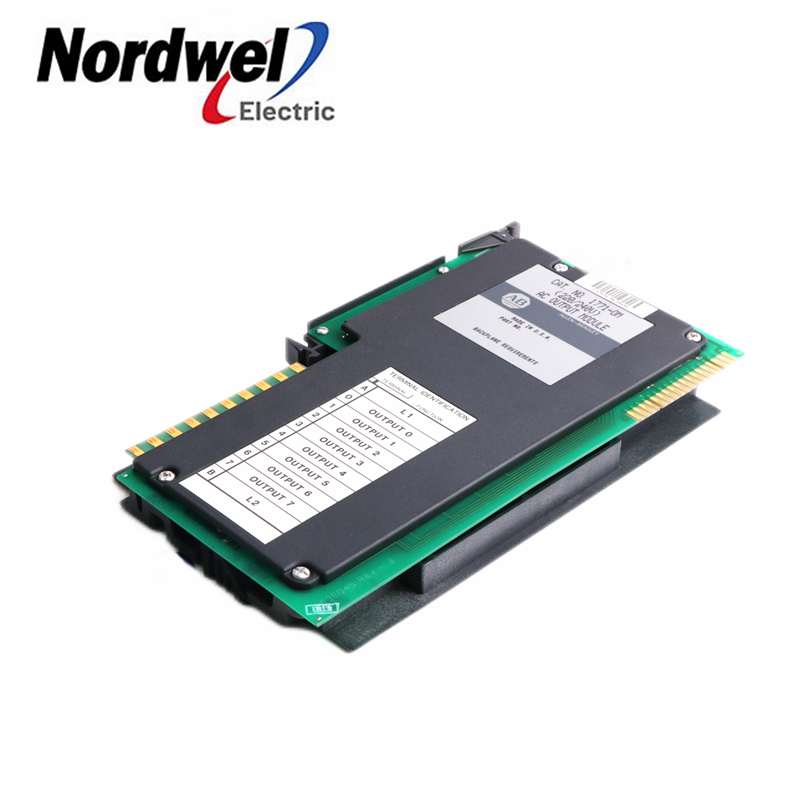

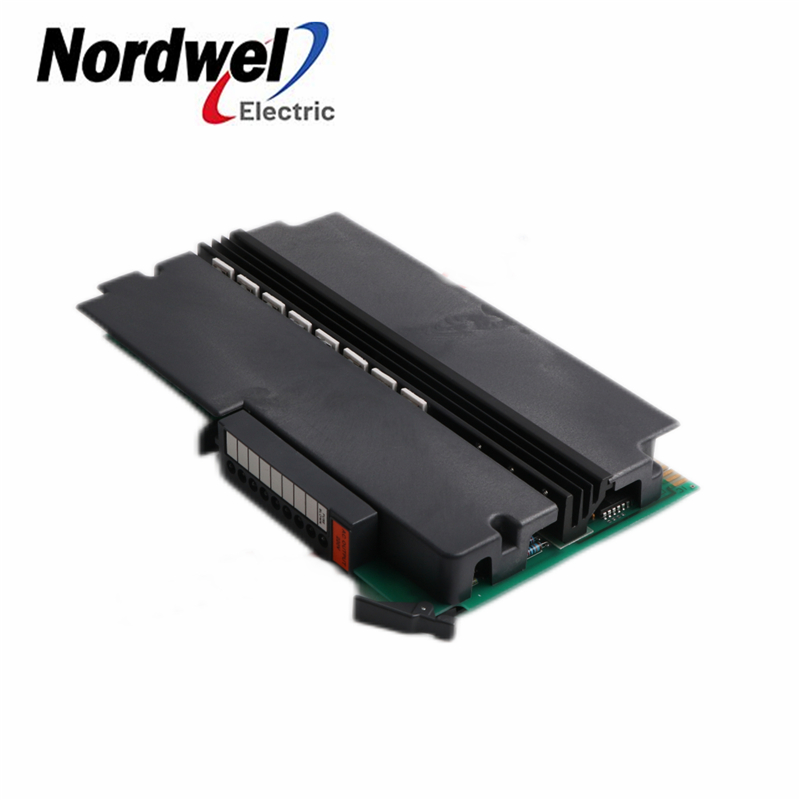

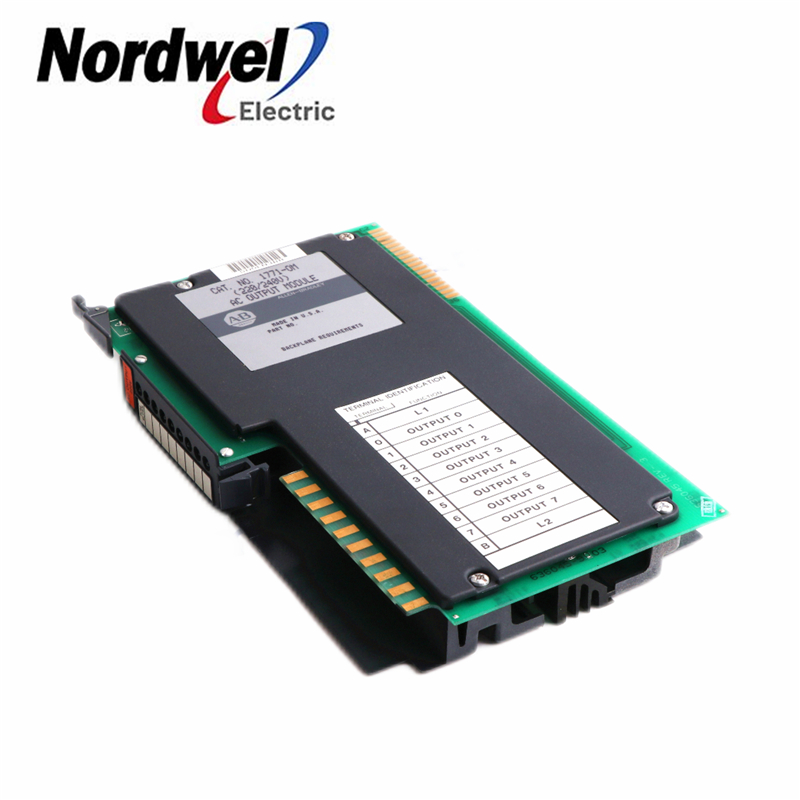

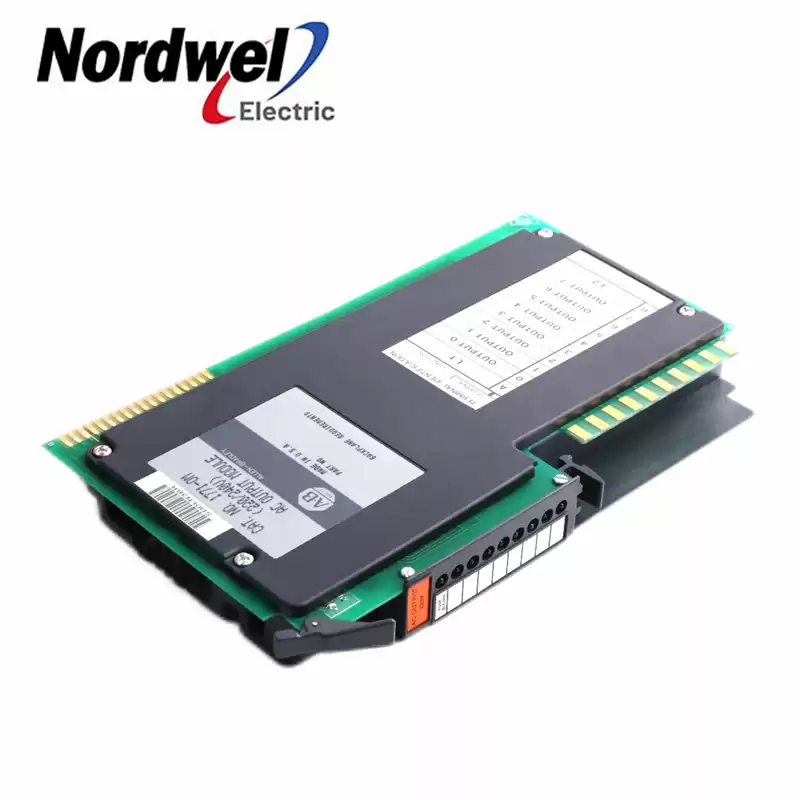

The 1771-OM output module is an / Automation digital AC output module from the PLC
5 controller series. It operates with 225 milliamps of backplane current and with 184 to 225 Volts AC
operating voltage. The voltage category rating for the 1771-OM digital AC output module is 220/240 Volts AC.
There are 8 total output points in this output module. The 1771-OM digital AC output module can handle 2 Amps
of maximum current per output channel and up to 6 Amps of maximum current per module.
Technical Specifications for 1771-OM
Manufacturer Automation
Brand
Part Number/Catalog No. 1771-OM
Module Type Digital AC Output Module
Number of Outputs 8 Outputs
Voltage Category 220 Volts AC
AC Operating Voltage 184-250 Volts
Backplane Current 225 Miliamperes
Max Continuous Current Per Output 2 Amperes
Max Current Per Module 6 Amperes
Wiring Arm 1771-WA
Model Status Earlier Model
Coating Conformal Coat
Typical AC Signal Delay (Off) 45 (+/- 15) ms
Typical DC Signal Delay (Off) 50 ms
Wiring Arm 1771-WH
Mounting Rack Mountable
