1771-OW16/AB IN STOCK& READY FOR SHIP


Allen Bradley PLC 5 Digital DC Output Module, 16 Outputs, 10-32 Volts DC Operating Voltage, 400 Miliamperes Backplane Current










1771-OW16/AB IN STOCK& READY FOR SHIP


Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450



Brand Name                 AB


Product reference      1771-OW16

The 1771-OW16 digital contact output module houses 16 (2 sets of 8; 8 N.O. and 8 selectable) outputs. Operating voltage for 1771OW16 is 24...250V AC, 24...150V DC. Applications are isolated and no leakage current. Backplane current load is 1300mA. Wiring arm is the 1771-WN.

1785 PLC-5 Programmable Controller: The Foundation of Control Architecture

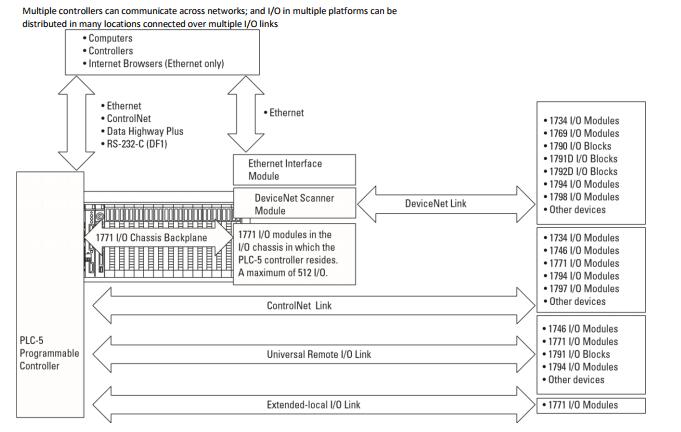

The PLC-5 programmable controller stands at the center of a control architecture that brings together existing and future systems by means of networks such as EtherNet/IP, ControlNet and DeviceNet, and offers connectivity among SLC 500, ControlLogix, and MicroLogix controllers. Because they include embedded network connections, PLC-5 controllers enable your control architecture to be flexible enough to include cost- effective connections to a wide range of devices.


PLC-5 System Overview

A PLC-5/1771 control system, at minimum, consists of a programmable controller and I/O modules in a single 1771 chassis with a power supply. You choose the controller with the on-board communication ports you need.



In the typical configuration illustration, a ControlNet port on the controller interfaces the processor to the ControlNet link. In each of the two chassis remote from the controller, a 1771-ACN15 I/O Adapter Module provides I/O modules in those chassis with an interface to the ControlNet link. In this configuration, the PLC-5 controller monitors/controls the I/O in its local I/O chassis as well as the I/O in the remote locations.

Plug a 1771 power supply module into an I/O module slot, or connect a standalone 1771 power supply into the left end of each chassis. Depending on the communication ports available on your particular PLC control system, you can select operator interfaces that are compatible with those particular ports. Lay Out the System Lay out the system by determining the network configuration and the placement of components in each location. Decide at this time whether each location will have its own controller. Place each controller’s I/O on an isolated network to maximize the performance and to more easily accommodate future network or 4 Introduction Publication 1785-SG001B-EN-P - June 2006 system configuration changes. If you plan to share I/O, make sure the I/O is on a network that each controller can access. Assume that Network A and Network B both require a controller and its I/O. Both controllers interact with time-critical information.
