1771-P2
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1771-P2 has a minimum voltage of 92V and a normal input range of 98-132V AC when using a 120V AC operation. When using a 220-240V AC, the minimum voltage is 184V and the normal input range is 196-250V AC. The nominal input voltages/currents of this module are 0.75 A at 120V AC and 0.38 A at 220-240V AC. At full load, it has a real input power of 65 W and an apparent input power of 90 VA. It also has a 50-60 Hz frequency range and a maximum output current of 6.5 A at 5V DC.

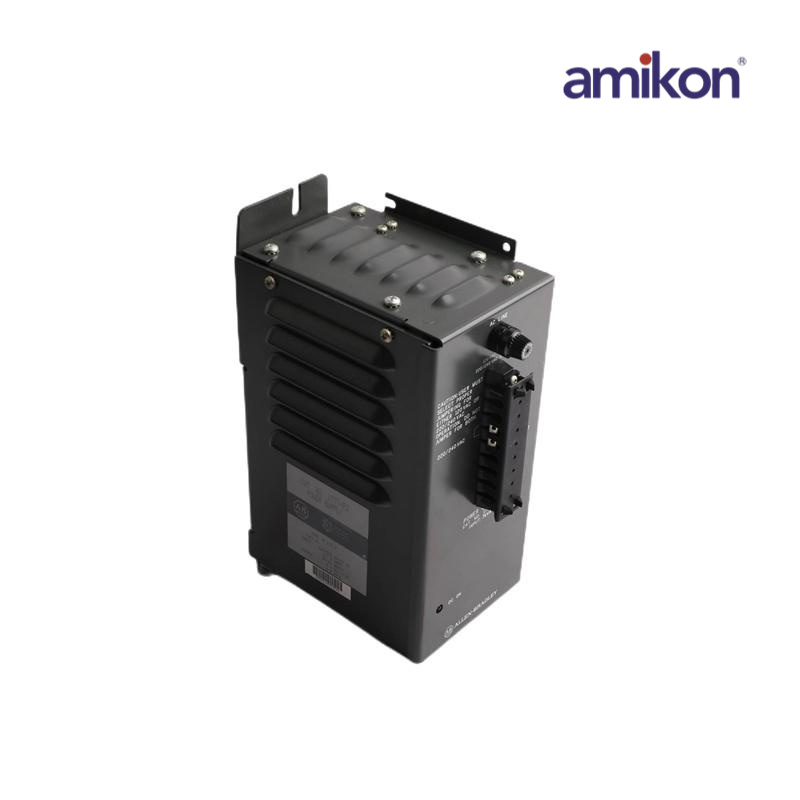

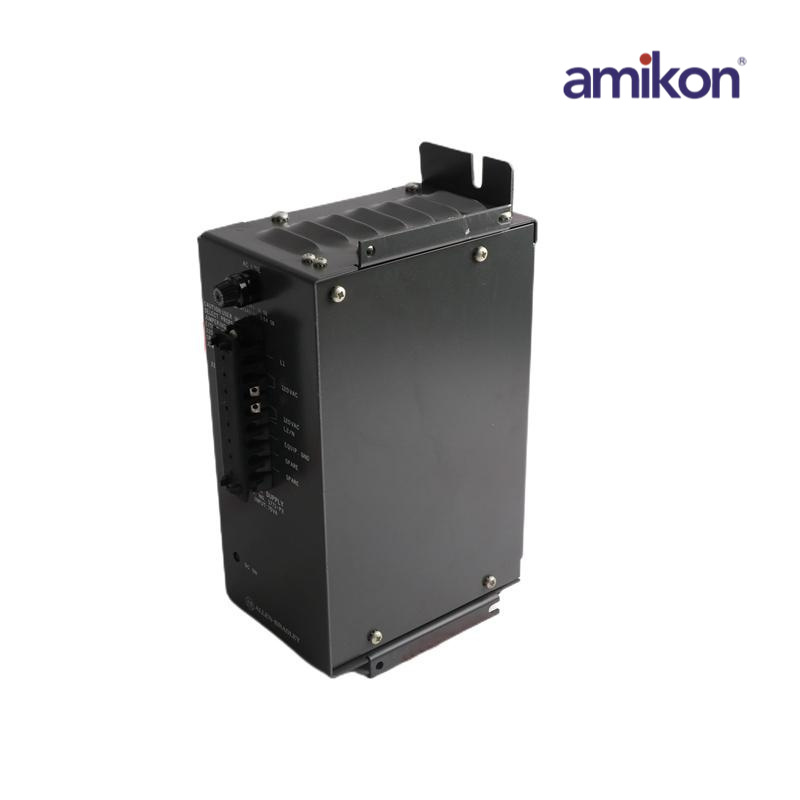

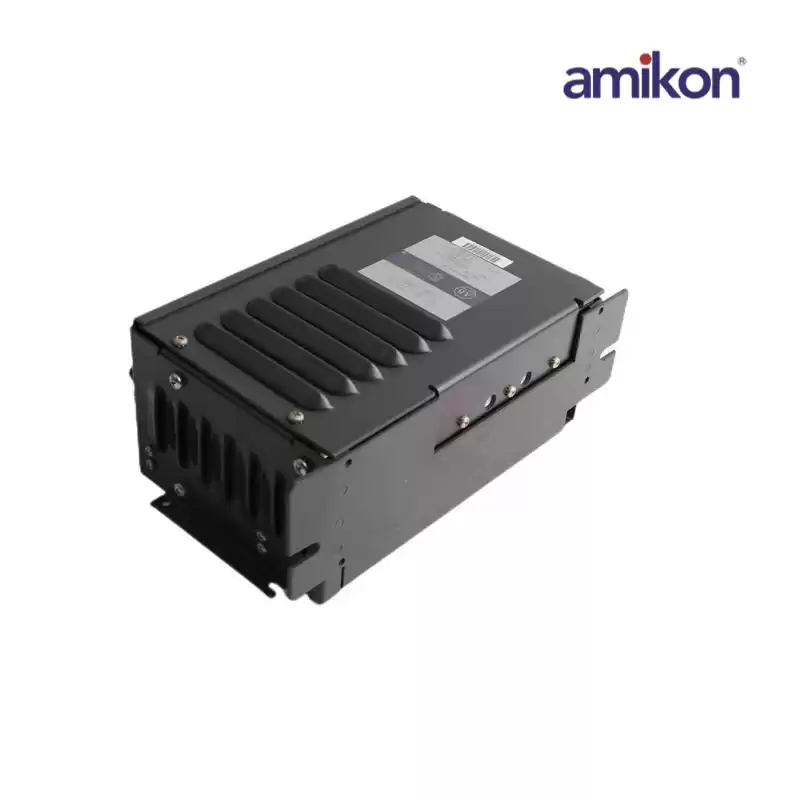

The 1771-P2 is a PLC5 auxiliary power supply module. This Power supply module is used to power a single 1771 chassis installed with one a communication adapter, 1771 Mini-PLC2 or a 1771-Mini-PLC 2/15. This power supply, as well as other auxiliary power supply does not include a battery backup. If battery backup is required, appropriate power supply is 1771-P1.
|
|
