Technical Specifications for 1771-P4S1
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
8 Amperes
|
|
Part Number/Catalog No.
|
1771-P4S1
|
Input Voltage
|
100 Volts AC
|
|
Module Type
|
Power Supply Module
|
Input Voltage
|
85-120 Volts AC
|
|
Manufacture Year
|
2021
|
Voltage Rating
|
16 VDC
|
|
Product Package
|
Original Package
|
UPC
|
10662468206072
|

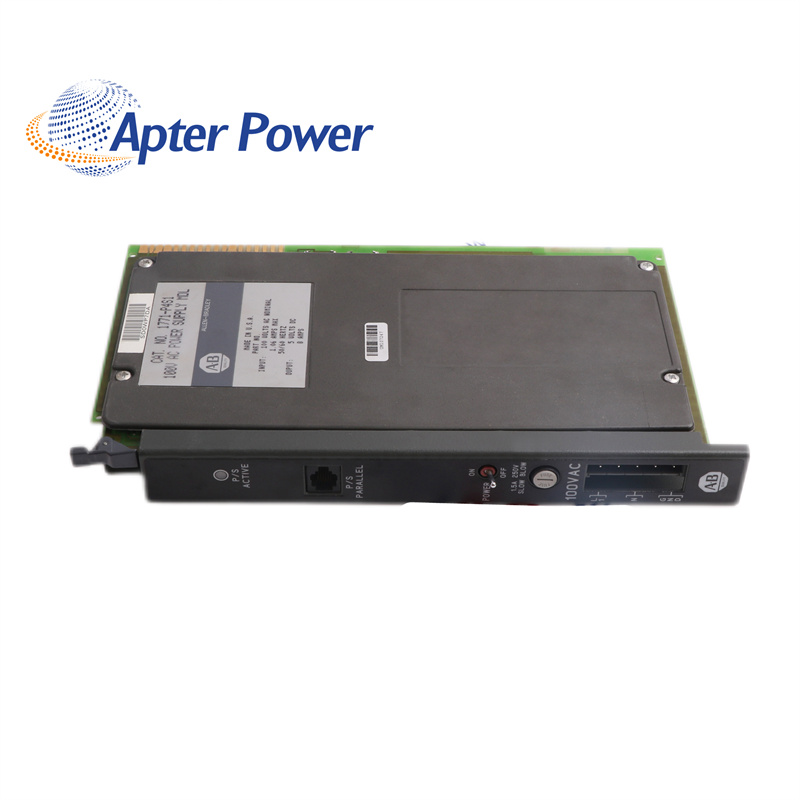

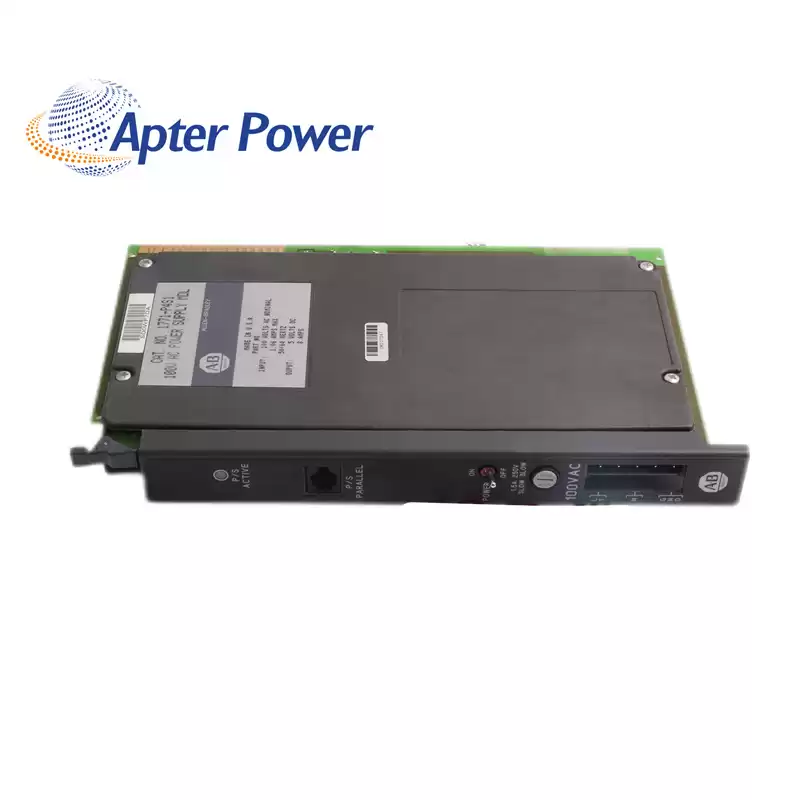

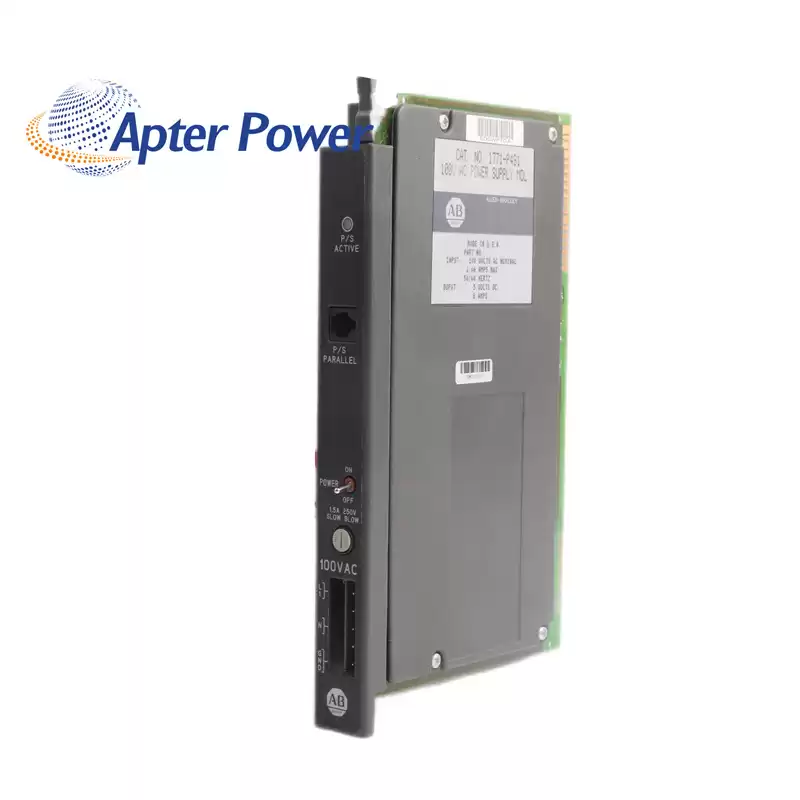

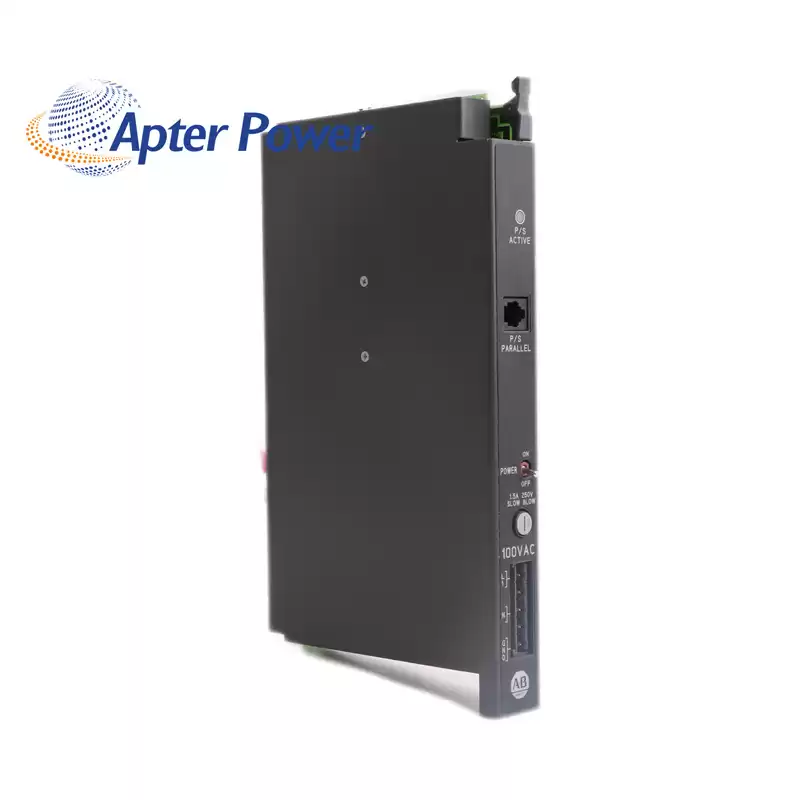

About 1771-P4S1
|
The 1771-P4S1 has a maximum power loss delay time of 13.6ms (-+3.6), and uses a copper conductor with 14 AWG size rated at 60 0C and with an insulation thickness of 1.2mm (max). The module has an IEC tested and rated working temperature range of 0060 0C without de-rating around a relative humidity range of 5-95% without condensation. The 1771-P4S1 weighs approximately 1.04Kg (2.3lb) and is designed with an open-style enclosure. A recommended 140VA load transformer optional transformer may be used alongside it, and the module is UL and CSA-certified.
The 1771-P4S1 Power Supply Module is an AC power module by which provides power to the backplane and is installed in a single slot of the 1771 I/O chassis. It has a nominal input voltage of 120V AC and an input current of 0.88 Ampere. Its input voltage ranges between 85 and 120V AC at 47-63Hz, and the module has a real input power of 56W, and an apparent power of 89VA.
|
