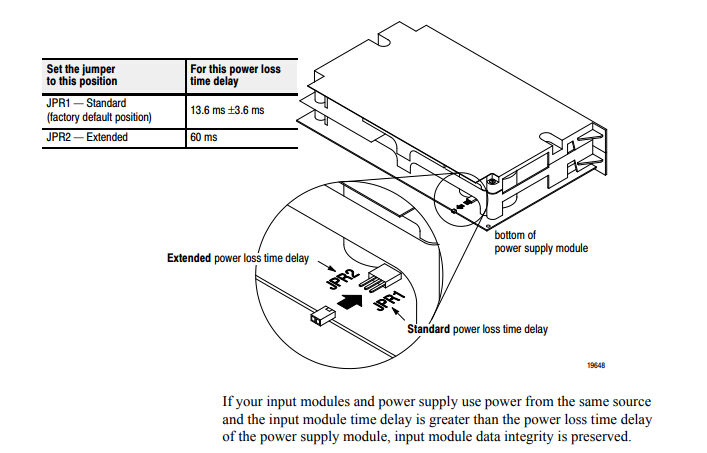

The 1771-P5E power supply has a selectable power loss time delay which
helps prevent unnecessary I/O chassis resets due to input power supply
dropouts
Power loss time delay is the time period from when the power supply
input voltage drops below 20.5V dc to when the power supply resets the
processor enable signal on the I/O backplane. When this signal is reset, the
resident PLC processor or adapter module stops processing data to/from
the modules in the I/O chassis.
The 1771-P5E is a 24V DC Power Supply with an input voltage range of 20.5...30V
DC and real input power max. of 57W. 1771P5E is parallel with the -P10 and -P5.
Cabling is the 1771-CT.
|
1771-P5E
|
|
|
|
|
|
|
|
Input Voltage, Nom
|
|
24V dc (has selectable power-loss delay)
|
|
|
|
|
|
Input Voltage Range
|
|
20.5-30V dc
|
|
|
|
|
|
Real Input Power, Max
|
|
57 W
|
|
|
|
|
|
Apparent Input Power, Max
|
|
N/A
|
|
|
|
|
|
Backplane Output Current
|
|
8 A @ +5V dc
|
|
|
|
|
|
Location, No. of Slots
|
|
1771 Chassis, 2 slots
|
Allen Bradley 1771-P5E
1771-P5E | Allen-Bradley I/O Module
Email:sales3@amikon.cn
PLC-5 CHASSIS POWER SUPPLY 24V DC 8A 2SLOT TIME
DELAY
· Require no space outside the I/O chassis
· Connect directly to the I/O chassis backplane
· Contain output-power indicators that indicate if 5V DC is being supplied to the backplane
· Can be paralleled (using 1771-CT cable) to provide up to 16 A of current per chassis (1771-P4S, -P6S, -P4S1, -P6S1).
· Single failure-proof chassis power of up to 20 A of current per chassis using redundant configurations (1771-P4R, -P6R).
