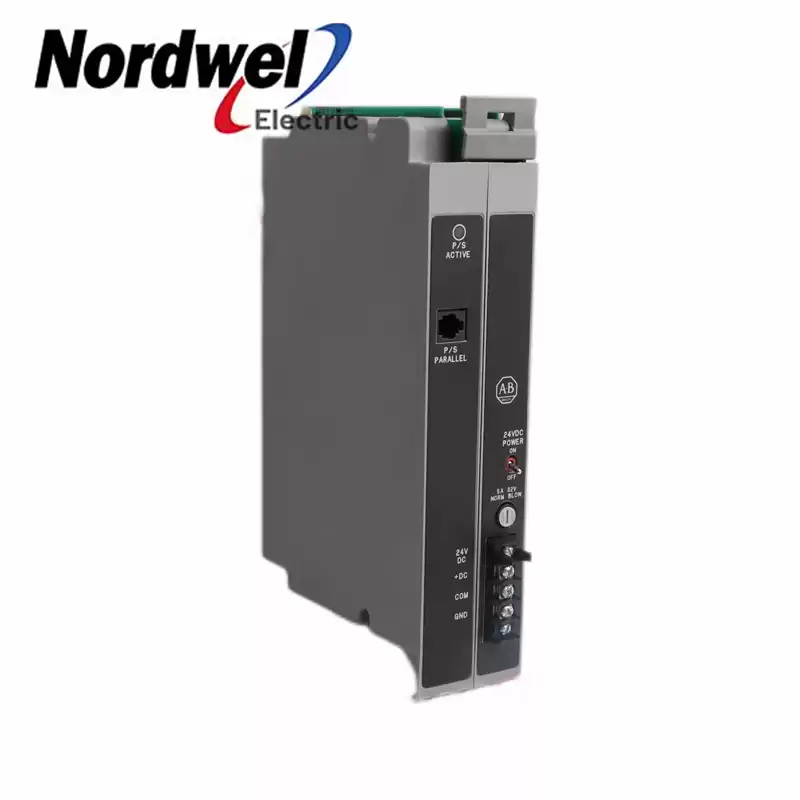

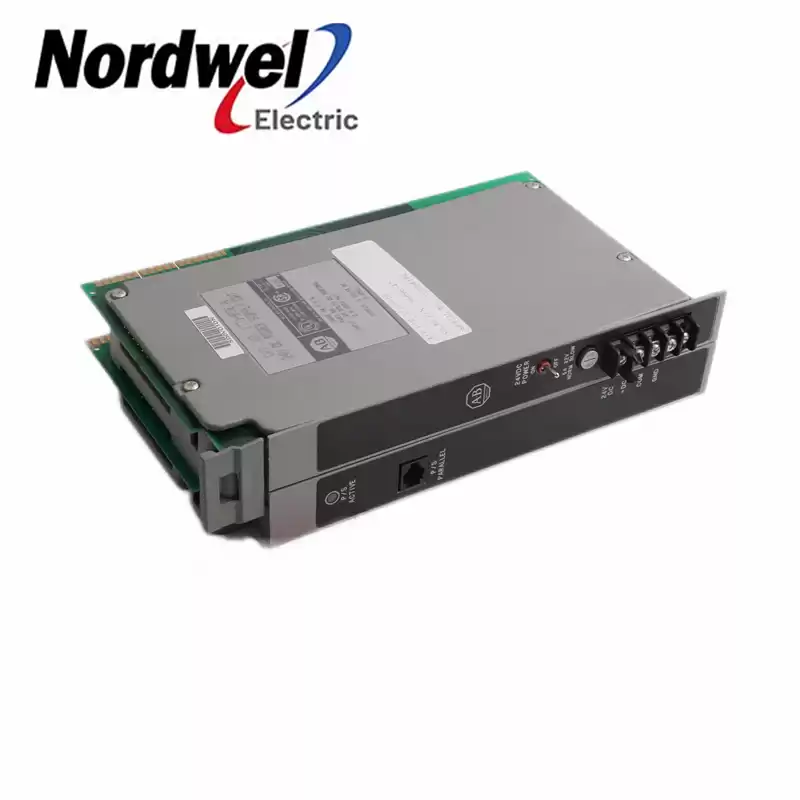

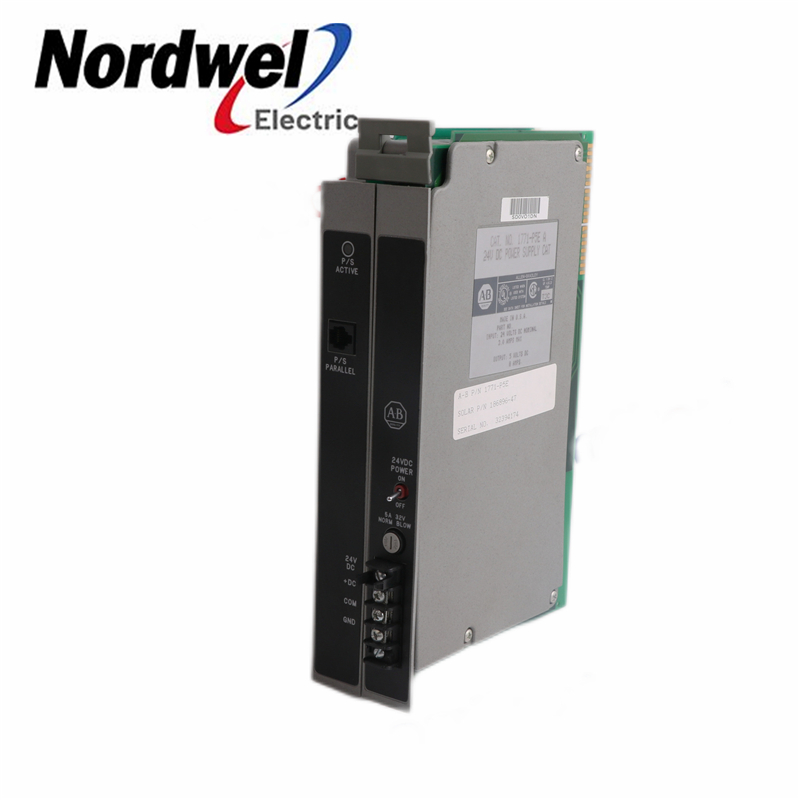

Technical Specifications for 1771-P5E
Manufacturer Automation
Brand
Part Number/Catalog No. 1771-P5E
Module Type Power Supply
Nom Input Voltage 24 Volts DC (Selectable Power-Loss Time Delay)
Input Voltage Range 20.5-30 Volts DC
Max Real Input Power 57 Watts
Max Apparent Input Power N/A
Max Xformer Load N/A
User Output Current N/A
Backplane Output Current 8 Amperes (at 5 Volts DC)
Frequency DC/Rect Sine
Fuse 5 Amperes, 32 Volts, Normal-Blow
Cabling 1771-CT
Paralleled -P10, -P5
Dimensions 2 Chassis Slot
PLC 5 Power Supply, 24 Volts DC (Selectable Power-Loss Time Delay) Nom Input Voltage,
20.5-30 Volts DC Input Voltage Range, 8 Amperes (at 5 Volts DC) Backplane Output Current
