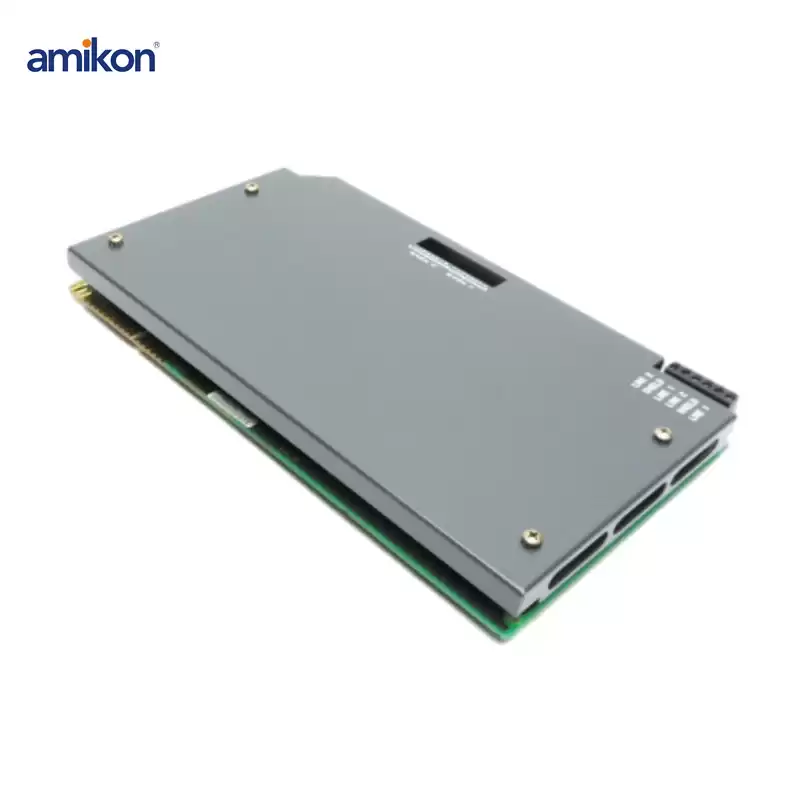

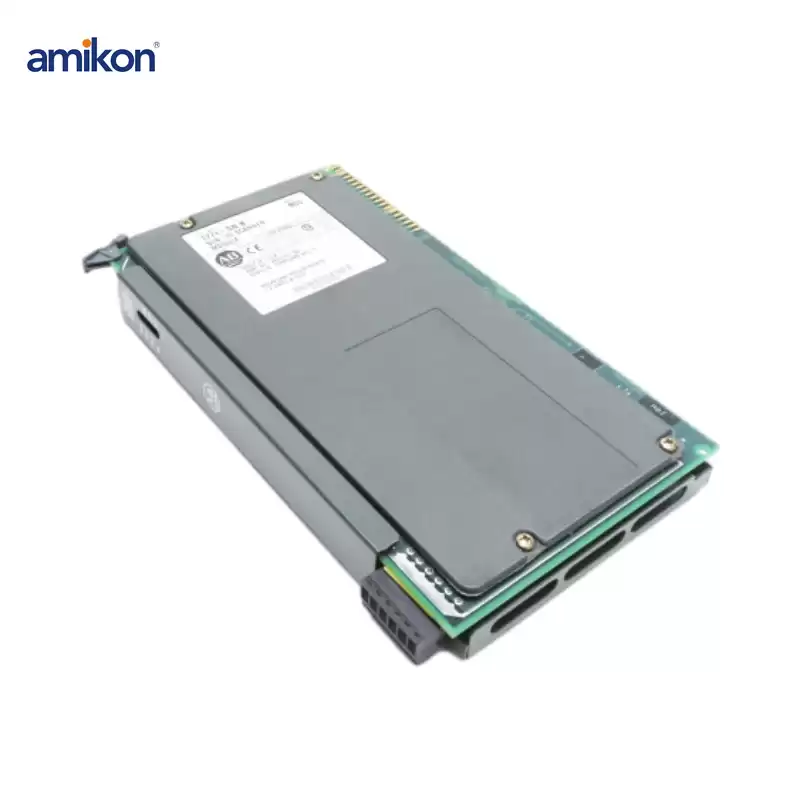

1771-SN Sub I/O Scanner Module
Condition: 100% New Original
Payment Terms: T/T
Minimum Order Quantity: 1pc
Weight: 0.5kg
Dimensions: 16x14x10.8cm
Product Description: 1771-SN Sub I/O Scanner Module
|
Specifications and Technical Data
|
|
|
|
Connect to the Module Connector Conneet your cable (1770-CD or equivalent, refer to the Approved CableVendor List, pub. no. ICCG-2.2) to the module connector at the bottomfront of the module (Figure 1).
Use either of the two sets of terminals.
They connect in parallel inside of the module. Independent fault controlLost communications with one l/O chassis does not affect operation of the other l/0 chassis ifeach chassis has a different assigned rack number.
If both l/A chassis have the same rack number, you must set the faulted l/O search switch onthe ON (closed) position to prevent a fault in one l/O chassis from affecting the other.
The 1771-SN Scanner clears the fault bit automatically after you correct the fault.
You mustrecycle power to the Scanner to clear the fault counter.
Dependent fault control Lost communication with one l/A chassis causes the outputs of the other chassis to reset orremain in their last slate according to how you set the last state switch on each chassis.
