1771-WB/AB IN STOCK& READY FOR SHIP

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1771-WB

The Allen-Bradley 1771-WB is a PLC-5 field wiring arm for the analog I/O module. It has 12 terminals available that have gold contact plating and can support up to 8 I/O points and it uses a thermoplastic material. This conformally-coated wiring arm is typically used for analog applications and does not require an external power source. It also helps ensure the connection integrity in the system, as well as provide easy and flexible interconnections between the Allen-Bradley 1771 I/O modules and the plant wiring. Note that you can directly clamp or spade lug an AWG 14 wire to the 1771-WB wiring arm. It has dimensions of 4.5 x 12.4 x 6.3 inches and a weight of 0.1 lbs.

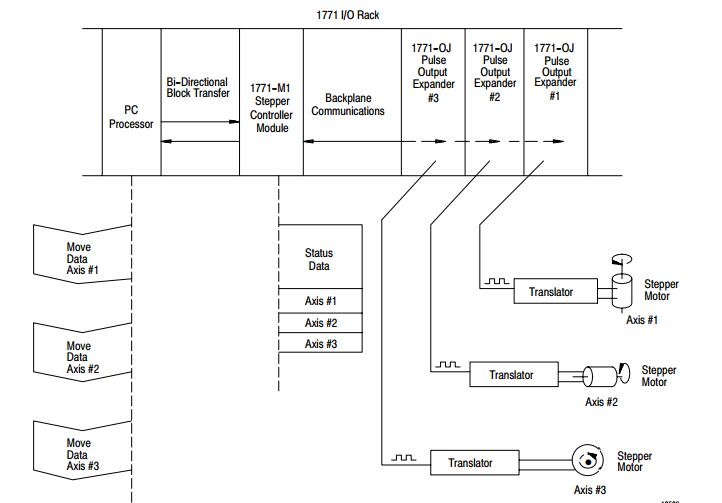

Stepper motor positioning assemblies can be used in applications requiring more than three axes by using additional I/O chassis. The stepper assemblies can be distributed throughout the plant using remote I/O or data highway configurations. Typically, each axis can control a linear slide although not limited to that type of mechanical load. The axes can be controlled independently or control of the axes can be synchronized. Programming is based on a data block format where blocks of data can be manipulated using block format instructions such as file-to-file move and block transfer read and write instructions. The stepper positioning assembly can be used with any Allen-Bradley programmable controller that has block transfer capability and an expandable data table except for Mini-PLC-2 (cat. no. 1772-LN3) and PLC-2/20 (cat. no. 1772-LP1) Processors. When using the LC-2/20, programming will be more lengthy because data must be transferred using repeated get/put (word) transfer instructions. The number of axes that can be controlled and the complexity of motion will depend on the memory available for the positioning program after the data table of the PC processor has been expanded to store the data blocks.

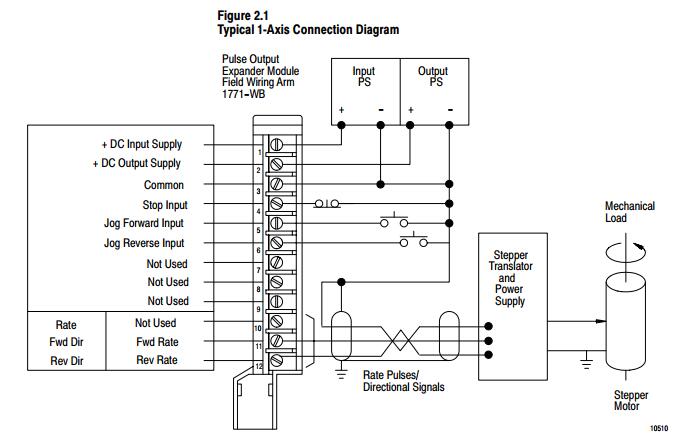

The stepper positioning assembly can be wired for 1-axis operation with a stepper translator and motor as shown in Figure 2.1. One stepper controller module can control up to three pulse output expander modules installed in the same chassis. When the application calls for 2-or 3-axis control, each additional expander module should be wired as shown in Figure 2.1. No more than one stepper controller module can operate in an I/O chassis.
