1771-WN/AB IN STOCK& READY FOR SHIP

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1771-WN

This module must be used in a series B I/O chassis. The 1771-ID16 is not compatible with the 1771-AL local I/O adapter. This module contains customer-selectable input filtering to limit the effects of voltage transients caused by contact bounce and/or radiated electrical noise. The delay due to filtering is 9.0 or 18.0ms for turning ac inputs on to off, and 1.0ms for turning ac inputs off to on; 9.0ms for turning dc inputs on to off, and 1.2ms for turning dc inputs off to on. The filter time is factory set to 9.0ms. This module is designed to operate with limit switches, float switches, selector switches, and pushbutton switches. Your module receives its power through the 1771 I/O chassis backplane from the chassis power supply. The module requires 75mA from the output of this supply. Add this to the requirements of all other modules in the I/O chassis to prevent overloading the chassis backplane and/or backplane power supply

The isolated input module is shipped in a static-shielded bag to guard against electrostatic discharge damage. Observe the following precautions when handling the module.

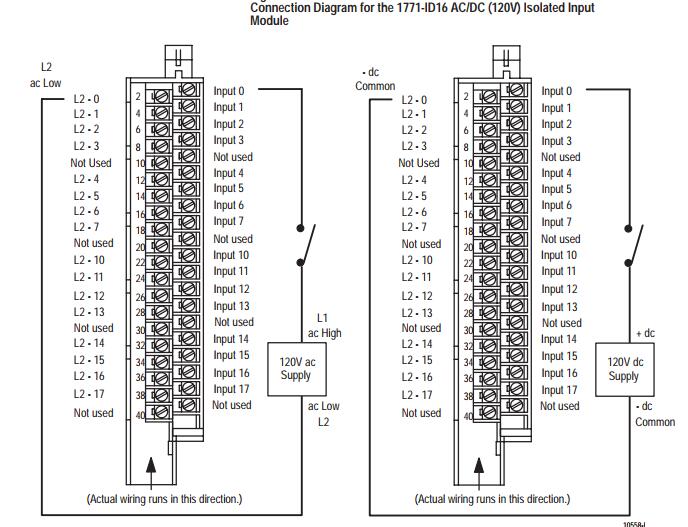

Wear an approved wrist strap grounding device, or touch a grounded object to discharge yourself before handling the module. Do not touch the backplane connector or connector pins. If you configure or replace internal components, do not touch other circuit components inside the module. If available, use a static-free work station. When not in use, keep the module in a static-shielded bag. In this section we tell you how to set your input filter time, key your I/O chassis, install your module and make your wiring connections. Setting the Input Filtering Time The input module has 2 customer-selectable input filter time jumpers. Jumper JPR 1 sets the input filter time for inputs 00 through 07, and jumper JPR 2 sets the input filter time for inputs 10 through 17. These filter times apply when the input is cycling from ON to OFF. The OFF to ON filter time is fixed at 1ms. Refer to Table A and Figure 1 for filter times and jumper settings. Important: Half cycle dropout protection is dependent upon the position of the jumpers. With the jumpers at the 9.0ms position (Fast), half cycle protection may not be guaranteed. If half cycle dropout protection is required, position the jumpers in the 18.0ms position (Norm). Maximum and minimum filter times are shown in Table A. To set the filtering time, proceed as follows: 1. Remove the side covers from the module circuit board by removing the four screws securing the covers to the module and remove the circuit board. 2. Position the jumpers as required to provide the filter time you require. Refer to Figure 1. Use your fingers to pull the jumper up and position over the 2 pins corresponding to your selection

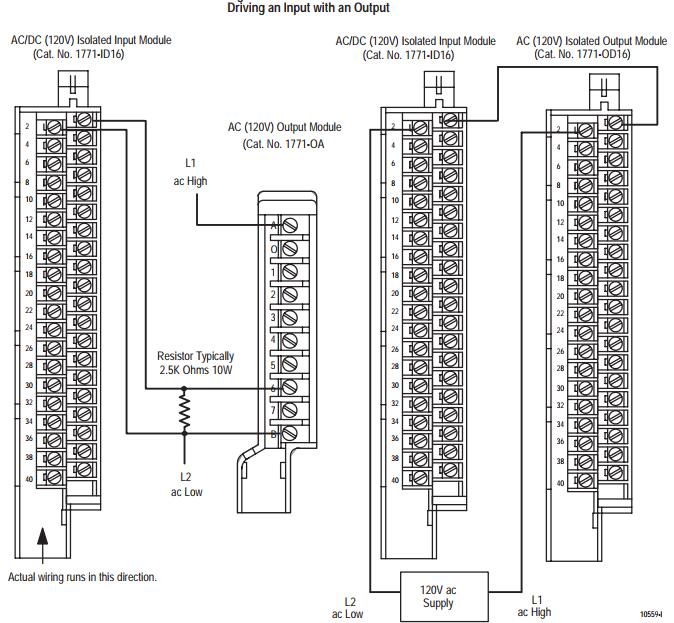

Important: You can use an AC (120V) Output Module (cat. no. 1771-OA, 1771-OD or 1771-OP) to directly drive terminals on an AC/DC (120V) Input Module (cat. no. 1771-ID16) (Figure 3), but you must connect a 2.5K ohm, 10W resistor between the output terminal and L2 (common) as shown in Figure 3. You can use an AC (120V) Output Module (1771-OD16) to drive the 1771-ID16 module without using a resistor. Isolation must be maintained between phases to prevent module damage.
