1775-S4B
|
|
Dimensions ：
|
5cmx27.9cmx30.5cm
|
Weight：
|
0.48KG
|
|

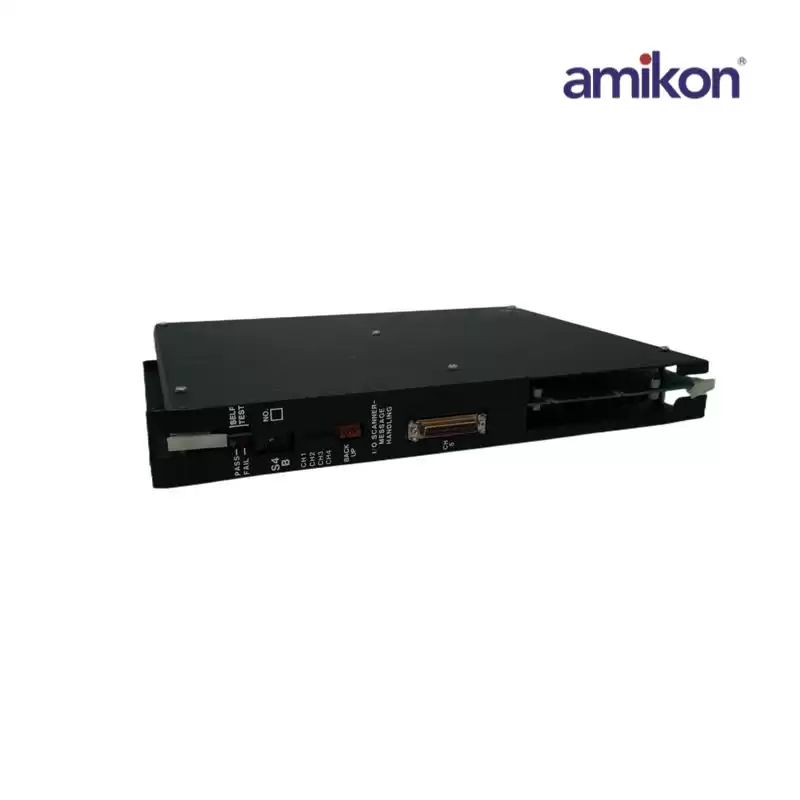

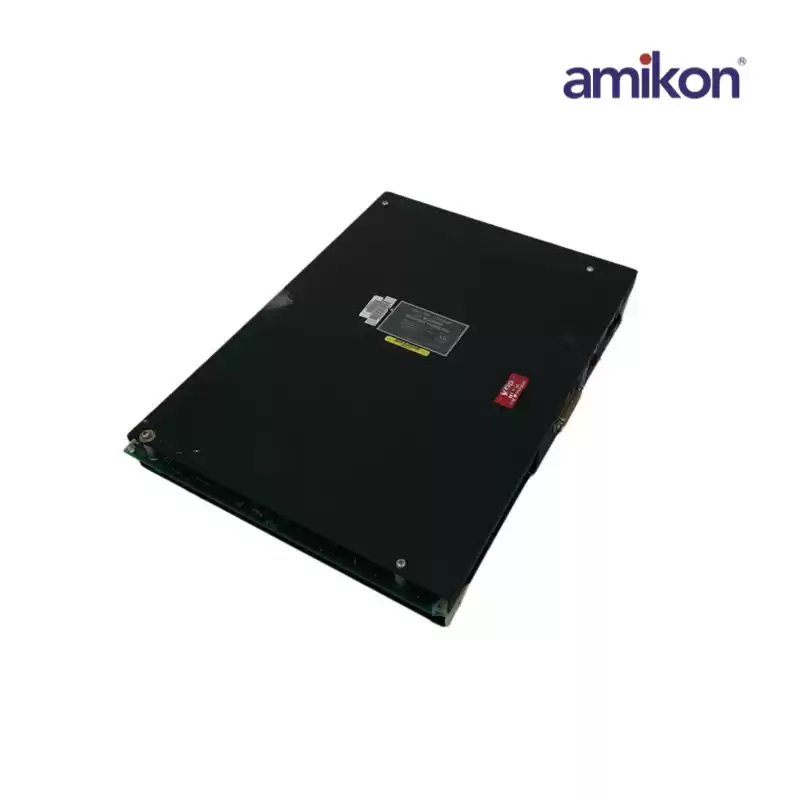

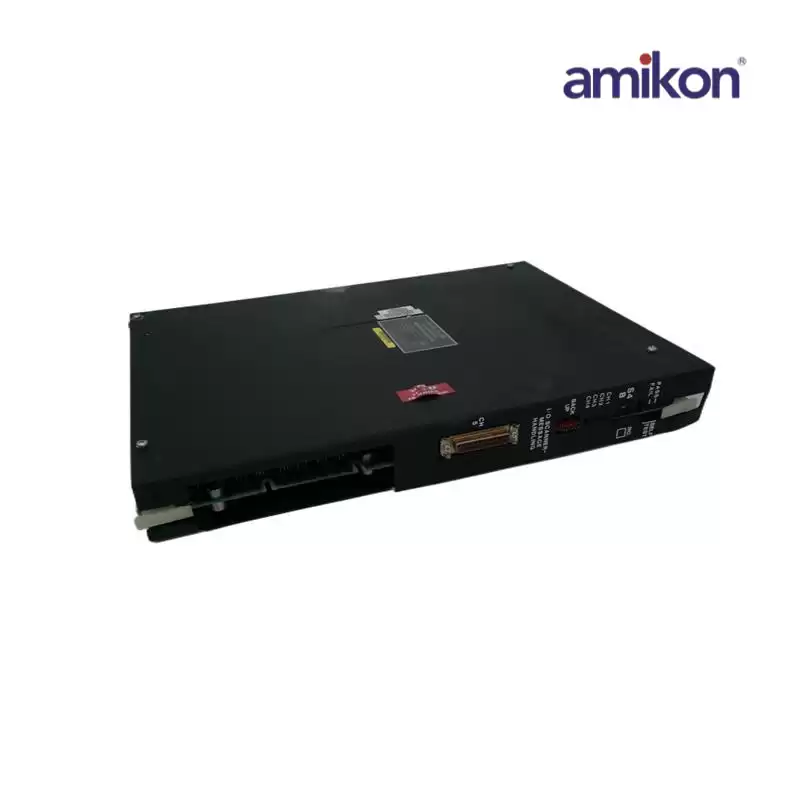

The 1775-S4B is an industrial control system input/output (I/O) scanner-programmer interface module for use with PLC-3 processors. This module has an I/O capacity of 2,048 inputs and of 2,048 outputs, with 4 I/O communication channels and with 1 RS-232-C communication channel in each module.
The 1775-S4B module has nominal I/O scan times of 6 to 6.5 ms for 4 channels, 6 ms each for both 3 channels and 2 channels, and 5.5 to 6.5 ms for 1 channel. It also features communication rates of 110 baud to 19.2 kbaud for the RS-232-C channel and 57.6 kbaud or 115. kbaud for the I/O channel.
|
|
