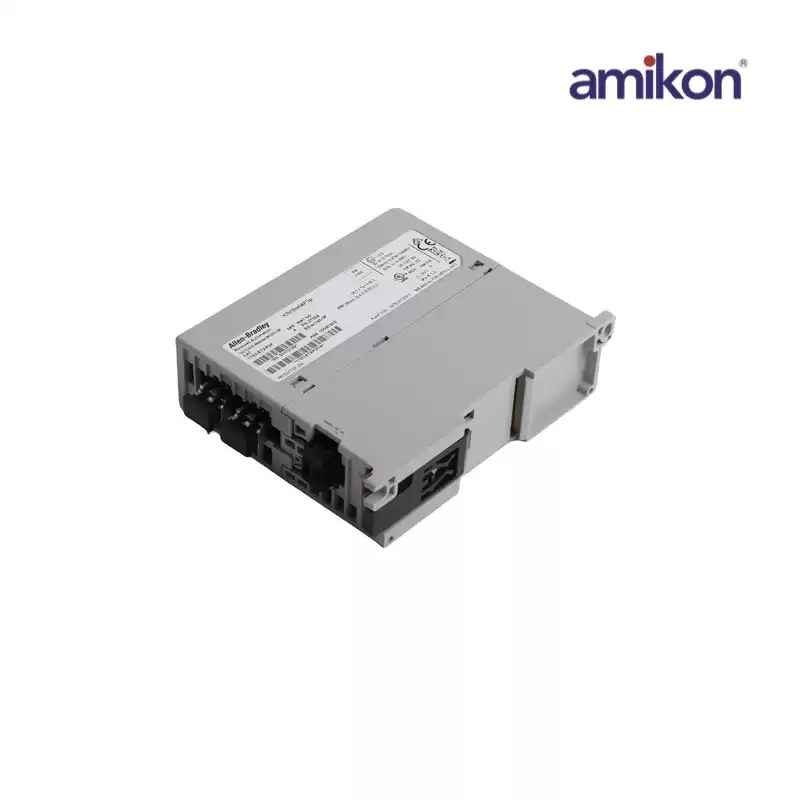

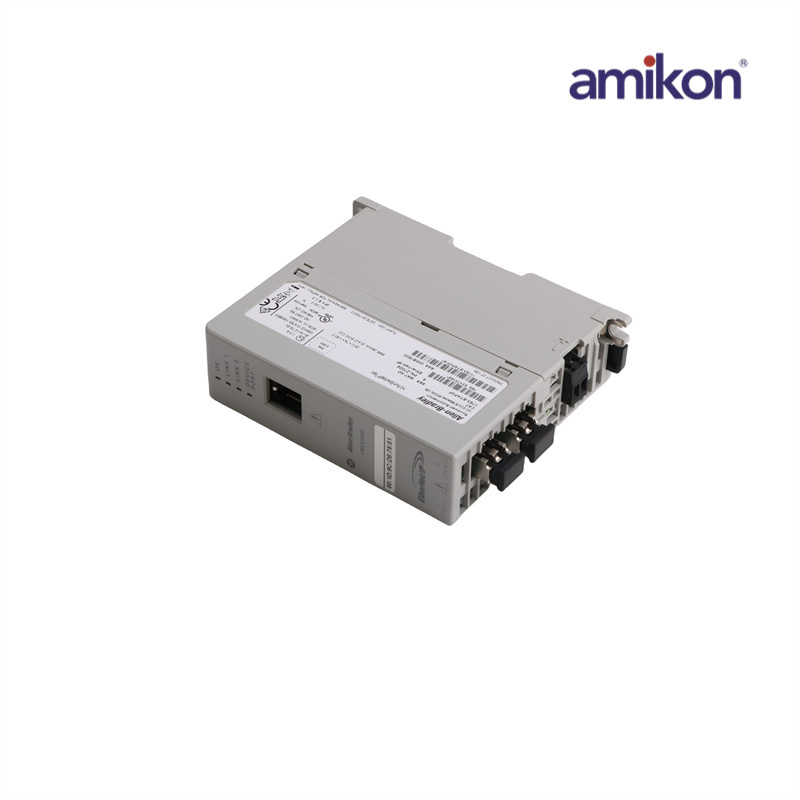

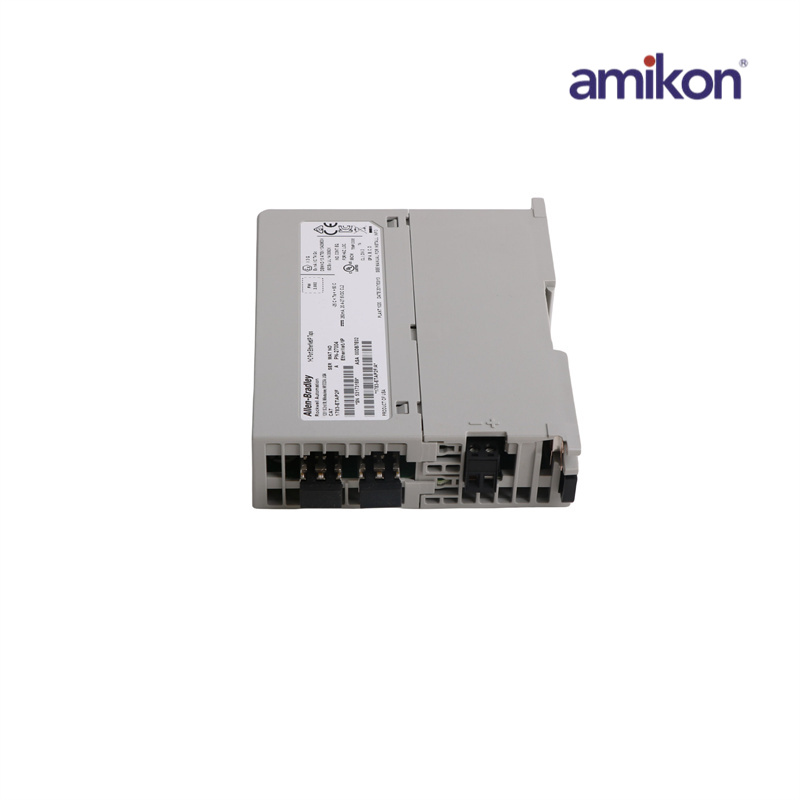

1783-ETAP2F
|
|
Dimensions ：
|
3.5cmx10.5cmx14cm
|
Weight：
|
0.2kg
|
|
The 1783-ETAP2F does not install to any backplane nor does not draw current from it. It is supplied externally by a power supply with input voltage range of 20.4…27.6V DC with a nominal input voltage of 24VDC. This Ethernet device can be installed using a DIN rail mount or directly mounted to an enclosure plate. It is capable of horizontal and vertical mounting, providing flexibility of installation.
|
|
This device occupies minimum panel space however, specific installation clearance must be to ensure proper operation and quality of connection. These clearances include 7.62 cm (3 in.) of space on the bottom of the tap and 2.54 cm (1 in.) of space on the remaining sides of the tap. For Fiber cable entry, at least 5.08 cm or 2 inches is recommended to comply with the necessary bending radius of the Fiber Optic cable.
The 1783-ETAP2F tap is an Ethernet/IP tap with 1 copper port and 2 fiber ports. The Fiber transceiver type is the 100Base-FX IEEE 802.3u transceiver. The optical wavelength is 1310 nanometers. The minimum transmitter launch power at startup is -19 dBm into 62.5/125 micrometer fiber and -22.5 dBm into 50/125 micrometer fiber.
|
