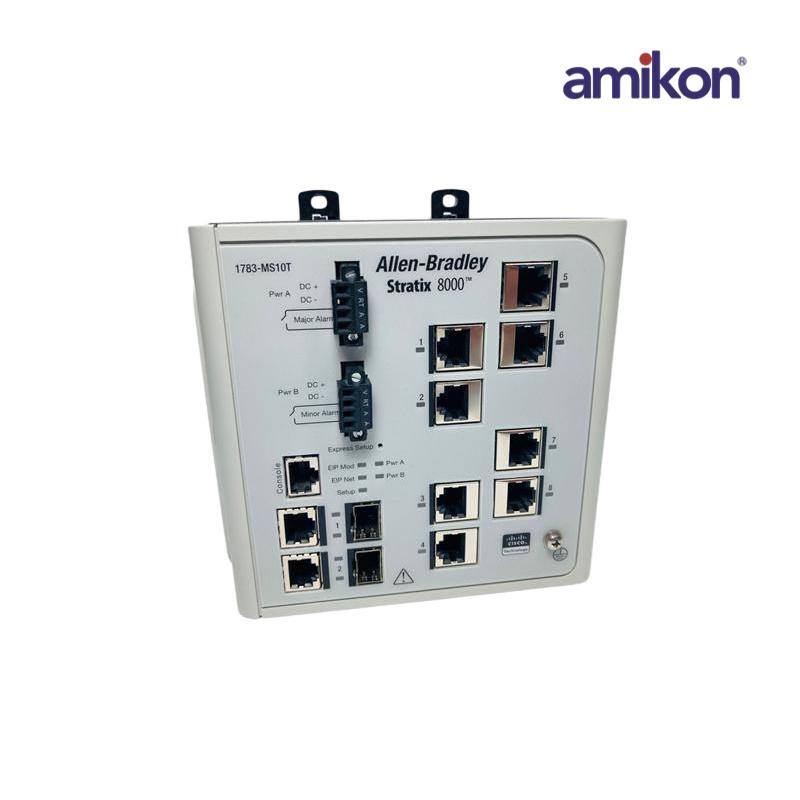

1783-MS10T
|
|
Dimensions ：
|
13.2cmx2.5cmx14cm
|
Weight：
|
0.13KG
|
|
The 1783-MS10T switch comes with an inrush current of 2.0 Amps maximum. The unit features a switch input rating at a maximum of 2 Amps at 18 to 60 Volts DC, CL2/SELV. The rated power dissipation is 15.7 Watts. The ambient operating temperature range is rated at -40 to 60 degrees Celsius, while the ambient non-operating temperature is -40 to 85 degrees Celsius.
The 1783-MS10T switch supports common IT configuration and control tools. The included IOT configuration tools include the Command Line Interface, the CAN, and the Device Manager tools. Moreover, the 1783-MS10T switch includes the default configurations that are relevant for the industrial automation and the EtherNet/IP devices.
|
|
