Technical Specifications for 1783-US16T
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Consumption
|
8.0 Watts
|
|
Part Number/Catalog No.
|
1783-US16T
|
Total Ports
|
16
|
|
Module Type
|
Switch
|
Inrush Current
|
0.47 A
|
|
Manufacture Year
|
2021
|
Power Input
|
12 to 48 Volts
|
|
Product Package
|
Original Package
|
UPC
|
884951981430
|
About 1783-US16T
|
The 1783-US16T has a wide operational temperature range between -40 and 70 degrees Celsius (-40 and 158 degrees Fahrenheit) at a 5 to 95% non-condensing relative humidity to accommodate a wide range of applications. It is stored at an IEC-rated temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It is designed to withstand an operational shock of 15G and 30G in a non-operational mode, and it can withstand an operational vibration of 2G at 10 to 150 Hertz. It has a CISPR11, Class A-Rated Emission, and it has an IP20 environmental rating for protection against solid objects.

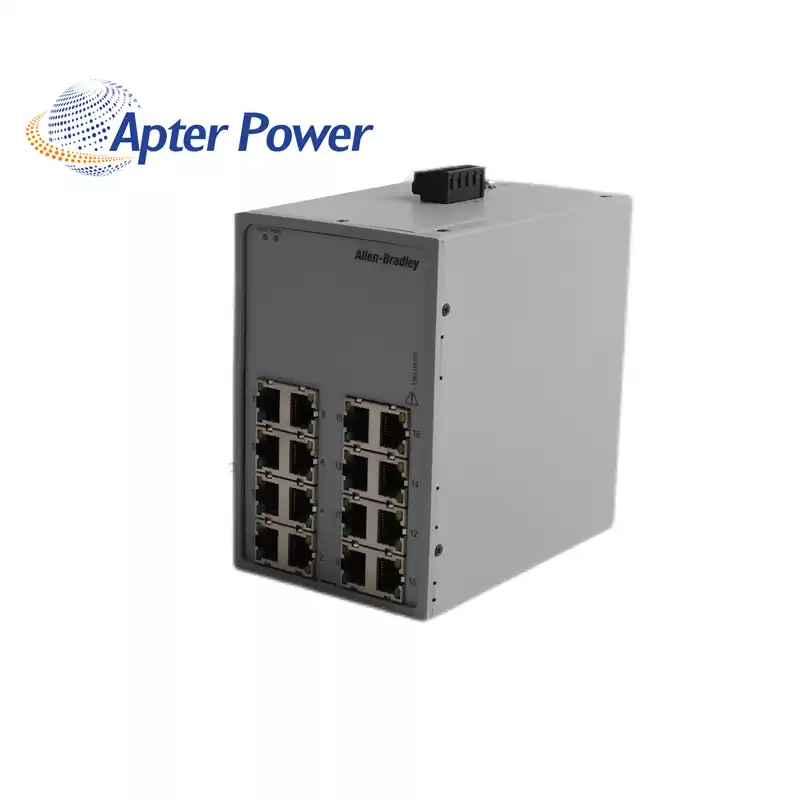

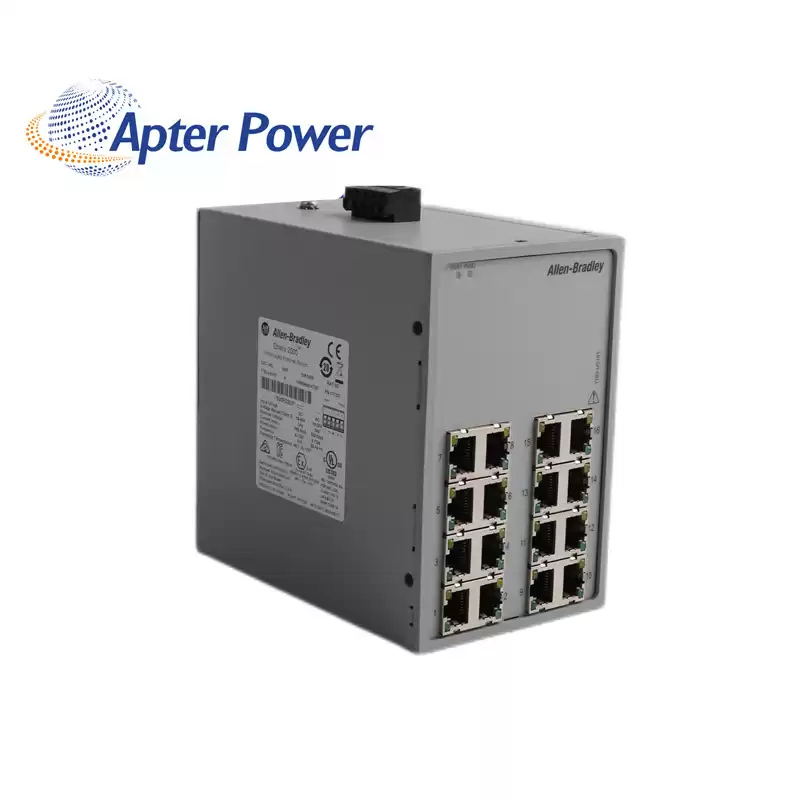

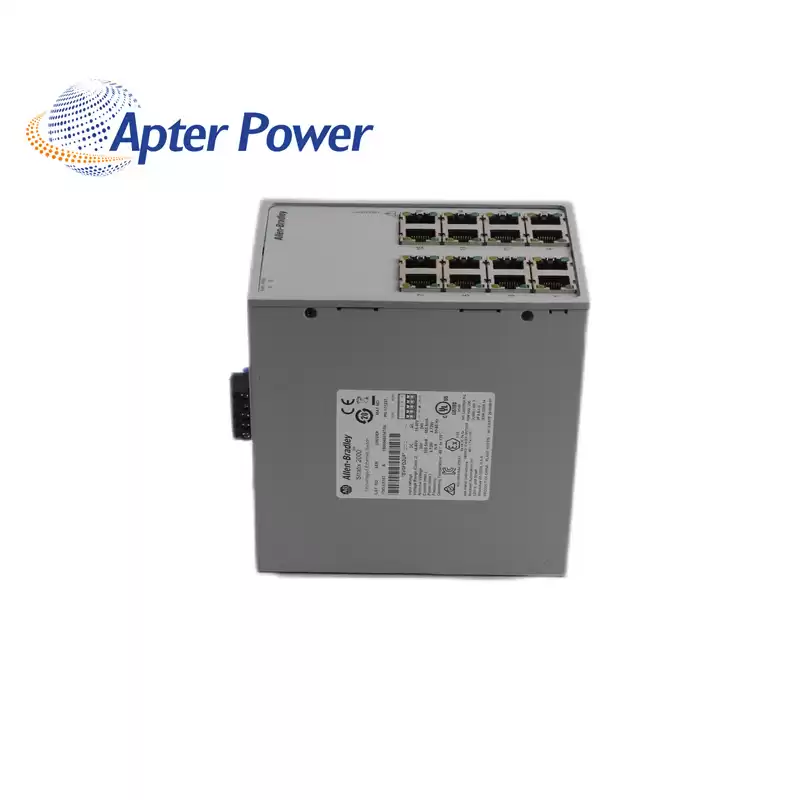

The 1783-US16T Stratix 2000 EtherNet Unmanaged Switch by is an electronic device which provides compact solutions for most industrial applications with a need for reliable network connectivity. It requires a Dual Class 2 or SELV 16 to 60 Volts DC or 18 to 30 Volts AC at a 50 to 60 Hertz input voltage range, with a 24 Volt nominal input and a maximum input current of 555.5 mA with 4.72 A inrush current on start-up.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
