Technical Specifications for 1784-KTCS
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Storage temperture
|
-40 to 85 oC
|
|
Part Number/Catalog No.
|
1784-KTCS
|
Input Voltage
|
5 Volts DC
|
|
Module Type
|
ControlNet scanner card
|
Relative humidity
|
5 to 95%
|
|
Manufacture Year
|
2021
|
Input current
|
640 milliamps
|
|
Product Package
|
Original Package
|
UPC
|
820911695714
|

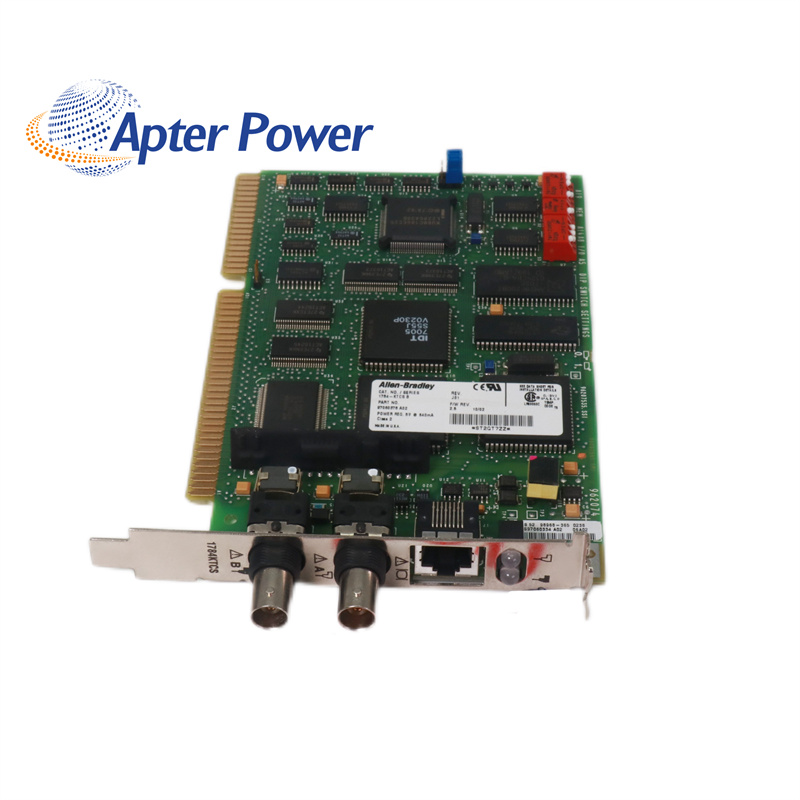

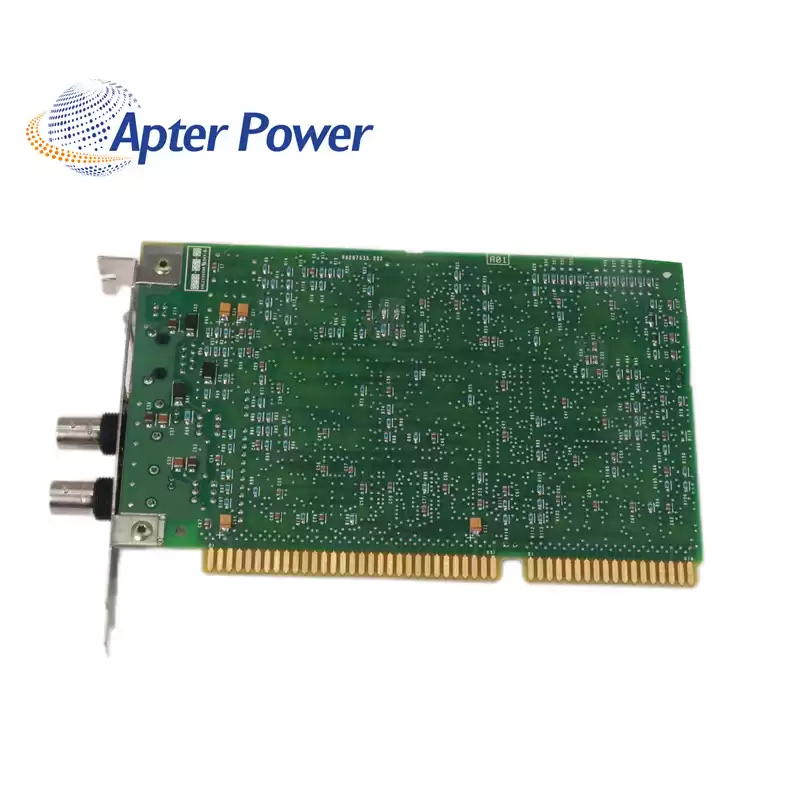

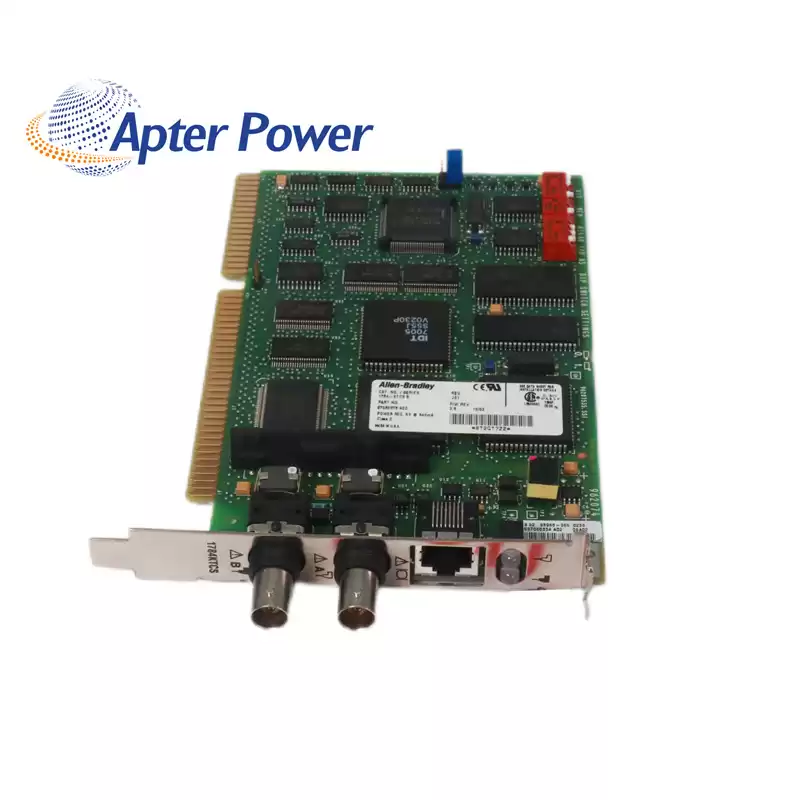

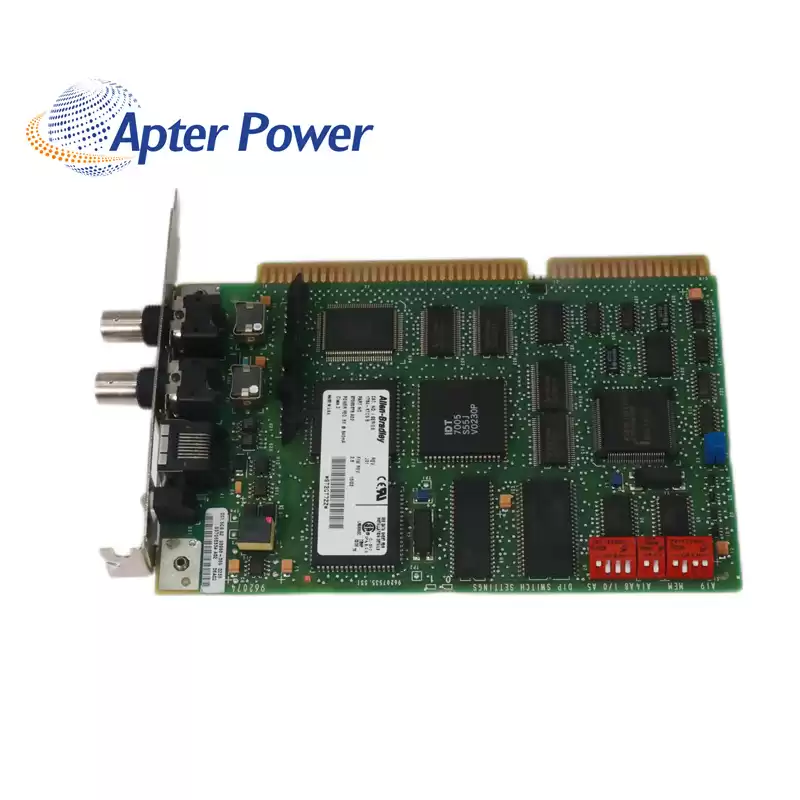

About 1784-KTCS
|
The 1784-KTCS card is approved by the CE and FM standards. Before the card is installed in a computer, the physical addresses for the ROM I/O expansion area of system memory and processor I/O map should be configured. Four 1784-KTCS cards can be installed in a computer as long as each card has a unique I/O space and base memory address.
The 1784-KTCS card uses CMOS technology and it is therefore sensitive to ESD. To guard against ESD damage, the installers should take the following precautions: cards that are not in use should be stored in anti-static containers, the interface connector pins and backplane connector should not be touched, and a grounded object should be touched prior to handling the card.
The 1784-KTCS card is a ControlNet scanner card. It is also an interface card which lets the 16-bit ISA or the 32-bit EISA-compatible computers communicate with the ControlNet networks.The power requirements for the 1784-KTCS card are 5 Volts DC and a maximum current of 640 milliamps. The operating card slot temperature range should be between 0 and 50 degrees Celsius and the non-operating slot temperature range is -40 to 85 degrees Celsius.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
