1784-KTCS
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|

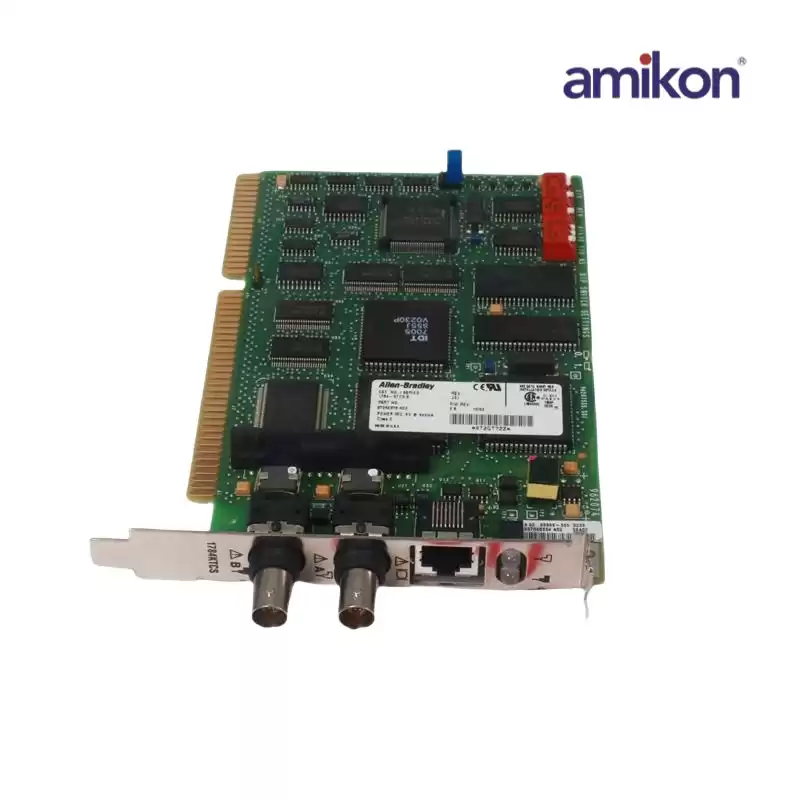

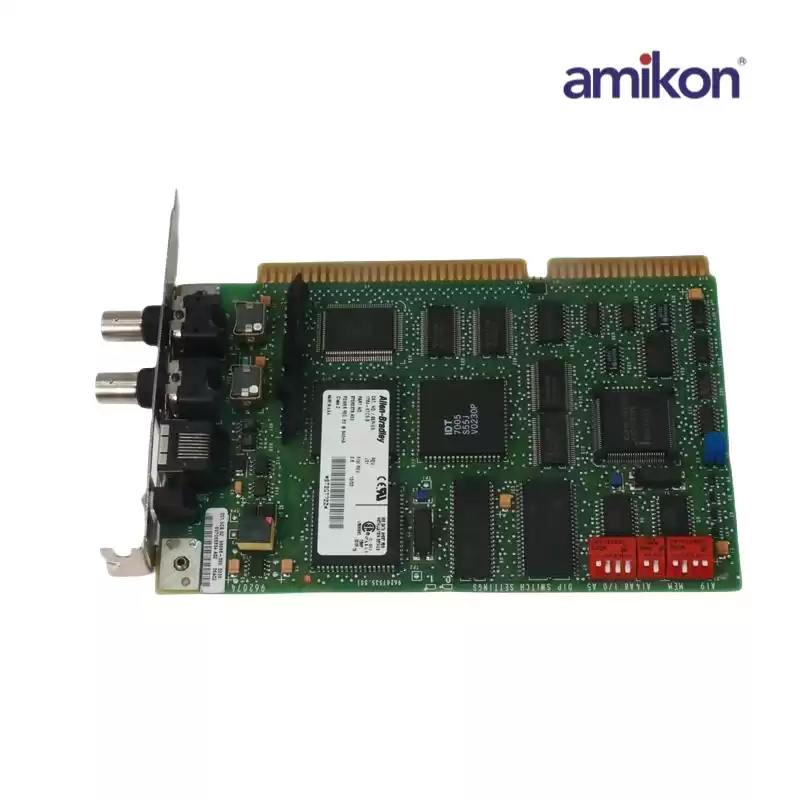

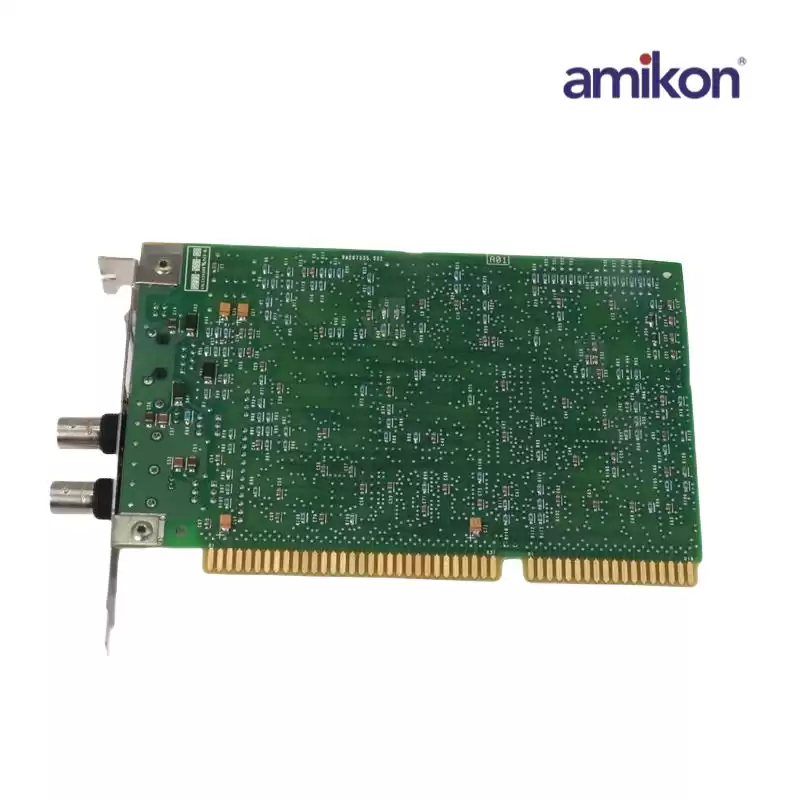

The 1784-KTCS card is a ControlNet scanner card. It is also an interface card which lets the 16-bit ISA or the 32-bit EISA-compatible computers communicate with the ControlNet networks. The power requirements for the 1784-KTCS card are 5 Volts DC and a maximum current of 640 milliamps. The operating card slot temperature range should be between 0 and 50 degrees Celsius and the non-operating slot temperature range is -40 to 85 degrees Celsius. The operating/non-operating relative humidity range is 5 to 95% (non-condensing). The operating vibration rating for the 1784-KTCS card is 10 to 150 Hertz with 0.012 inches displacement. The operating and non-operating shock ratings for the card are 30 G for 11 milliseconds duration and 50 G for 11 milliseconds duration, respectively.
|
|
