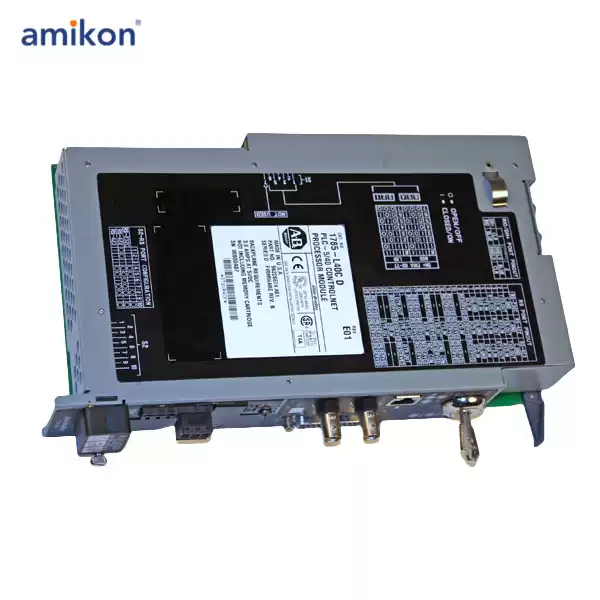

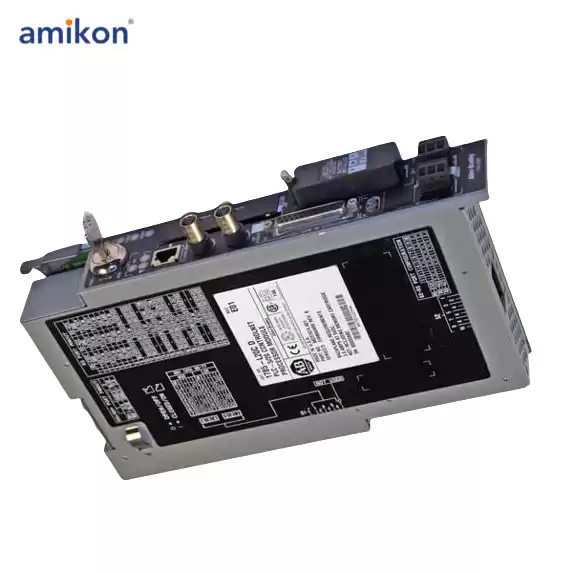

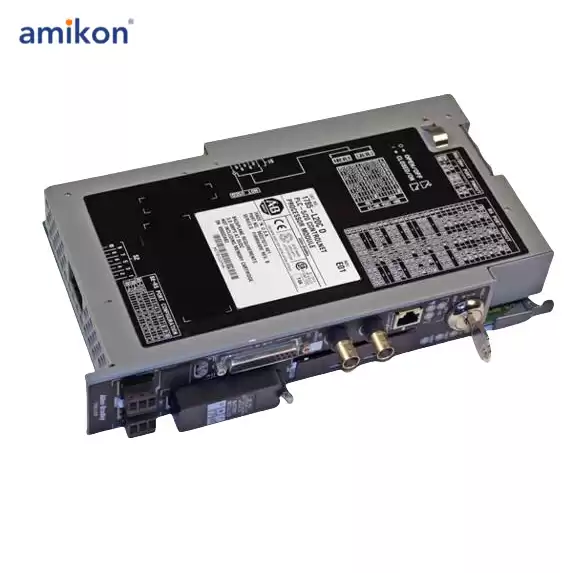

1785-L20C CONTROLNET PROCESSOR MODULE

  sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

About product:

Description:

1785-L20C PLC-5 is a ControlNet programmable controller and processor. It ships with a tray containing several tools for installing the processor, including a 1770-XYC lithium battery, 1 battery cover with a screw, 2 keys, 4 150-Ohm terminating resistors, 2 82-Ohm terminating resistors, 1 DIN rail connector cover, 2 3-pin connectors, and 1 1784-CP7 cable adapter. When installing the 1785-L20C PLC-5 processor, use an approved ground point, avoid touching the connector pins and the backplane connector, and keep the processor in its static-shielded container when it is not in use to avoid electric shock and damage to the processor.

The 1785-L20C processor module is an industrial ControlNet processor module.The 1785-L20C ControlNet processor module is one of the key components in a complete PLC 5 control system. It supports battery backup and it is made to be installed in an I/O chassis.

Part Number:1785-L20C
Module Type:ControlNet Processor Module
Program Scan Time:Typical 2 ms/Kword, Bit Logic 0.5 ms/Kword
Max Total I/O:512 (any mix) or 512 in + 512 out (complementary)
Max MCPs:16
Serial Port:Yes
Coprocessor Port:Yes
Max Analog I/O:512
I/O Scan Time Per Rack:10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s
Max I/O Chassis Total:13
Max I/O Chassis Extended Local:0
Max I/O Chassis Universal Remote:12
RS-232-C/422-A/423- A Ports:1
