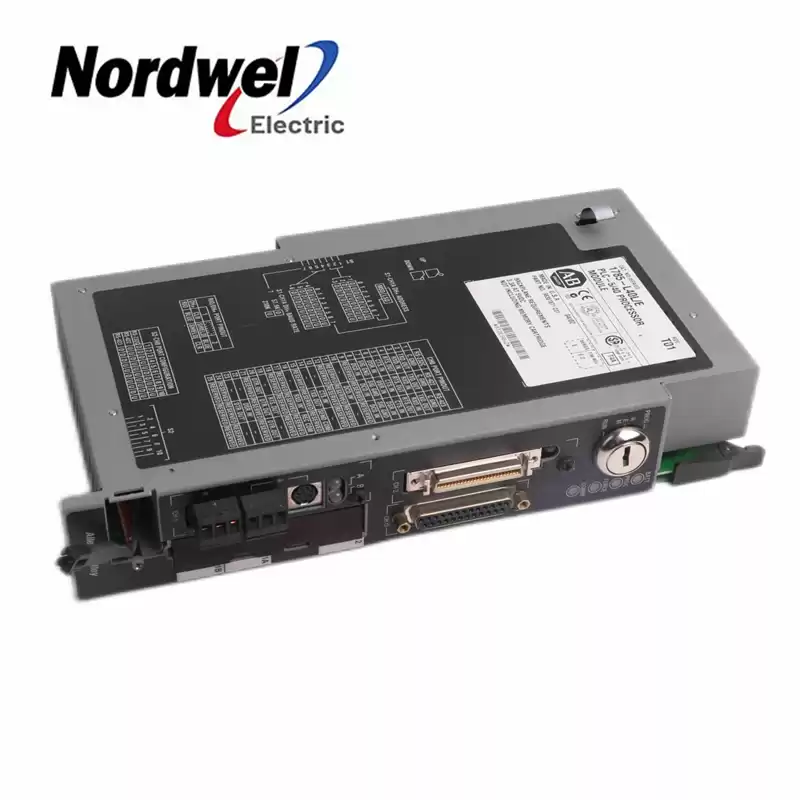

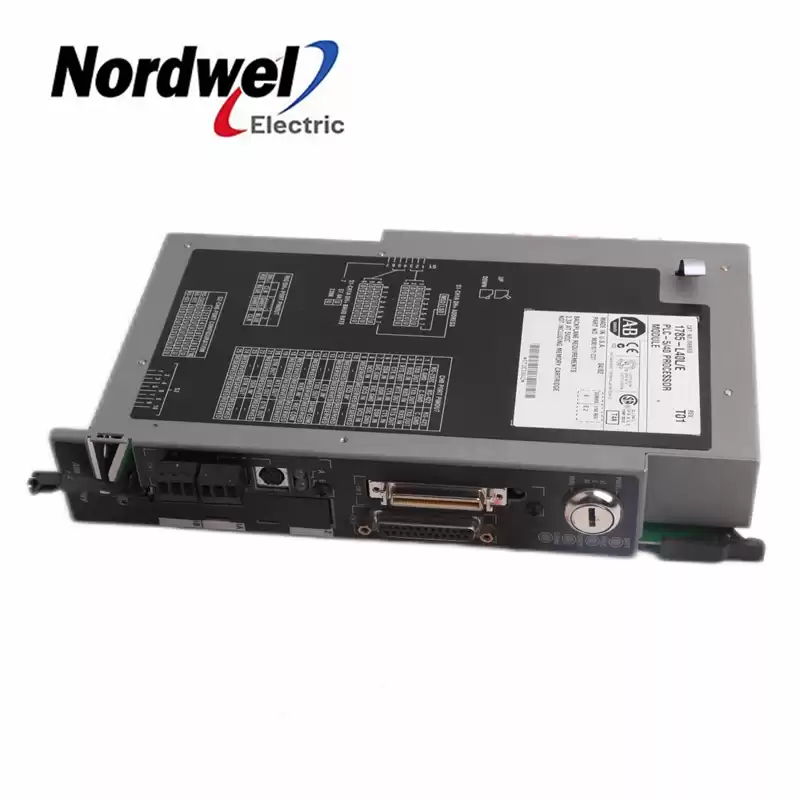

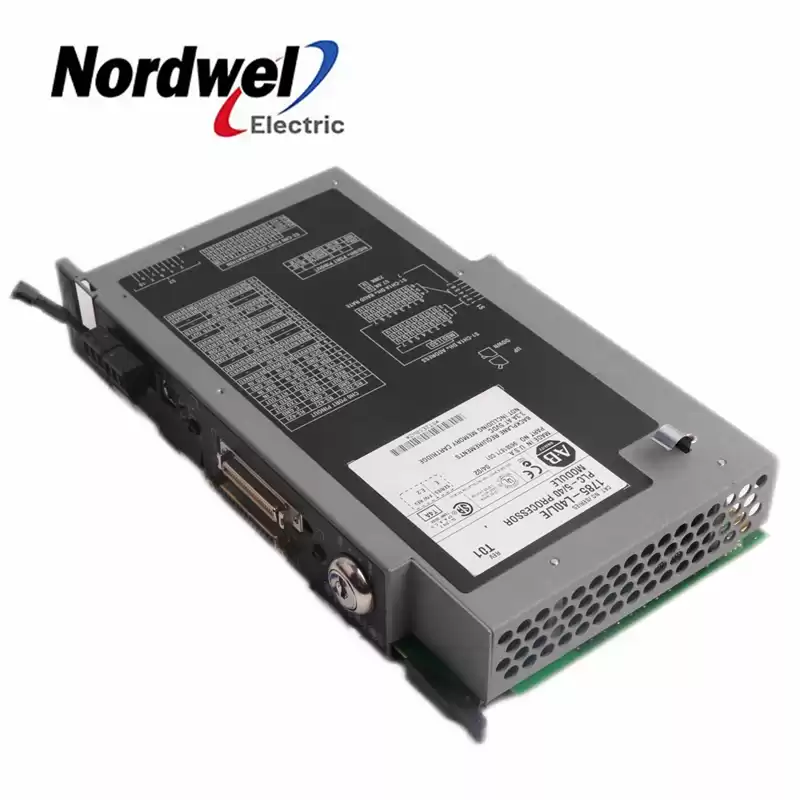

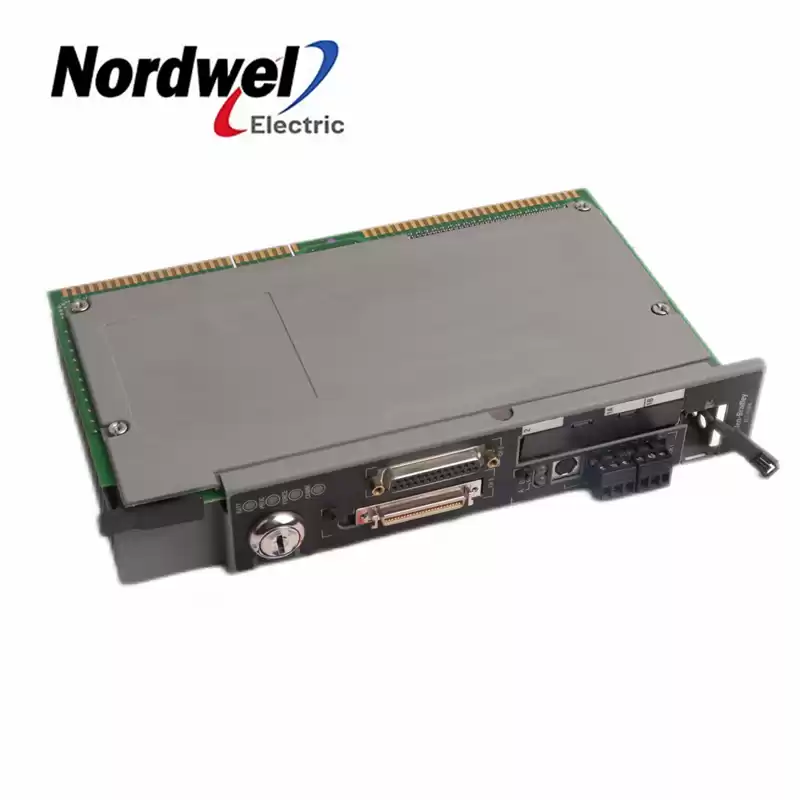

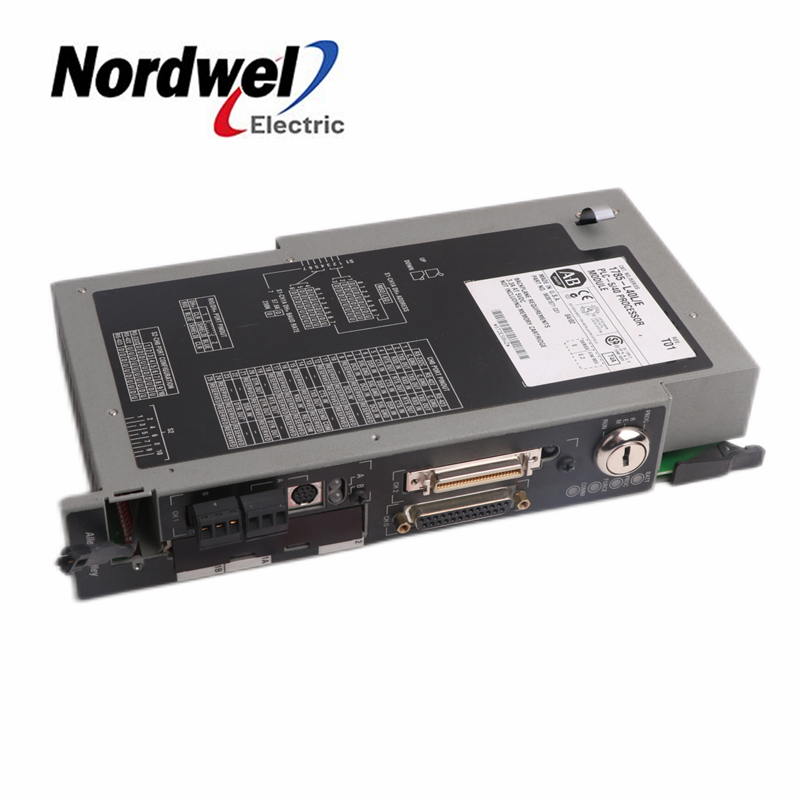

Technical Specifications for 1785-L40L
Manufacturer Automation
Brand
Part Number/Catalog No. 1785-L40L
Module Type Standard Processor
Processor PLC-5/40L
Max User Memory Words 48 Kilowords
Battery-Backed Static RAM Yes
EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) Yes
Protected Memory No
Max Total I/O 2048 (any mix) or 2048 in + 2048 out (complementary)
Max Analog I/O 2048
I/O Scan Time Per Rack 0.5 ms (ext. local), 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at
230.4 mbits/s
Max I/O Chassis Total 61
Max I/O Chassis Extended Local 16
Max I/O Chassis Universal Remote 32 Max. Per I/O Link
RS-232-C/422-A/423- A Ports 1
Control Coprocessor Expansion Port Yes
