The 1785-L80C has an internal circuit clock/calendar with ±5 min per month accuracy variation at 60 0C, with a timing accuracy of 1 program scan, and has a program scan time of 0.5ms per K word (in bit logic), and 2ms per K word.
|
|

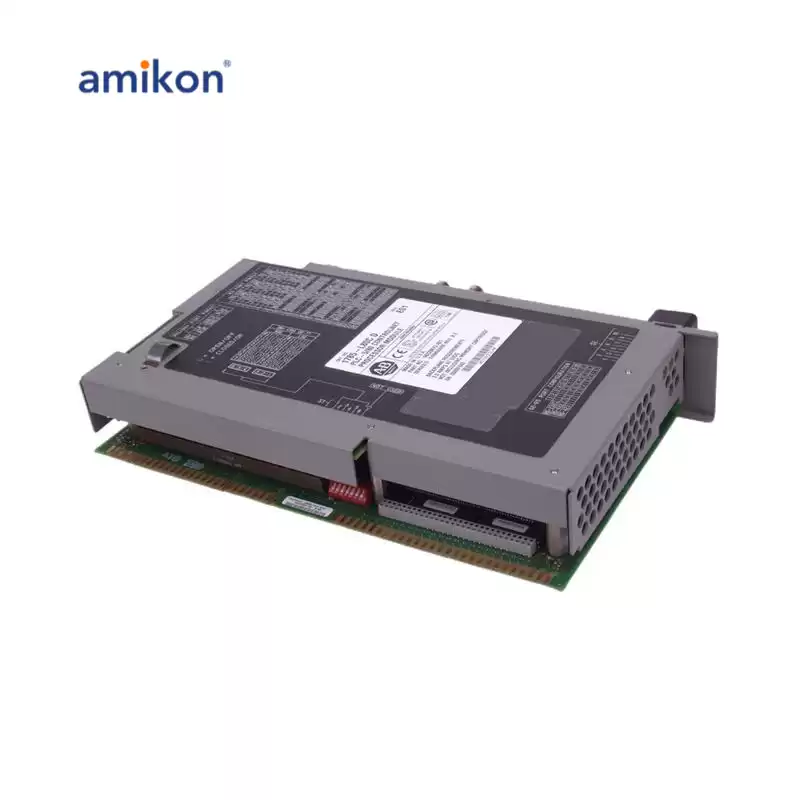

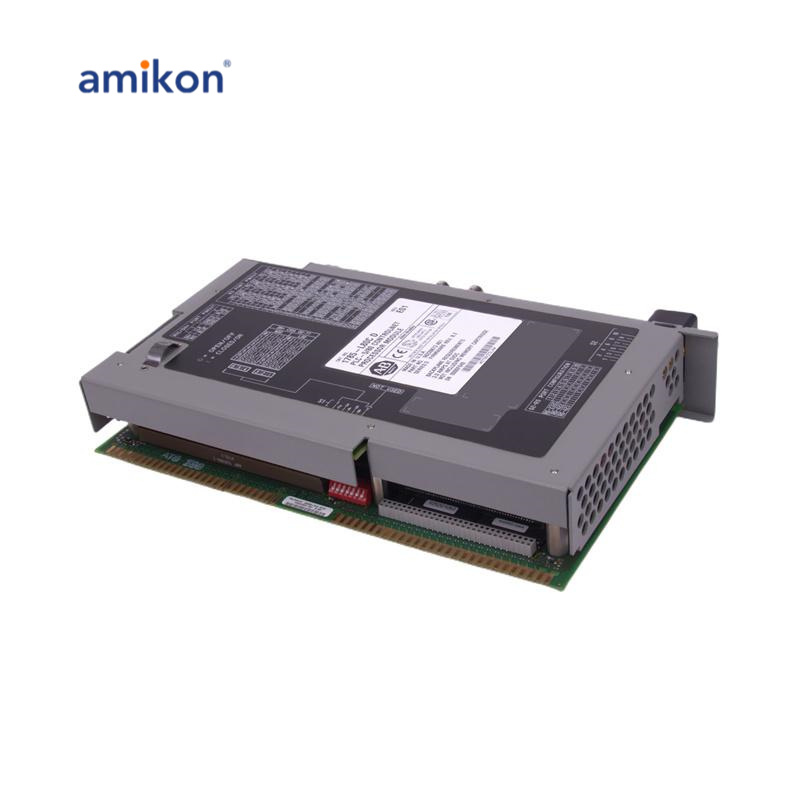

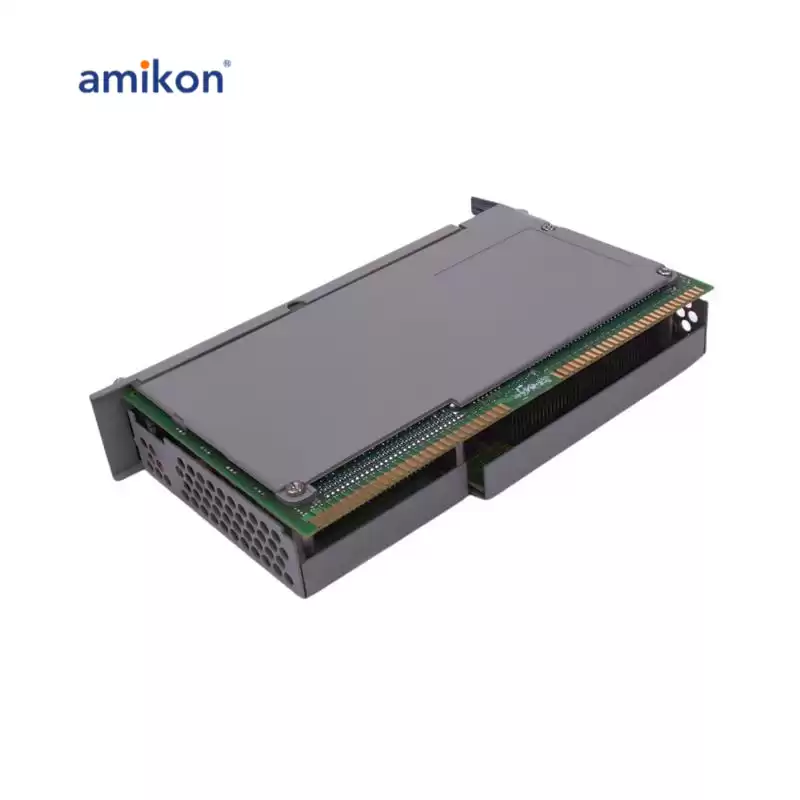

1785-L80C Description:
|

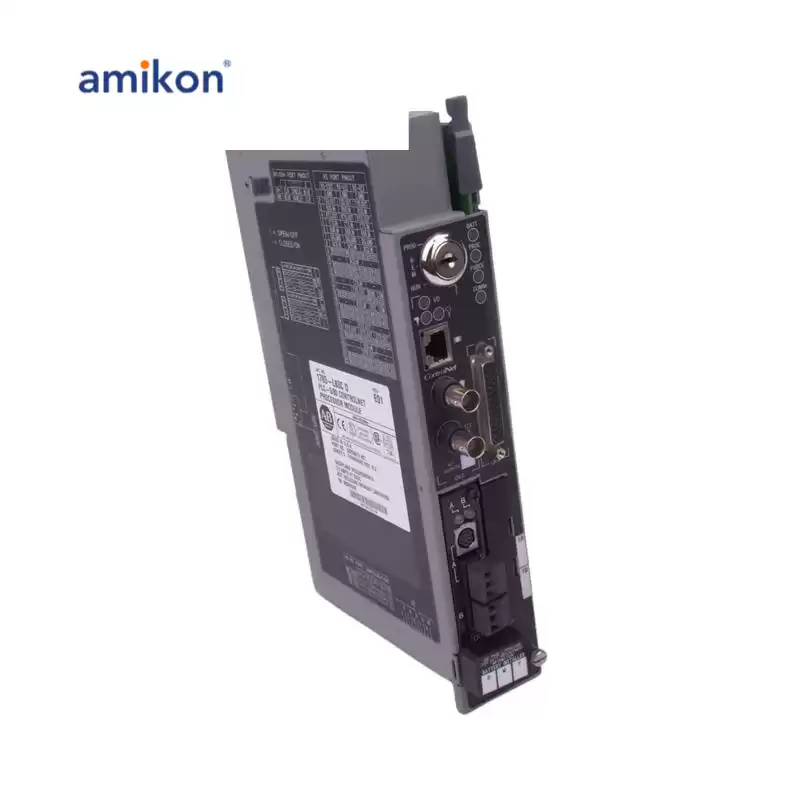

The controller has an RJ-45 type ControlNet Network Access Port (NAP) with a transfer speed of 5 megabits per second, and a 2-100ms user selectable update time on the network.
|
|
The module requires a backplane current of 3.3A at 5V DC and it has a maximum heat dissipation of 59 BTU/hour when operational.
|
|
Has a maximum I/O capacity of 3072.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
