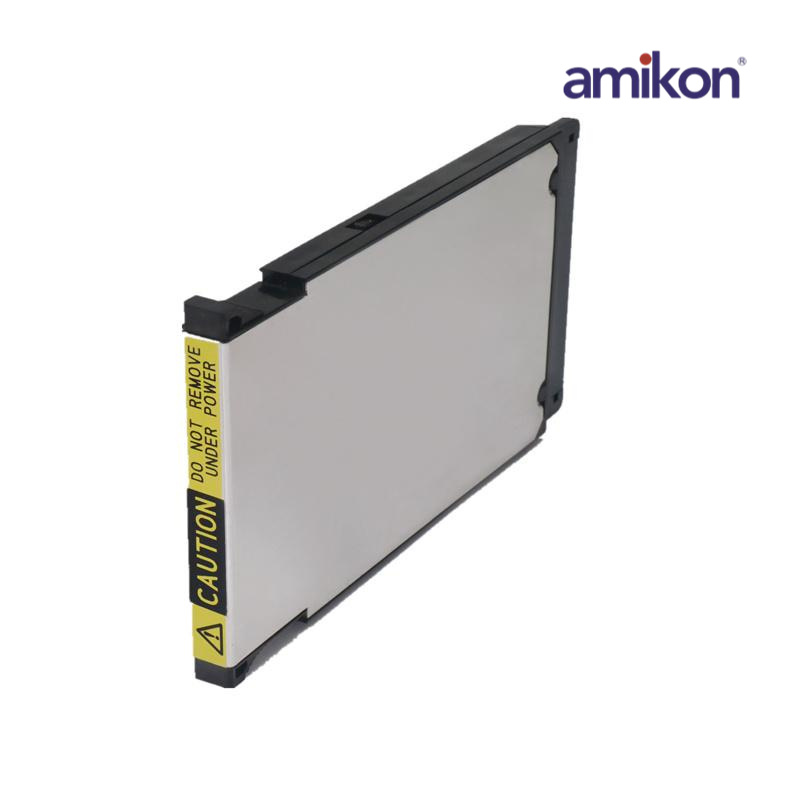

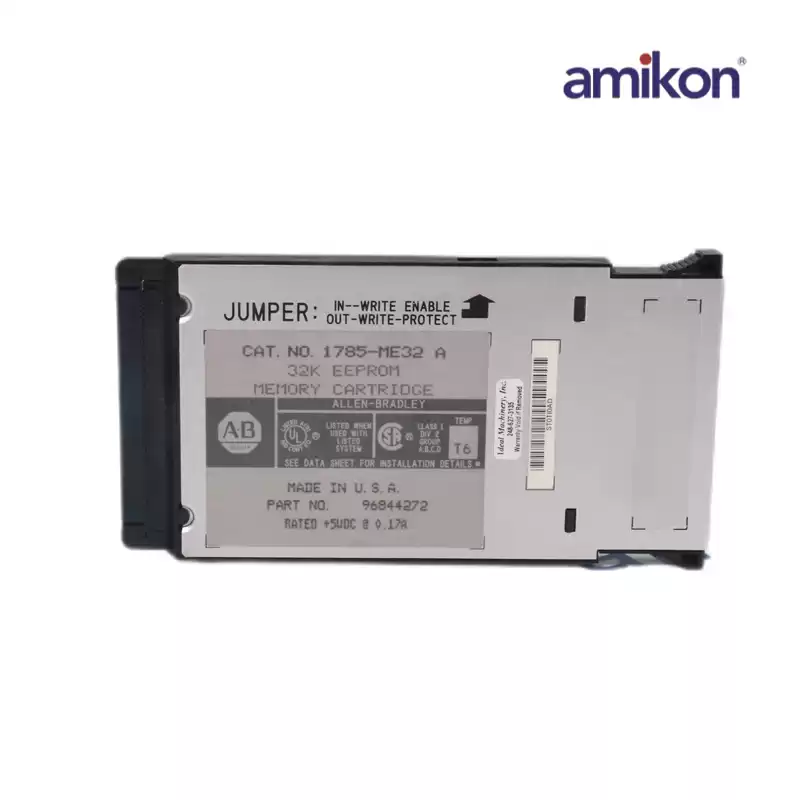

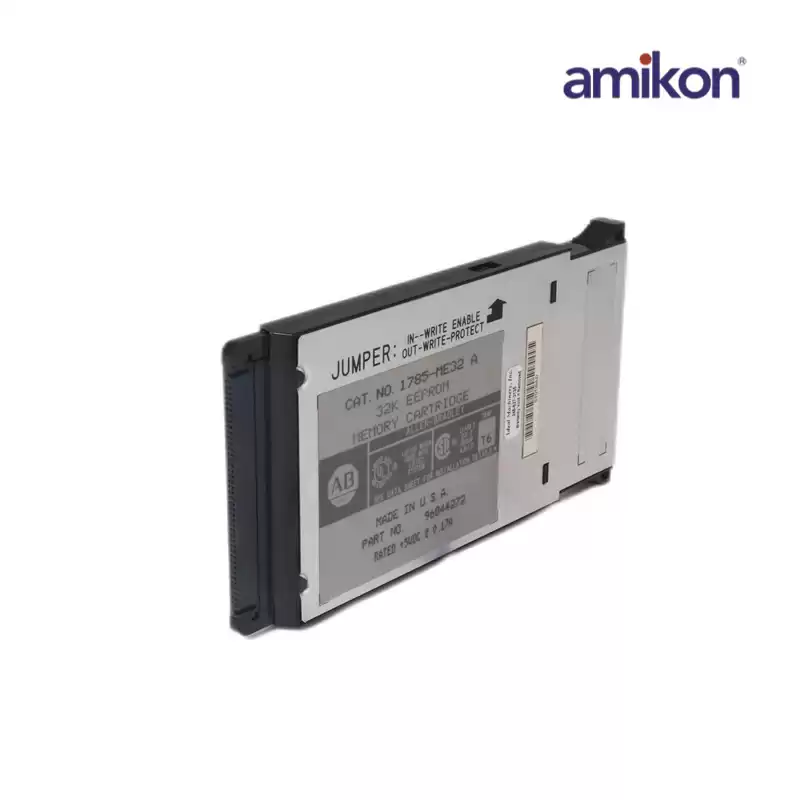

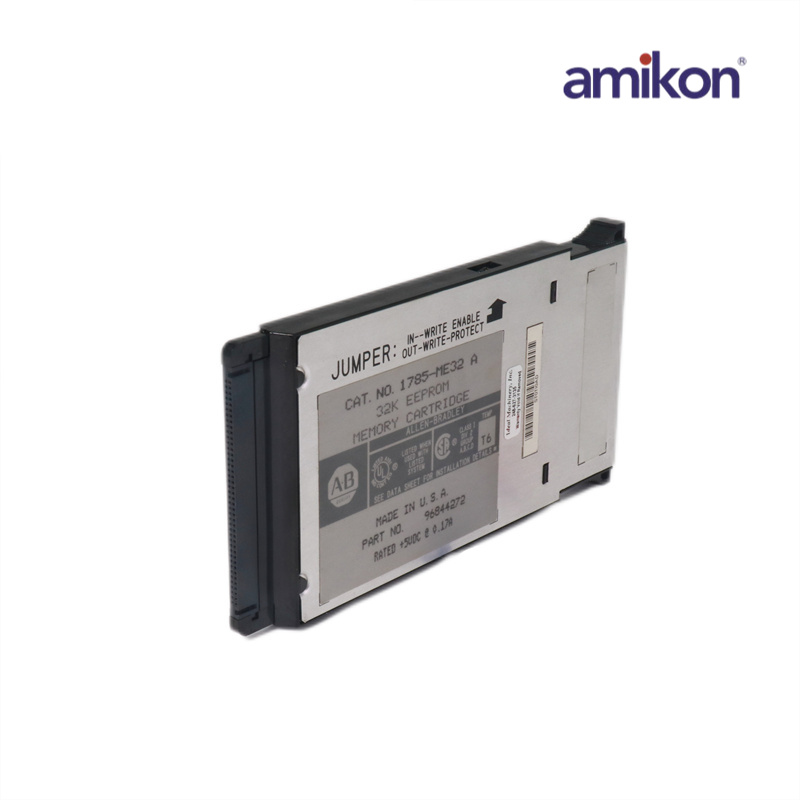

1785-ME32
|
|
Dimensions ：
|
13.5cmx7cmx1cm
|
Weight：
|
0.08KG
|
|
The 1785-ME32 module is a user-modifiable read-only memory (ROM) module which is erasable and it can be reprogrammed repeatedly through applications with a higher than normal power supply voltage. This module is used to store a small amount of data that must be stored when power is removed as in the calibration table or device configuration. Turn off all the power to the chassis and I/O processor before downloading the program from this module.
The 1785-ME32 has memory size of 32K. The 1785-ME32 can be used as a Backup Program. This module has an operating shock of 30g (3 pulses, 11 ms). The nonoperating shock of this module is 50g (3 pulses, 11 ms). This module comes with a Control Coprocessor Expansion Port. This module has an ESD immunity of 6 kV contact discharges and 8 kV air discharges. This module has a Radiated RF immunity of 10 V/m with 1 kHz sine-wave 80% AM from 30-2000 MHz and 1 V/m with 1 kHz sine wave 80% AM from 2000-2700 MHz.
|
|
