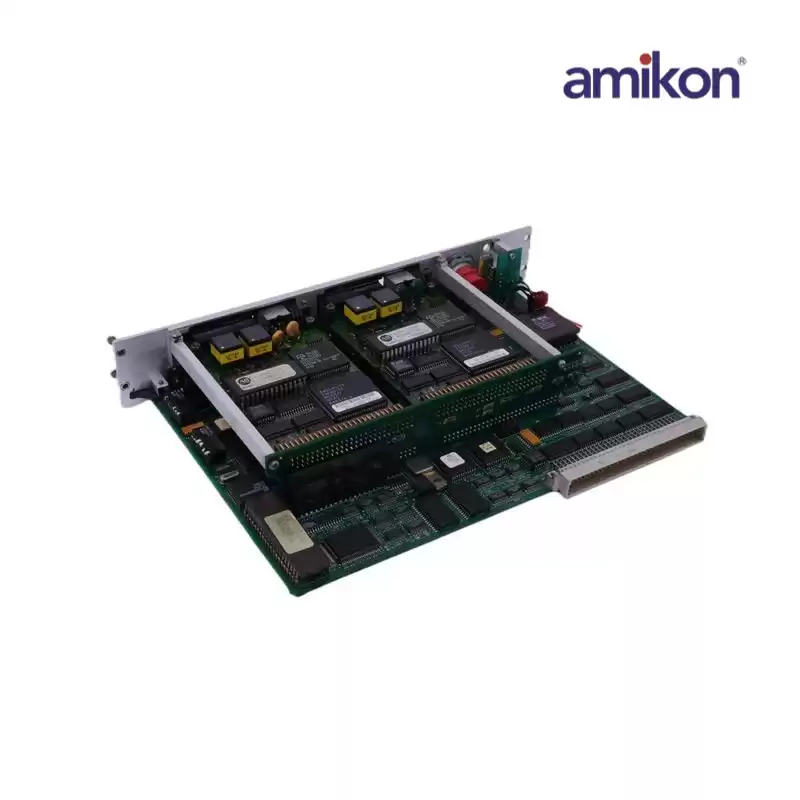

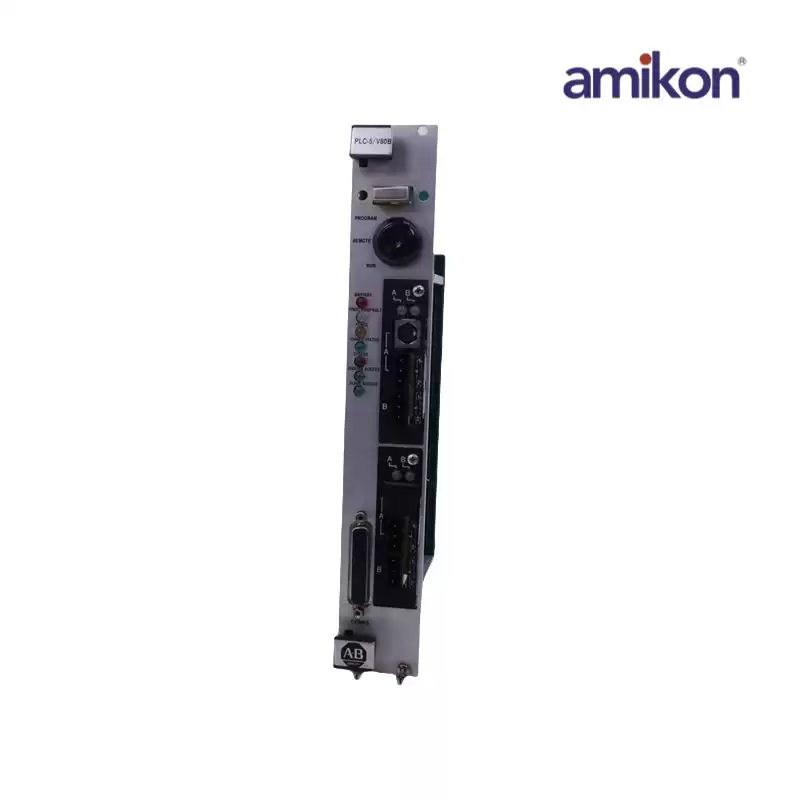

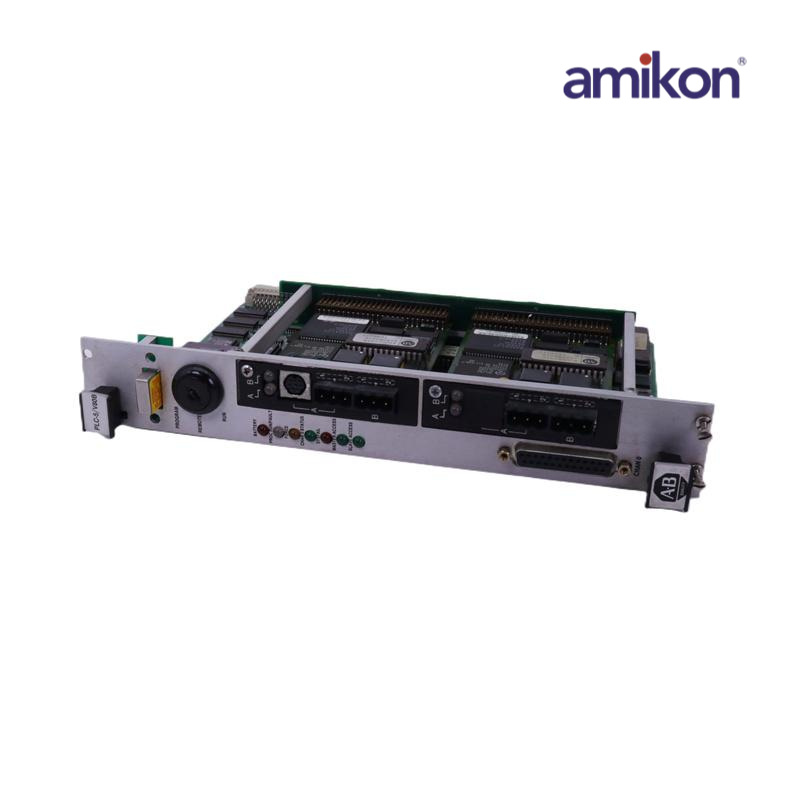

1785-V80B
|
|
Dimensions ：
|
5cmx27.6cmx15.8cm
|
Weight：
|
1.4KG
|
|
The 1785-V80B processor has 4 ports that can be configured either as DH+ or remote I/O ports, but there is no port for extended local I/O ports. The maximum number of I/O racks that can be connected to 1785-V80B is 23.1785-V80B can interface with VMEbus I/O modules through a VMEbus communication interface. 1785-V80B processors do not use EEPROM memory modules.
1785-V80B has program scan time of either 0.5 ms per 1000 words with bit logic, or 2 ms per 1000 words which is typical. The extended local I/O scan time is 0.5 ms, and it is 10 ms per rack for transmission rate 57.6 kbps, and 7ms for 115.2 kbps and 3 ms for 230 kbps.
|
|
