Technical Specifications for 1791-16B0
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
70 milliamps
|
|
Part Number/Catalog No.
|
1791-16B0
|
Voltage Range
|
5-12 Volts AC
|
|
Module Type
|
Digital Input Module
|
Isolation Voltage
|
20 Volts Continuous
|
|
Manufacture Year
|
2021
|
Surge Current
|
2 Amps
|
|
Product Package
|
Original Package
|
UPC
|
157651963955
|

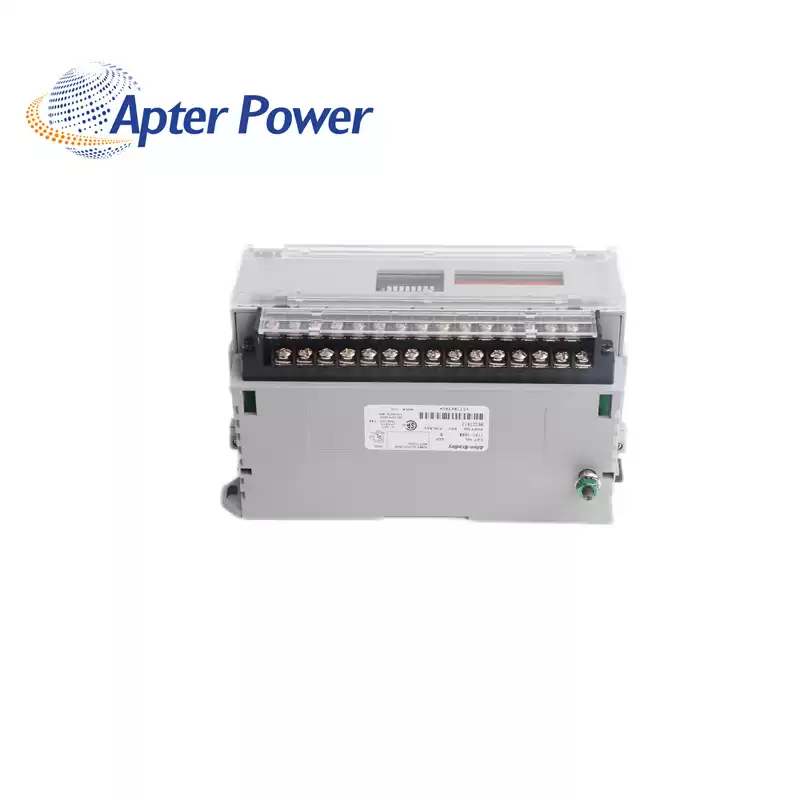

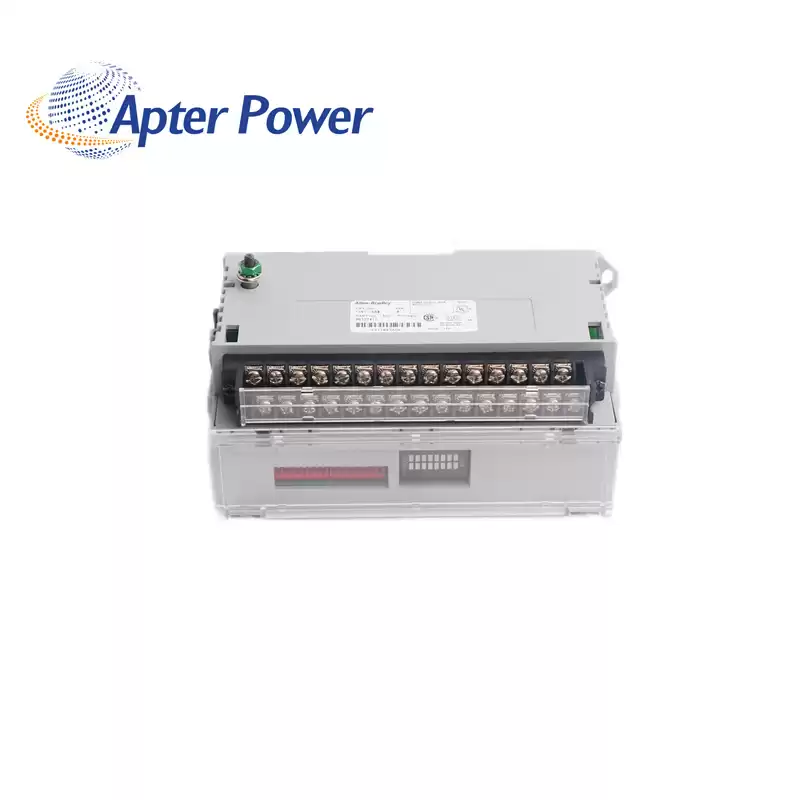

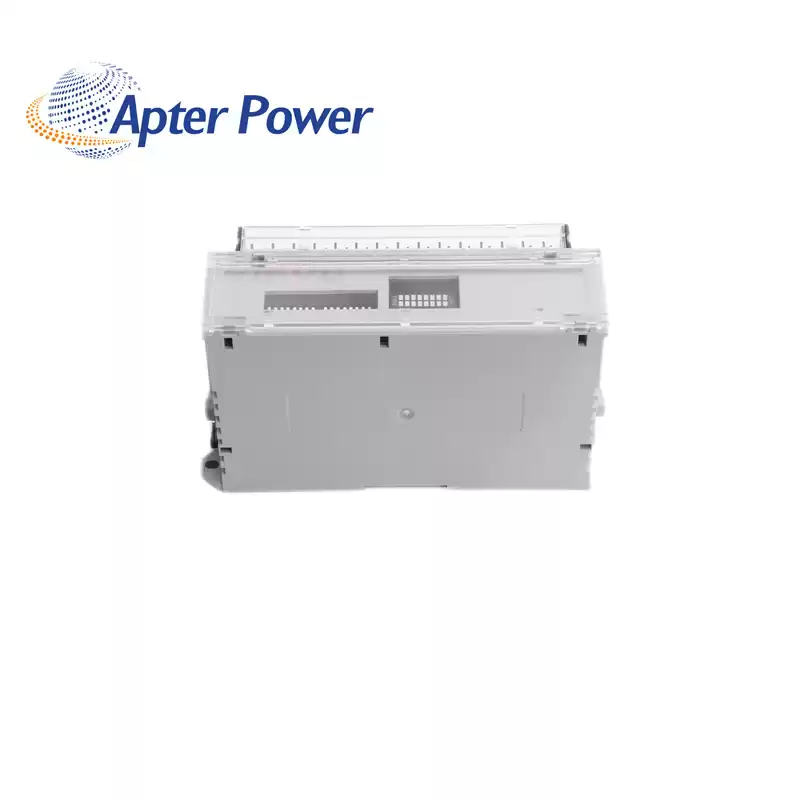

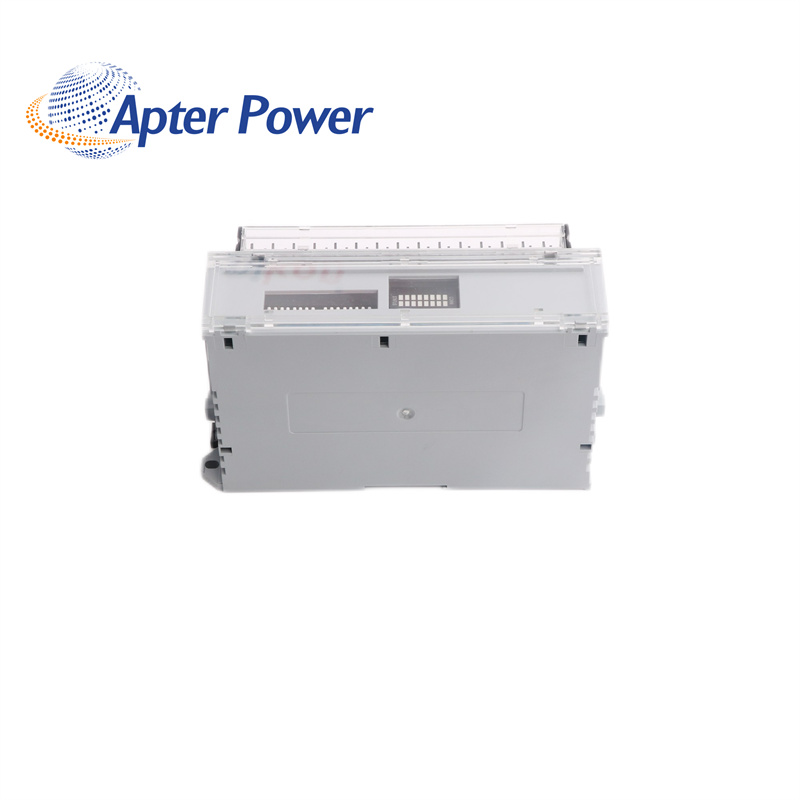

About 1791-16B0
|
1791-16B0 is compatible with various programmable logic controllers. Those are PLC-2, PLC-3, PLC-5/250, PLC-5, and SLC. The wiring connections for this module are easy to modify. A removable terminal strip feature is designed to replace or connect any wiring to the I/O block. You need to unscrew 2 captive screws from the terminal strip first before using it. Be aware of the technical input specifications of this I/O block. Be sure that any devices connected with this I/O block must have compatible voltage and current specifications.
The 1791-16B0 is a 16-point DC Block I/O module. This module has 16 DC inputs and requires an input power of 24 Volts DC. The 1791-16B0 converts DC power from the input to appropriate DC power level that can be used by processor. The maximum input impedance of this I/O block is 3.4k ohms. There are several typical input devices for block I/O, those are proximity switches, limit switches, selector switches, float switches, and pushbutton switches.
|
