Technical Specifications for 1791-OB16
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
70 milliamps
|
|
Part Number/Catalog No.
|
1791-OB16
|
Voltage Range
|
19.2-30V dc
|
|
Module Type
|
Block I/O Module
|
Supply current
|
80 mA
|
|
Manufacture Year
|
2022
|
Power dissipation
|
11.62 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10612598127037
|

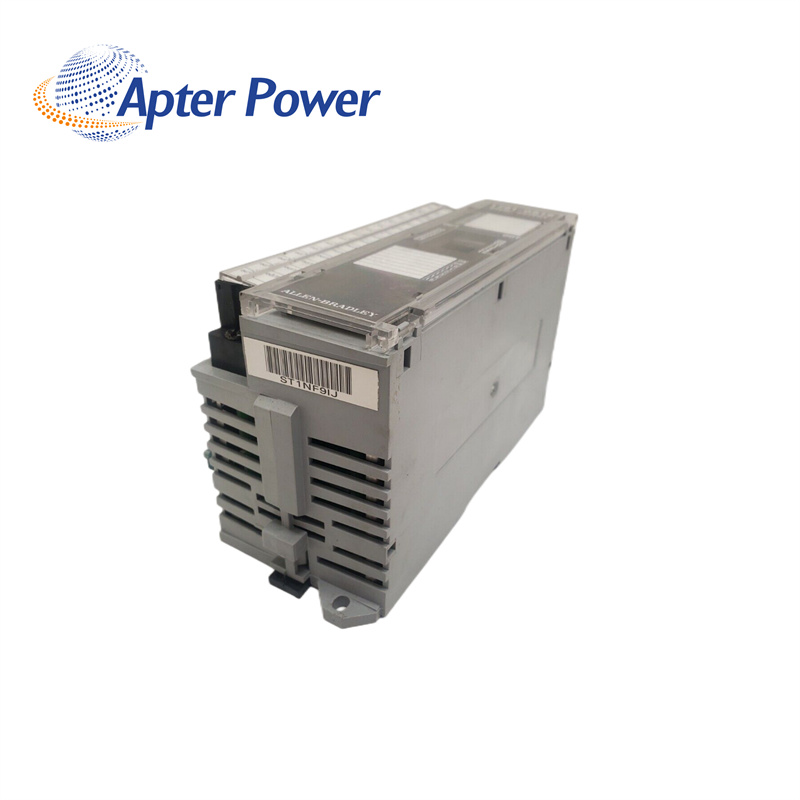

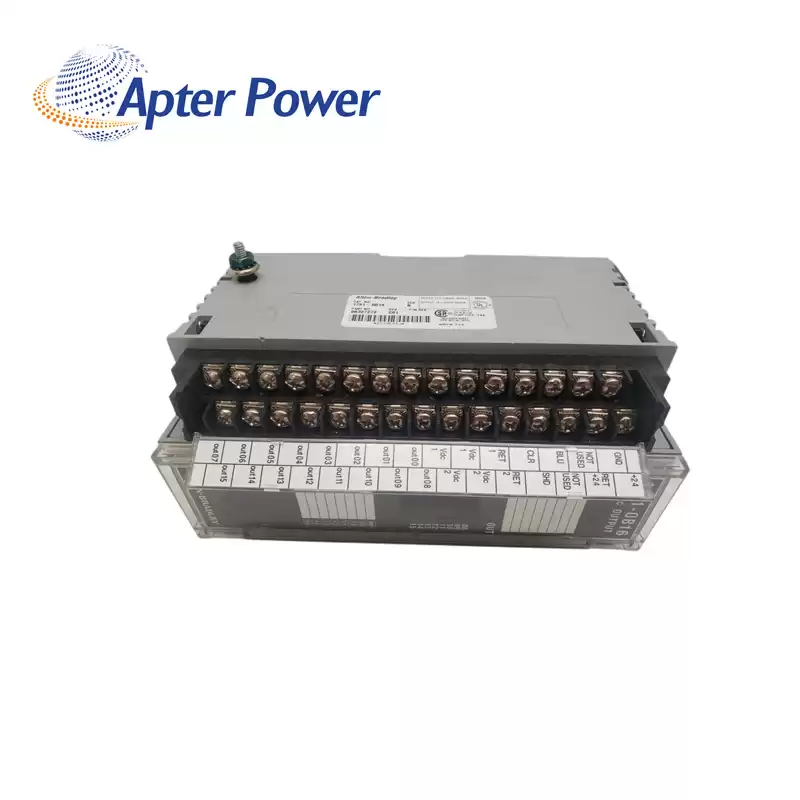

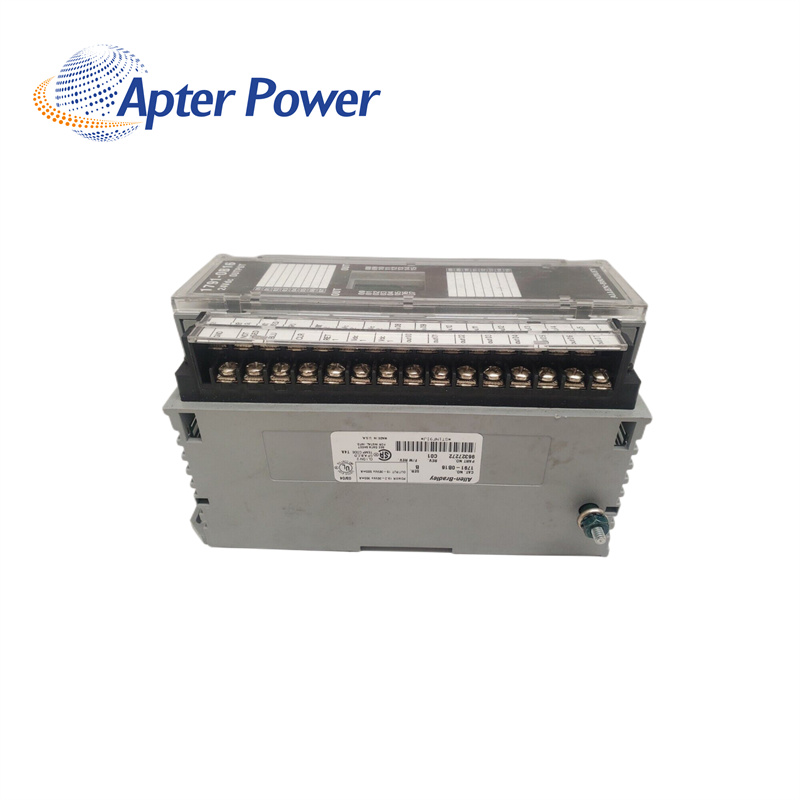

About 1791-OB16
|
The 1791-0B16 module is a Series B with 24V DC nominal voltage and 300mA current requirement. It has 16 outputs per block and a dimension of 6.95 x 2.7 x 3.85 in. It has output current rating of 500mA at 60 °C for vertical mounting and one of 250mA at 60 °C for horizontal mounting. It has a maximum power dissipation of 12.5W and maximum thermal dissipation of 43BTU/hr.
The 1791-0B16 is a 1791 Discrete DC Block I/O Module. It is a remote I/O device containing all necessary elements like a programmable controller interface, power supply, input/output connections, and a signal-generating circuit.
|
