Technical Specifications for 1791DS-IB12
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
220 Miliamperes
|
|
Part Number/Catalog No.
|
1791DS-IB12
|
Input Voltage
|
11 Volts DC
|
|
Module Type
|
Input Module
|
Signal Delay
|
30 (+/- 7) ms
|
|
Manufacture Year
|
2022
|
Power Consumption
|
110 mA at 24 Volts DC
|
|
Product Package
|
Original Package
|
UPC
|
10612598318893
|

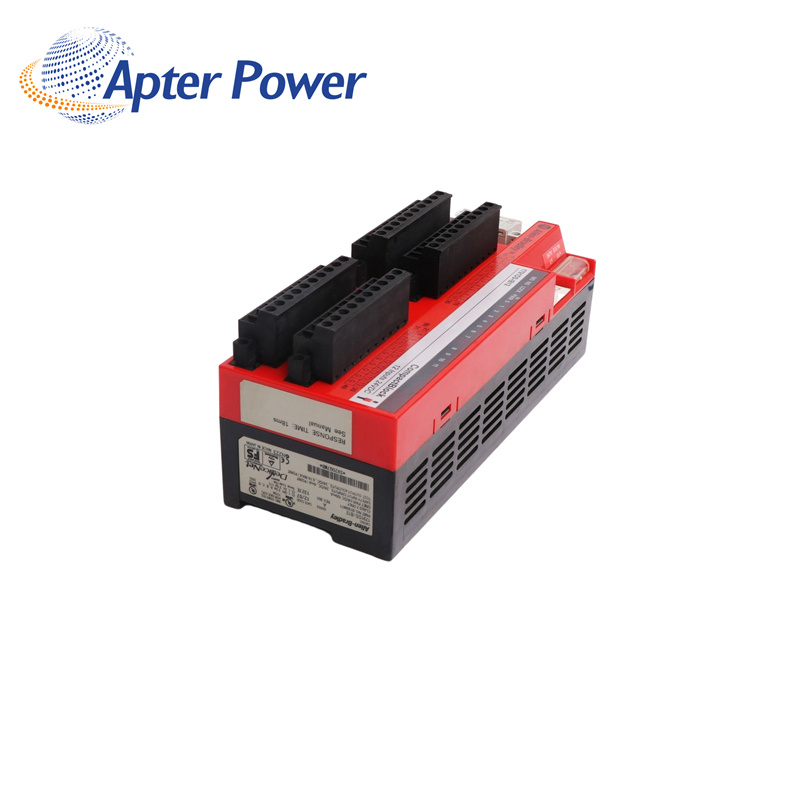

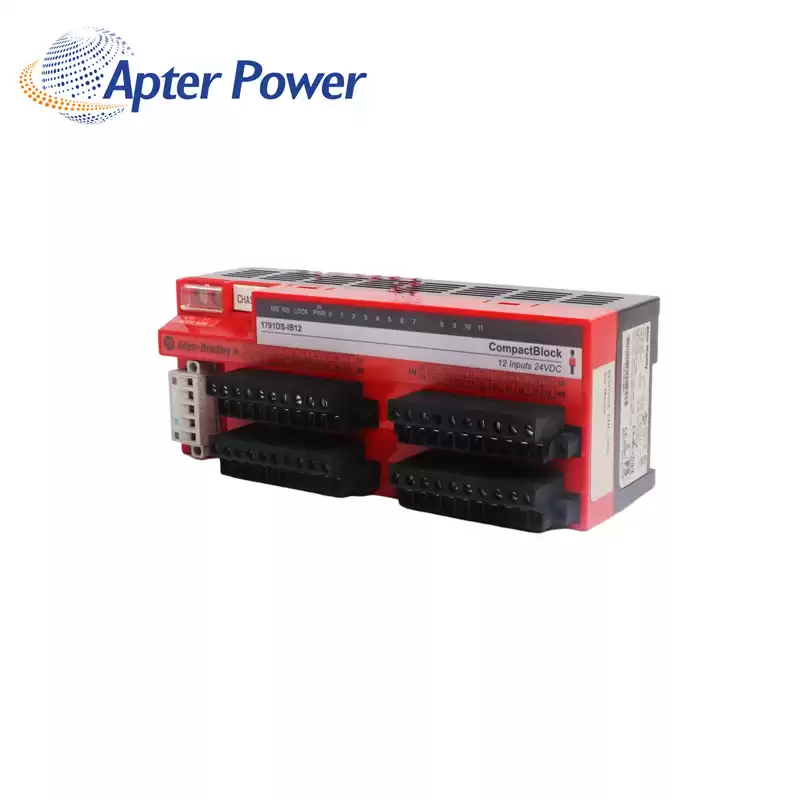

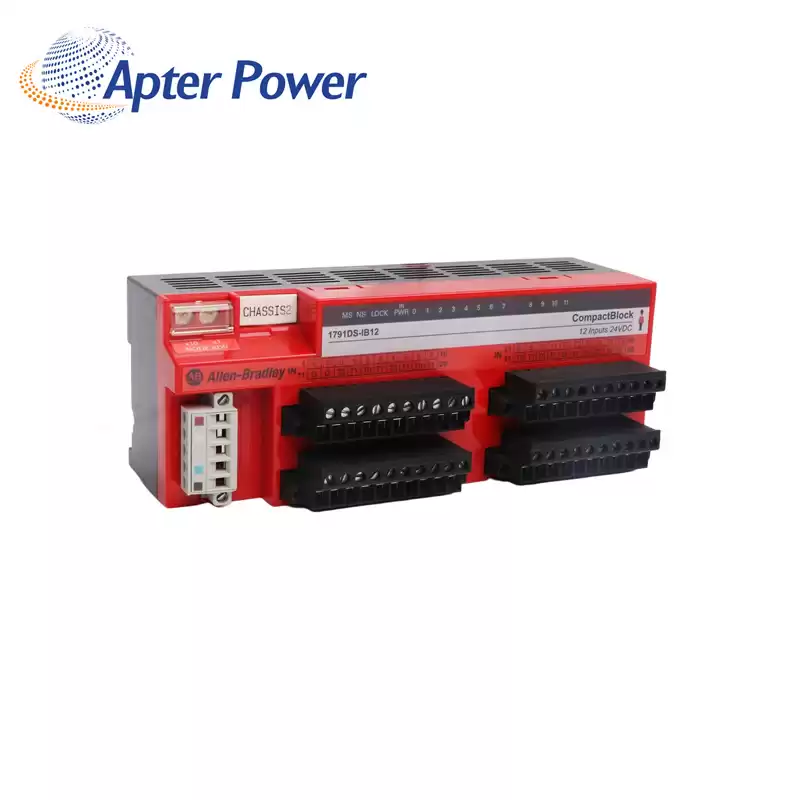

About 1791DS-IB12
|
The 1791DS-IB12 CompactBlock DeviceNet module is a safety I/O module that has 12 current sinking safety inputs, as well as 4 current sourcing test outputs. Its input current is 6 mA, with a maximum current of 1 mA when in the off-state. The voltage is a minimum of 11 Volts DC when in the on-state and a maximum of 5 Volts DC when in the off-state.
The module’s output has a 1.2 Volts maximum residual voltage, a 0.7 A rated output current, and a 0.1 mA maximum leakage current. The 1791DS-IB12 module’s I/O power supply voltage ranges from 20.4 to 26.4 Volts DC, with a nominal voltage of 24 Volts DC, while its communications power supply voltage is 11 to 25 Volts DC, and its communications current consumption is 110 mA at 24 Volts DC.
|
