1793-OB16P/AB Digital Output Module

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1793-OB16P

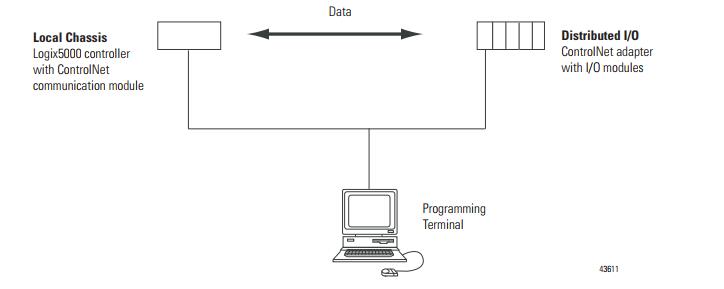

In this example, the Logix5000 controller uses a ControlNet communication module in the local chassis to connect to the ControlNet network. The distributed (remote) I/O has a ControlNet adapter to connect it to the ControlNet network.

Make sure: • all wiring and cabling is properly connected • the communication driver [such as, AB-PCIC(S)-1] is configured for the programming workstation Setting a Requested Packet Interval (RPI) When you configure an I/O module, you define the RPI for the module. The RPI specifies the period at which data updates over a connection. For example, an input module sends data to a controller at the RPI that you assign to the module. Configure the RPI in milliseconds. RPIs are only used for modules that produce or consume data. For example a local ControlNet communication module does not require an RPI because it is not a data-producing member of the system; it is used only as a bridge. In Logix5000 controllers, I/O values update at a period that you configure via the I/O configuration folder of the project. The values update asynchronously to the execution of logic. At the specified interval, the controller updates a value independently from the execution of logic. Set the RPI only as fast as needed by the application. The RPI determines the number of packets per second on a connection. Each I/O module has a limit of how many packets it can handle per second. If you exceed this limit, the module cannot open any more connections.

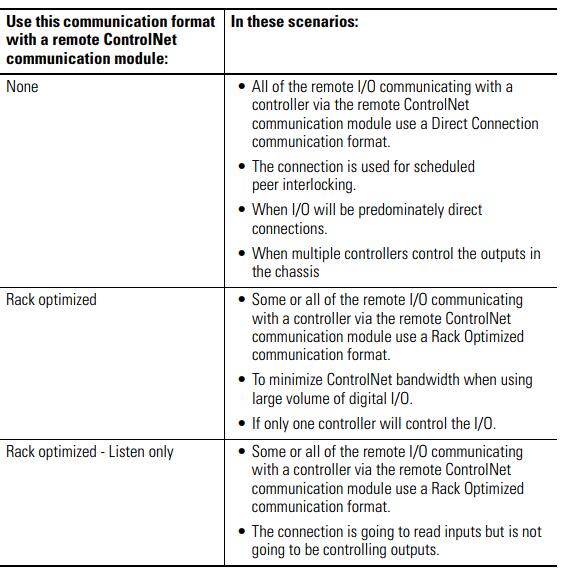

When you configure a remote ControlNet communications module or an I/O module, you select a communication format. The communication format you choose determines the data structure for the tags that are associated with the module. Many I/O modules support different formats. Each format uses a different data structure. The communication format that you choose also determines: • Direct or rack-optimized connection • Ownership of outputs For a remote ControlNet communications module, you must select one of the formats listed below

For I/O modules, the available communication formats depend on the module type. In general:

OTHER RECOMMENDATION

Our Advantages:

If you have any question pls do not hesitate to contact us.We can supply all kind of the automation parts,if you want to purchase parts pls send the parts model to my mail, I will prompt reply you as I receive the mail.Hope anyone inquire from us.    Waiting for your inquiry.
