Manufacturer Automation
Part Number/Catalog No. 1794-ADN
Brand

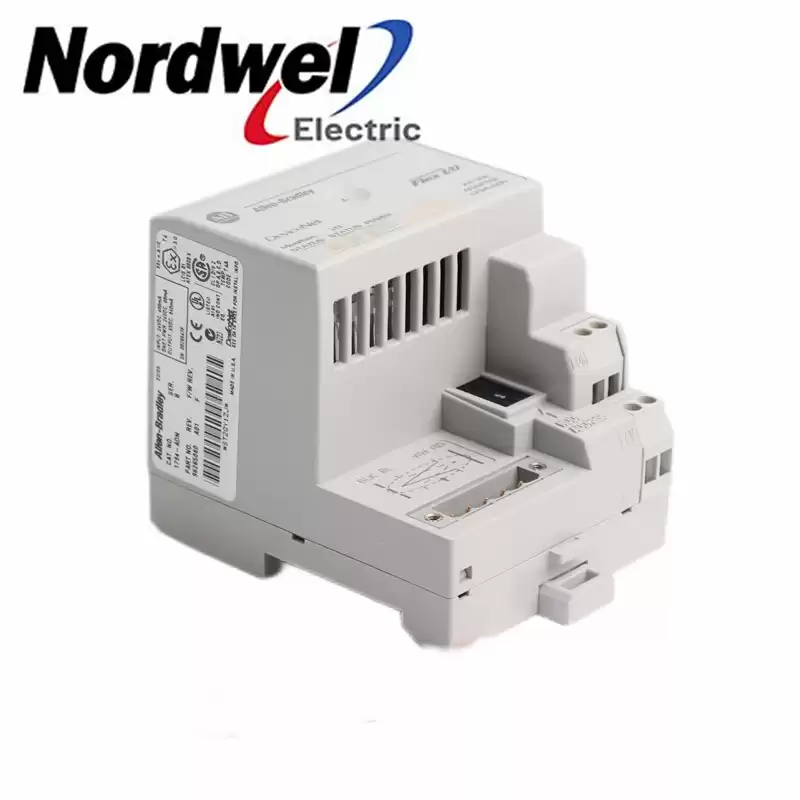

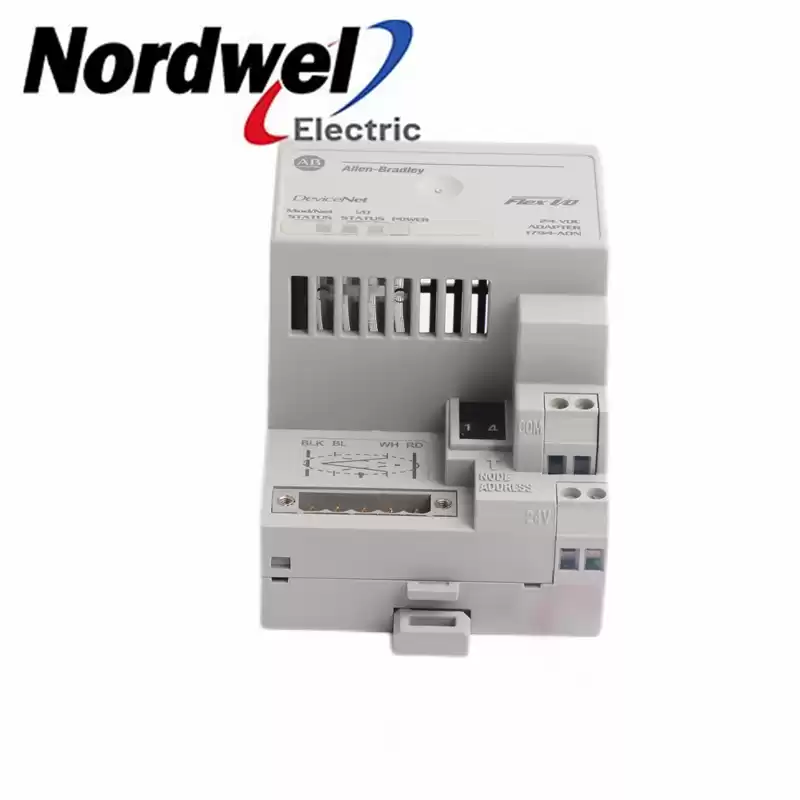

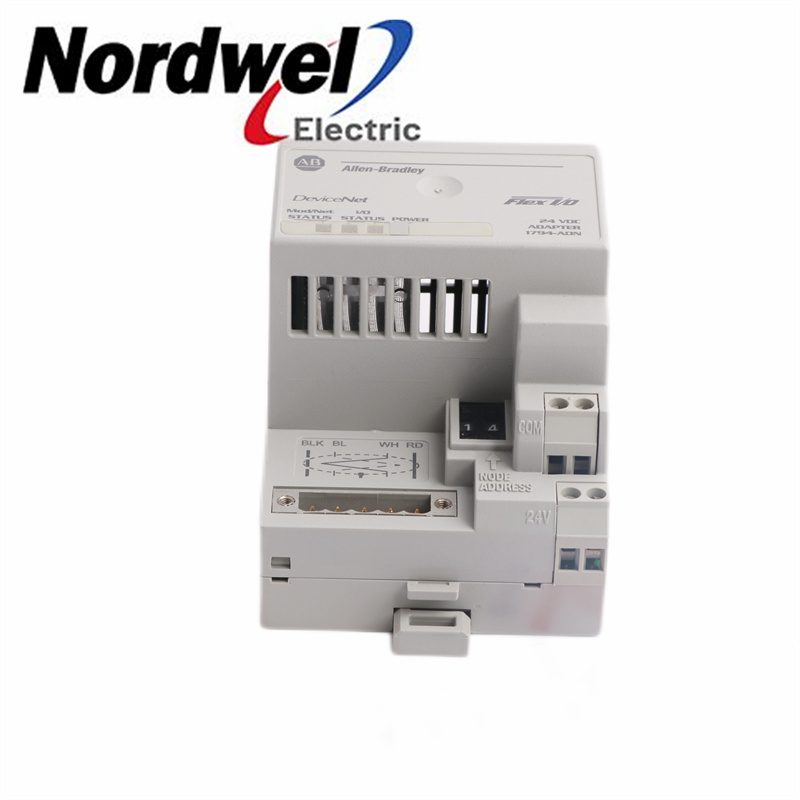

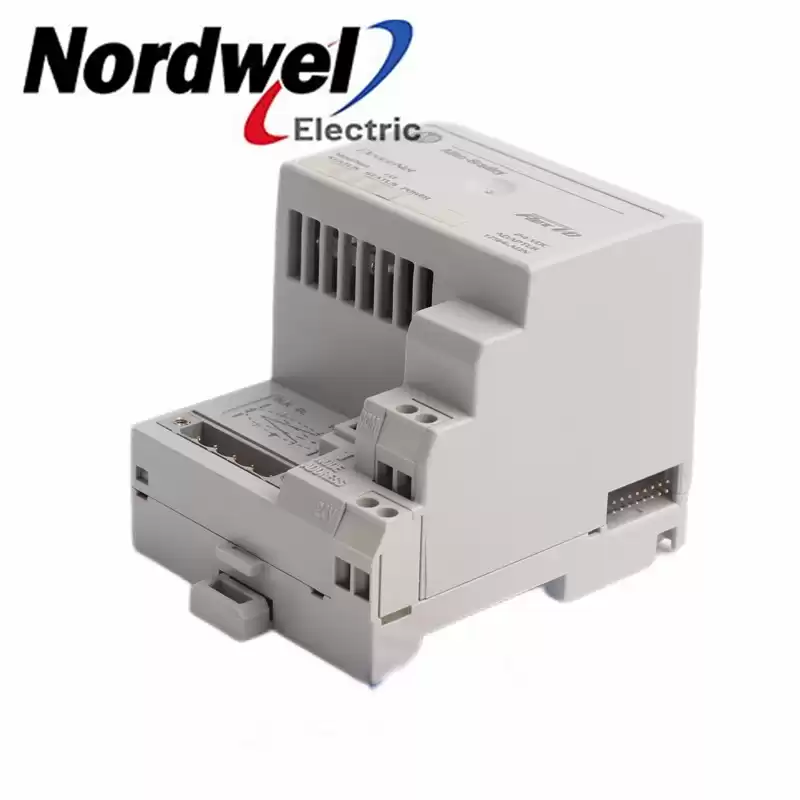

Product Description: 1794 DeviceNet Adapter Module
Communication Port: One (1) DeviceNet
Data Transfer speed: 125KB; 250KB; 500KB
Indicators: Mod/Net Status - red/grn; I/O Status - red/grn
Mounting: DIN Rail; Panel Mounting
DeviceNet cable: Belden YR-29832 or equivalent
Wire Size: 12 gauge stranded maximum, 3/64 inch (1.2mm) insulation max.
Operating Temperature: 0 to 55 C (32 to 131 F)
Storage Temperature: -40 to 85 C (-40 to 185 F)
Vibration: Tested 5 g @ 10-500Hz per IEC 68-2-6
Operating Shock: 30 g peak acceleration, 11(+1)ms pulse width
Product Type DeviceNet Adapter
Voltage 24 Volts DC
Input Voltage Range 19.2 to 31.2 Volts DC
Flexbus Output Current 640 mA maximum 5 Volts DC
Isolation Voltage 50 Volts Continuous
Power Consumption 90 mA maximum
Power Dissipation 7.6W maximum at 19.2 Volts DC
Communication Rate 125KB-500KB
