1794-AENT
|Rated 5.0

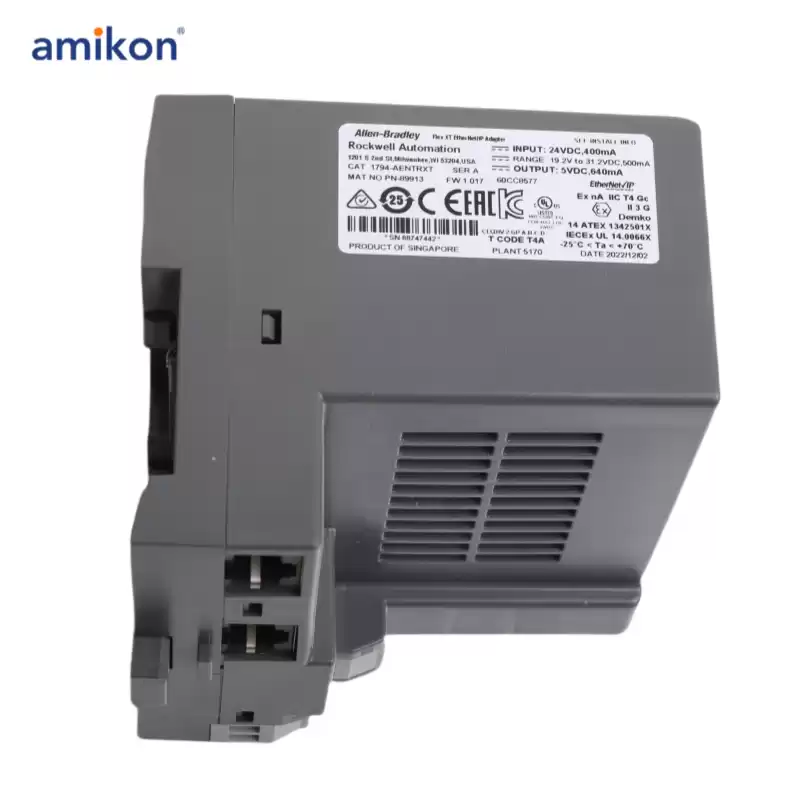

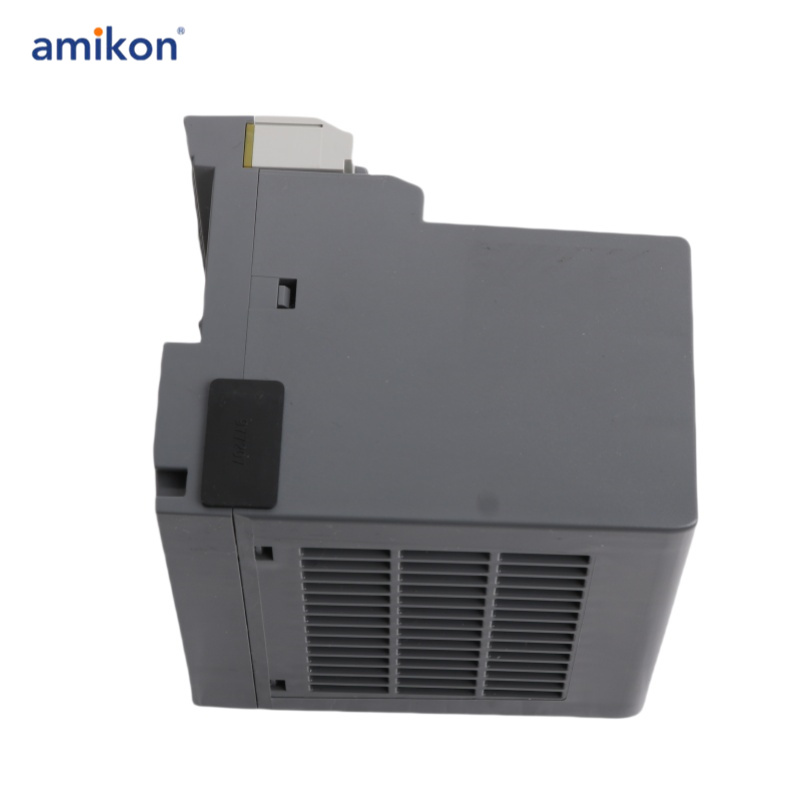

1794-AENT is a Flex I/O communication adapter. This adapter is a DIN rail mounted device, which features One (1) Ethernet communication port, used for connection Flex I/O rack to a central, ethernet enabled controller.
|
Part Number/Catalog No.
|
1794-AENT
|
|
Product Type
|
Flex I/O Ethernet/IP Adapter
|
|
Thermal Dissipation
|
24.9 BTU/hr @ 19.2V DC
|
|
Power Dissipation
|
7.3 W max @ 19.2V DC
|
|
Power Consumption
|
550 mA max, 440 mA max at 24V DC
|
|
Product Description
|
Ethernet Adapter Module
|
|
Communication Port
|
One (1) RJ45
|
|
Supported Protocol
|
Ethernet I/P
|
|
Supported topologies
|
Linear
|
|
Data Transfer speed
|
10 to 100 Mbps
|
|
Indicators
|
Mod Status; Network Status; Link Status
|
|
Mounting
|
DIN Rail
|
|
Ethernet cable
|
RJ45 Cat.5
|
|
I/O Capacity
|
8 Modules
|
|
Communication Rate
|
10/100 Mbps
|
|
Input Voltage Range
|
19.2 to 31.2 Volts DC
|
|
Nominal Input Voltage Rating
|
24 Volts DC
|
|
Isolation Voltage
|
50 Volts Continuous
|
|
Flexbus Current
|
640 mA maximum
|
The 1794-AENT is a communication adapter designed for the Flex I/O system, enabling connectivity to Ethernet networks for data exchange with Ethernet-capable controllers. This module supports up to eight Flex I/O modules, accommodating discrete and analog input/output modules for versatile automation needs.
The Flex I/O family provides a compact and cost-efficient solution for distributed I/O configurations. The 1794-AENT facilitates this through its single RJ45 port, supporting the Ethernet/IP protocol with communication speeds of 10/100 Mbps. It is suitable for linear network topologies.

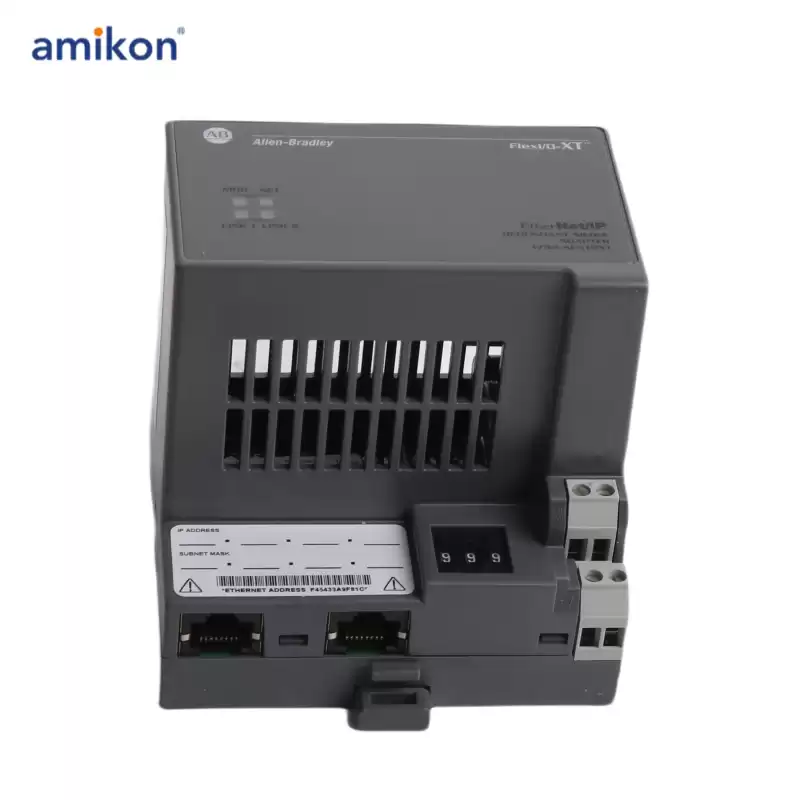

Network addressing for the 1794-AENT can be configured using its built-in thumbwheel switches or via a DHCP server. By default, the thumbwheel switches are set to 999.
When wiring the module, the recommended wire size is between 0.33 and 3.31 mm² (22 to 12 AWG) stranded copper wire, with an insulation rating of at least 75 °C (167 °F) and a maximum insulation thickness of 1.2 mm (3/64 in.). Terminal screw torque should be set to 0.8 Nm (7 lb-in.). The module has compact physical dimensions of 87 x 94 x 92 mm (3.4 x 3.7 x 3.6 in.) and weighs approximately 227 g (8.01 oz.).
The 1794-AENT can act as a remote I/O adapter for various control systems, integrating seamlessly into advanced industrial automation setups.
