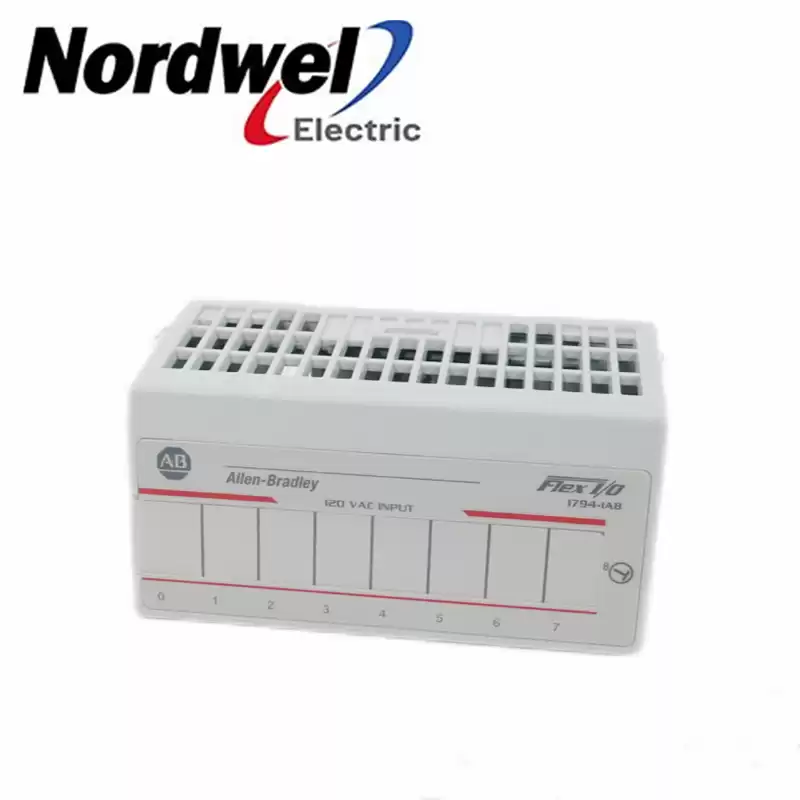

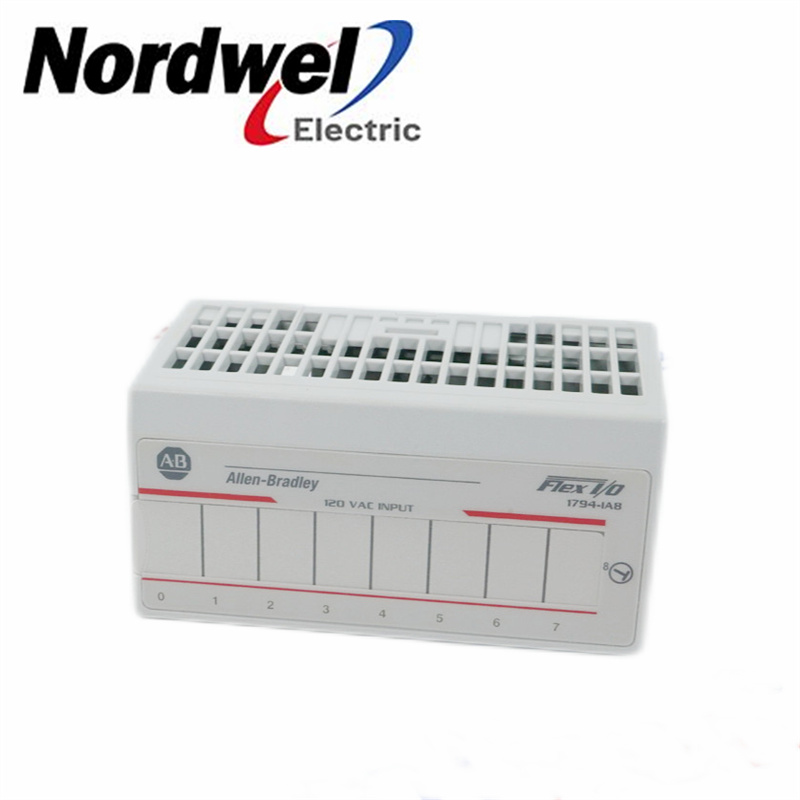

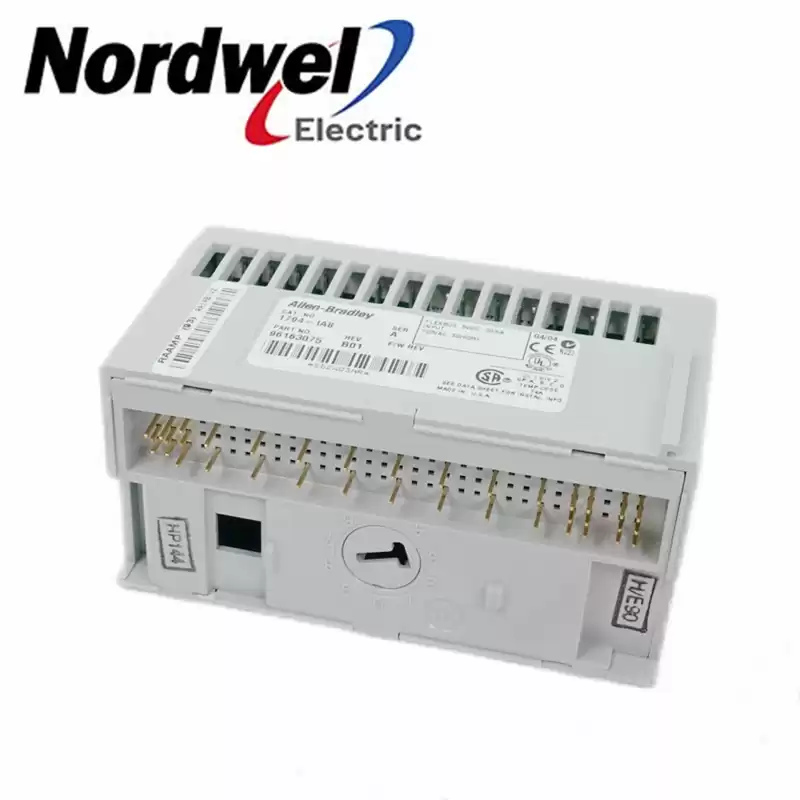

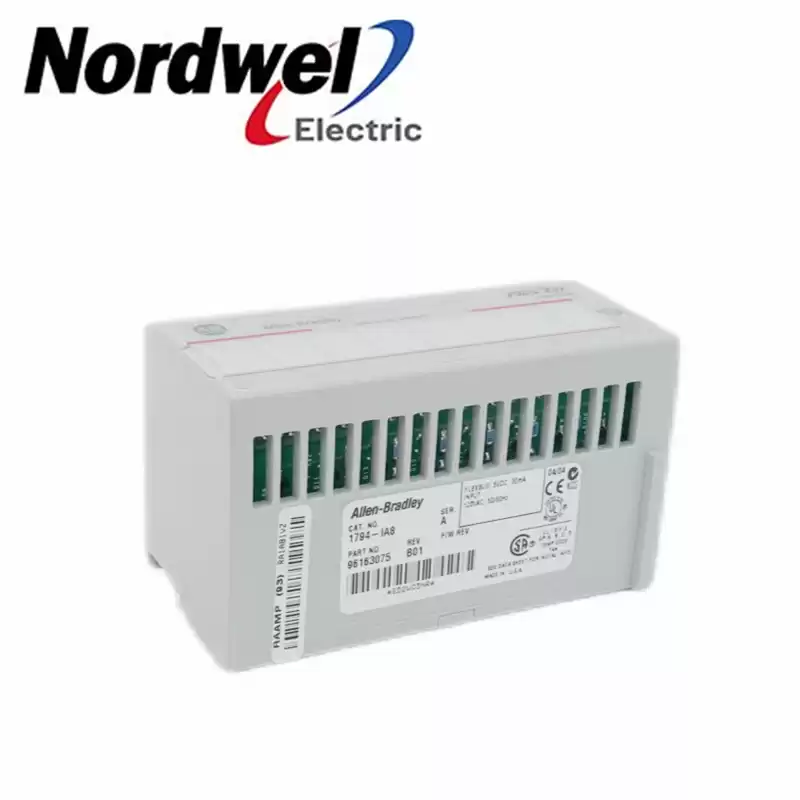

| 1794-IA8 | Flex I/O AC Digital Input Module


  • Description | 1794-IA8 | Flex I/O AC Digital Input Module
  • CertificationCOO
  • Dimensions10.2 x 5.1 x 5.1 cm
  • Manufacture YearThe latest year
  • Weight0.1 kg
  • Part Number1794-IA8
  • Place of OriginUSA

Manufacturer Automation
Brand
Part Number/Catalog No. 1794-IA8
Product Type Flex I/O AC Digital Input Module
Inputs 8 Non-Isolated
On-state Voltage min. 65V AC
On-state Voltage max. 132V AC
On-state Current min. 7.1mA
On-state Current max. 14.32mA
Off-state Voltage max. 43V AC
Off-state Current min. 2.9mA
Nominal Input Current 12 mA @ 120V AC
Flexbus Current 30mA @ 5V DC
Power Dissipation 4.5W @ 132V AC max.
