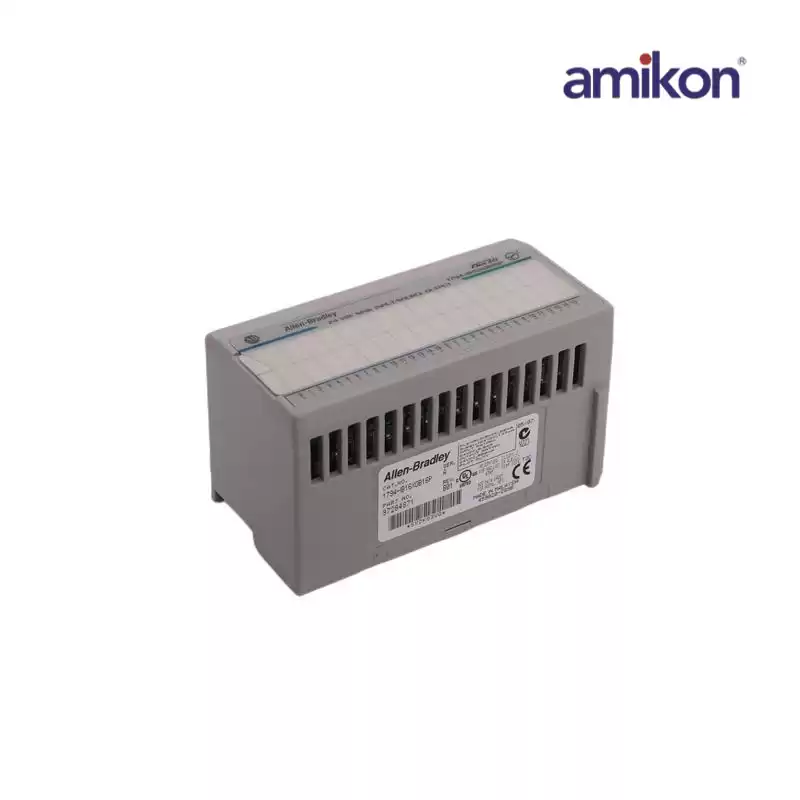

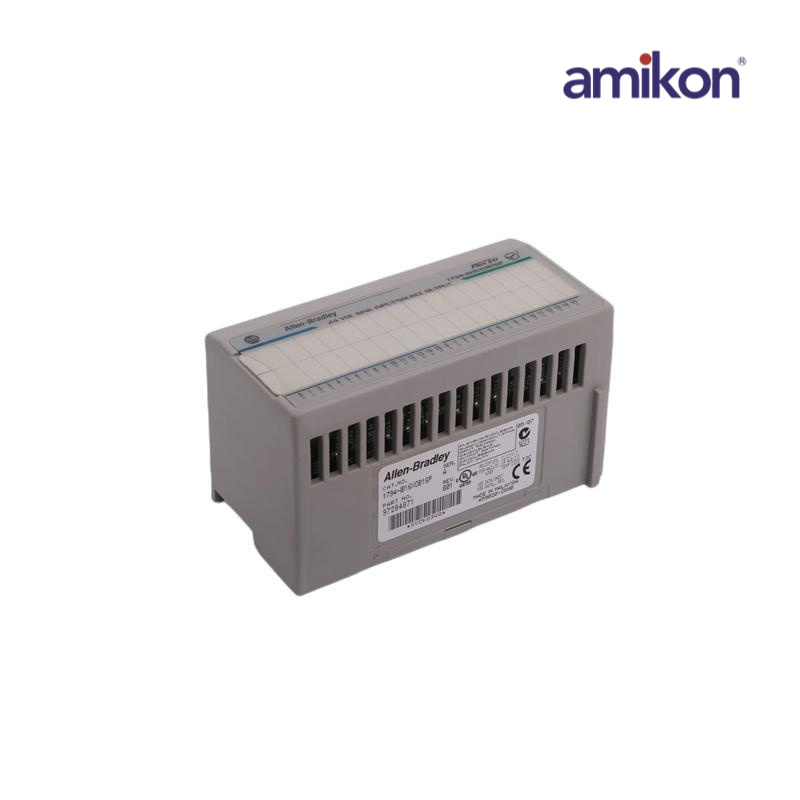

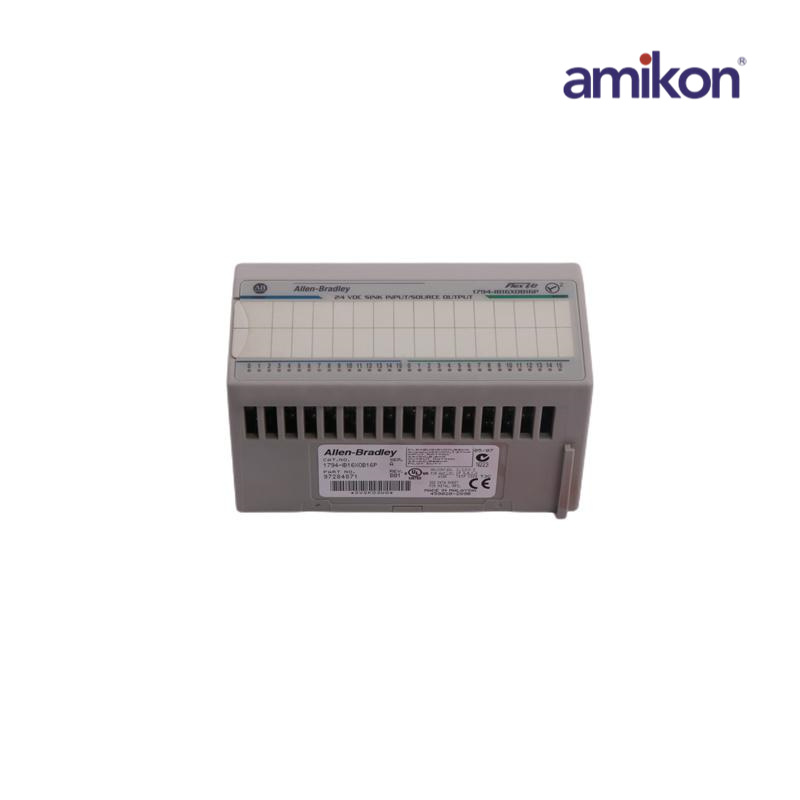

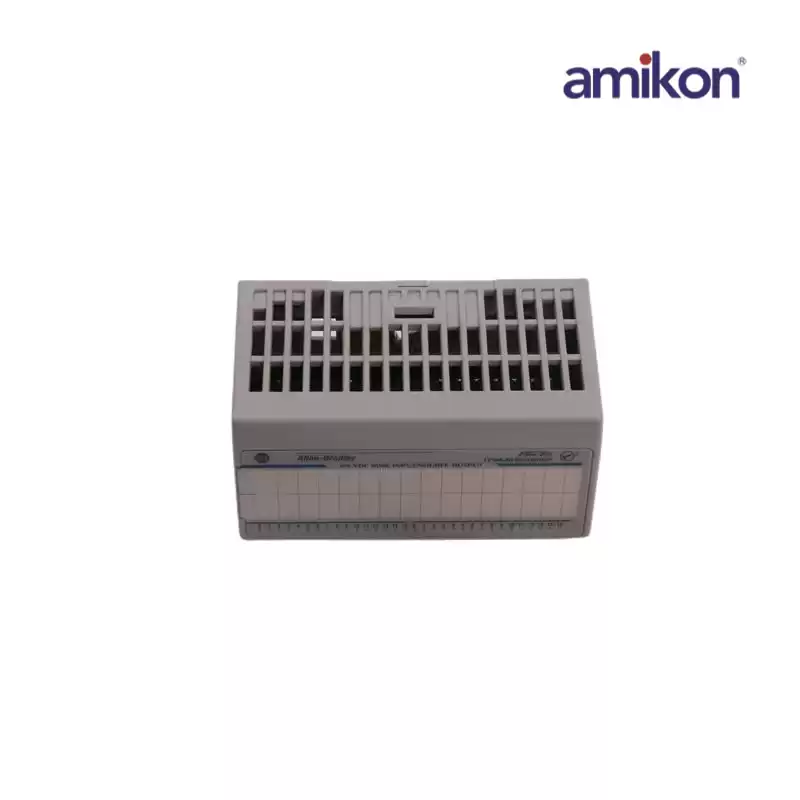

1794-IB16
|
|
Dimensions ：
|
6.2cmx5.5cmx9.7cm
|
Weight：
|
0.1KG
|
|
The 1794-IB16 module has 16 current sinking inputs with 24V DC nominal On-State voltage, 10-31.2V DC On-State voltage range, and 1.5mA minimum Off-State current. It has a maximum power dissipation of 6.1W at 31.2V DC.The 1794-IB16 has a current draw of 30 mA @ 5V DC. The individual input channels are rated10 to 31.2 VDC with nominal input voltage of 24VDC and supports sink wiring configuration.
The 1794-IB16 is a Sixteen (16) channel 24VDC Discrete input module. This module is part of the 1794 Flex IO product family which is primarily used to implement distributed IO solution. With distributed I/O architecture, I/O modules may be installed near the source of the signal or the driven load. This significantly reduces cable runs thus, reduces overall installation costs. It also simplifies maintenance and contributes to overall increase in the control system uptime.
|
|
