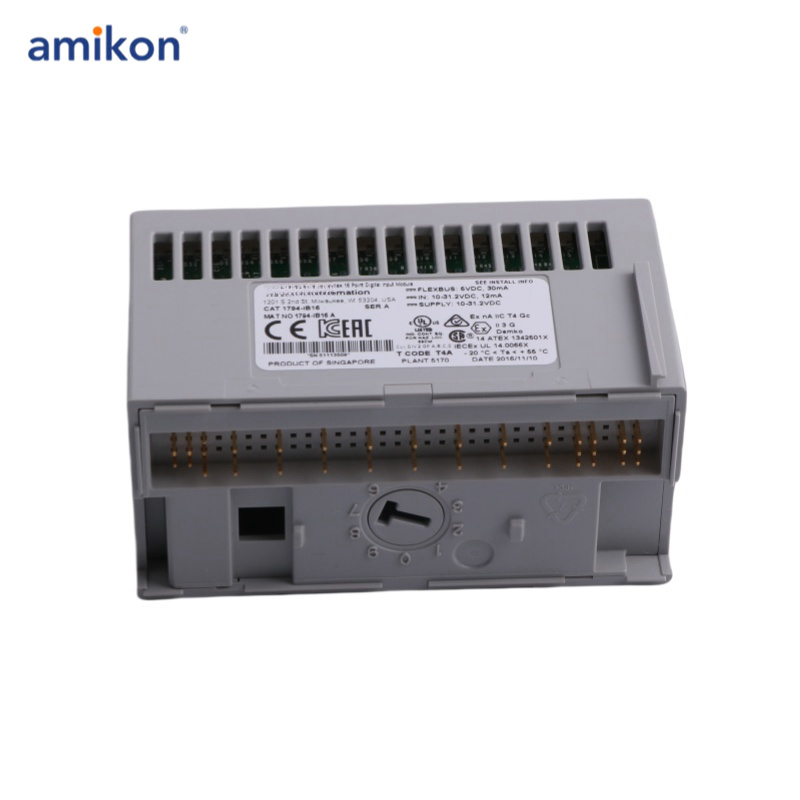

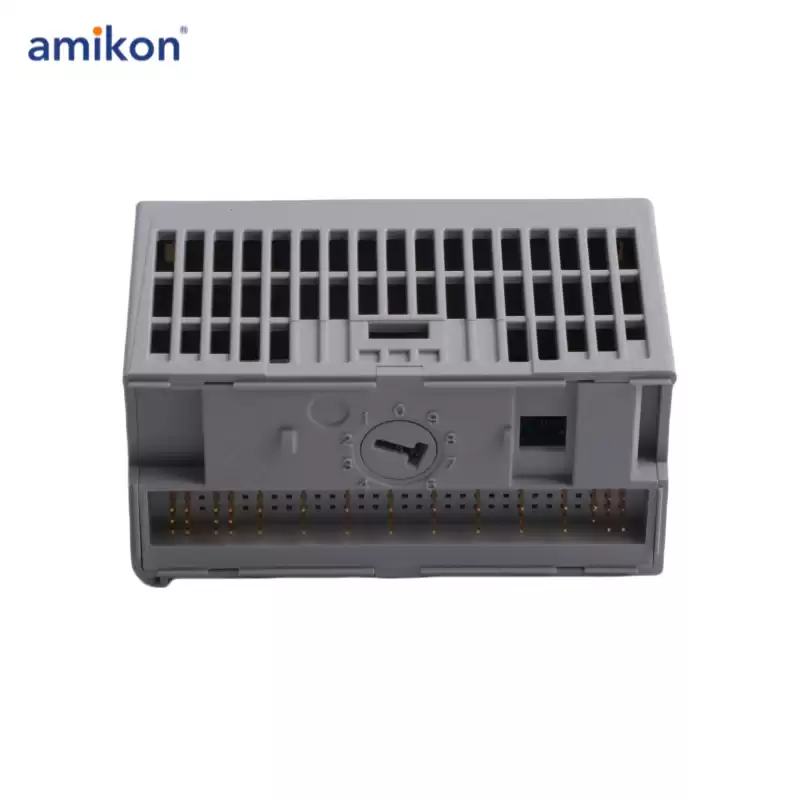

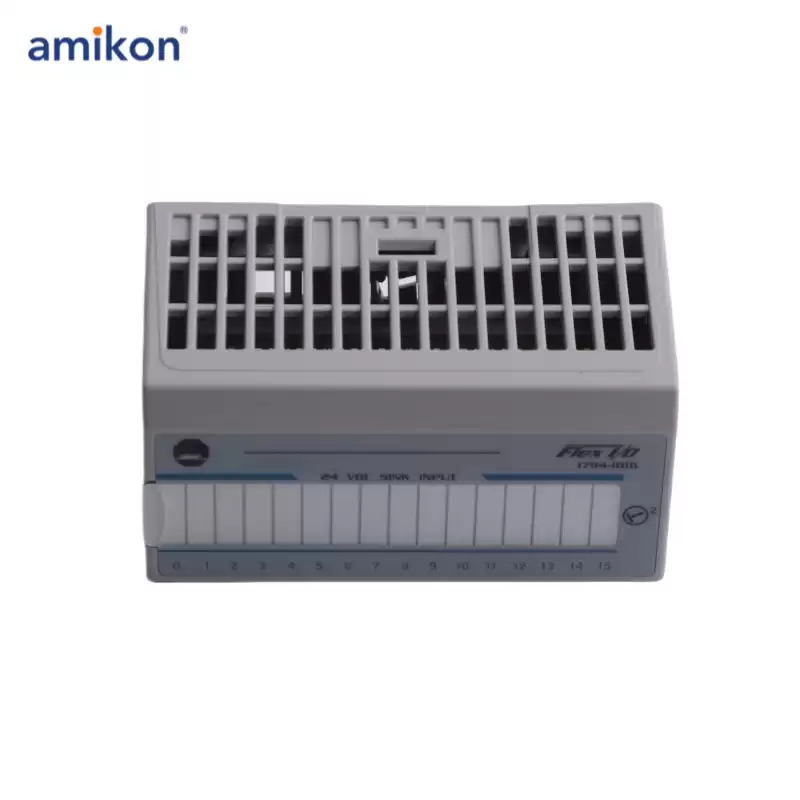

1794-IB16 Flex IO DC Input Module
|
Specification
|
Details
|
|
Product Description
|
Flex IO DC Input Module
|
|
Terminal Base
|
1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS
|
|
Number of Inputs
|
Sixteen (16), sinking inputs
|
|
ON State Voltage (min)
|
19.2 VDC
|
|
ON State Voltage (max)
|
31.2 VDC
|
|
ON State Voltage (nom)
|
24 VDC
|
|
Indicators
|
16 Yellow status indicators
|
|
Mounting
|
DIN Rail
|
|
Wire Size
|
Determined by installed terminal base
|
|
Operating Temperature
|
0 to 55 °C (32 to 131 °F)
|
|
Storage Temperature
|
-40 to 85 °C (-40 to 185 °F)
|
|
Vibration
|
5g @ 10 to 500 Hz
|
|
Operating Shock
|
30 g
|
|
Product Type
|
Flex I/O Digital Input Module
|
|
Inputs
|
16 Current Sinking
|
The 1794-IB16 is a discrete input module featuring sixteen (16) channels designed for 24VDC operation. This module belongs to the 1794 Flex I/O series, commonly utilized in distributed I/O systems. With a distributed I/O setup, modules can be installed near signal sources or loads, minimizing cable lengths, reducing installation costs, simplifying maintenance, and enhancing system uptime.
The 1794-IB16 can be mounted on a DIN rail or directly on a panel. It requires a compatible terminal base for signal wiring termination. Supported terminal bases include 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS. A communication adapter is necessary to transfer I/O data to the corresponding controller or partner scanner module. Compatible communication adapters include options for DeviceNet (1794-ADN), Remote I/O (1794-ASB), Ethernet (1794-AENT), Profibus (1794-APB), and ControlNet (1794-ACN).
