Technical Specifications for 1794-IB8
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Isolation Voltage |
5V Continuous |
|
|
Part Number/Catalog No. |
1794-IB8 |
Input Power |
5V DC |
|
|
Module Type |
Digital Input Module |
Flexbus Current |
20mA @ 5V DC |
|
|
Manufacture Year |
2022 |
Power Dissipation |
3.5W |
|
|
Product Package |
Original Package |
UPC |
10612598181282 |
|

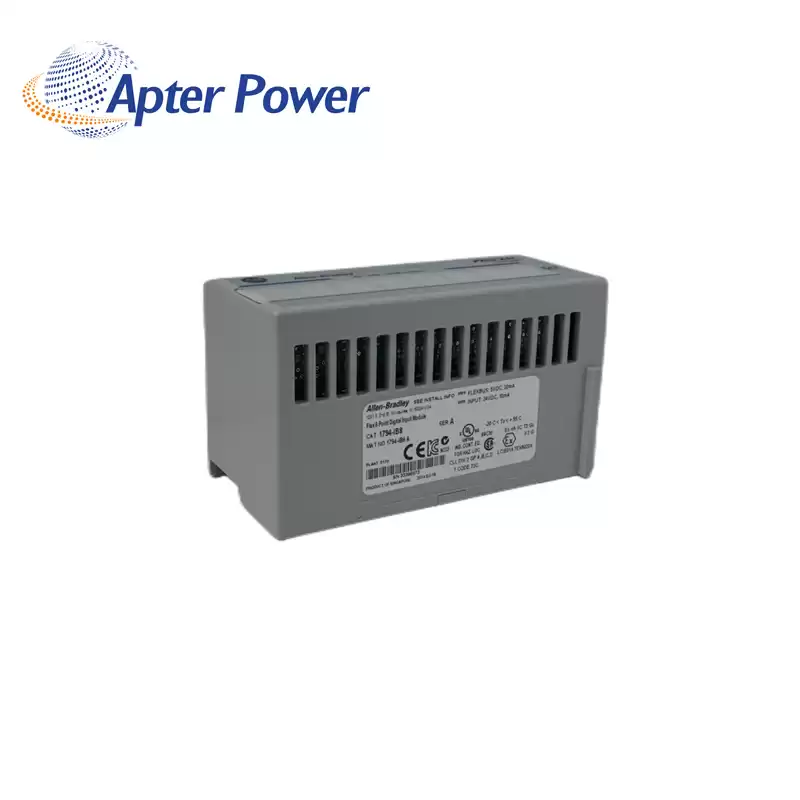

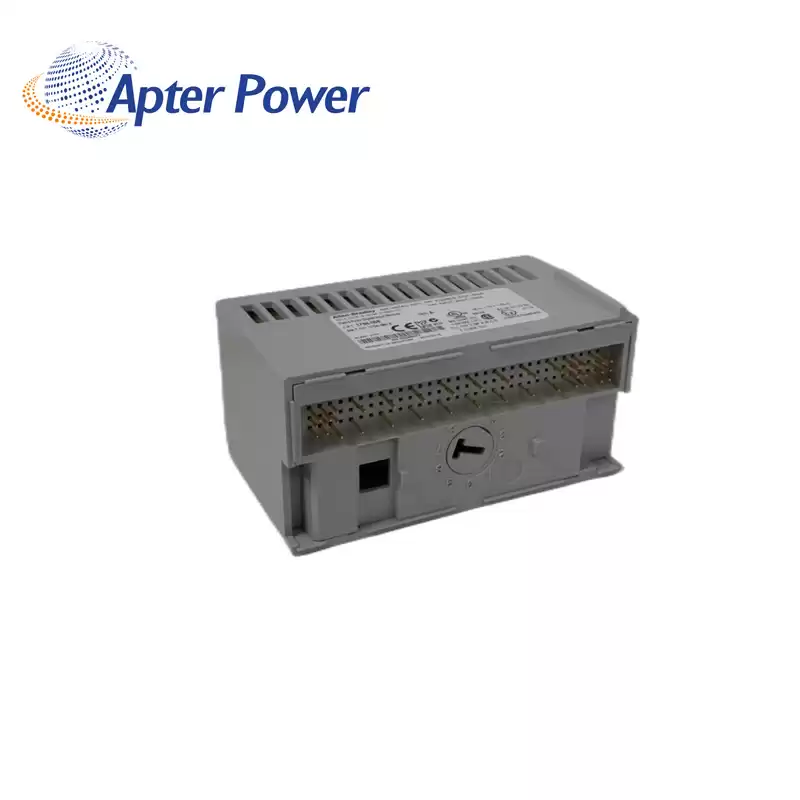

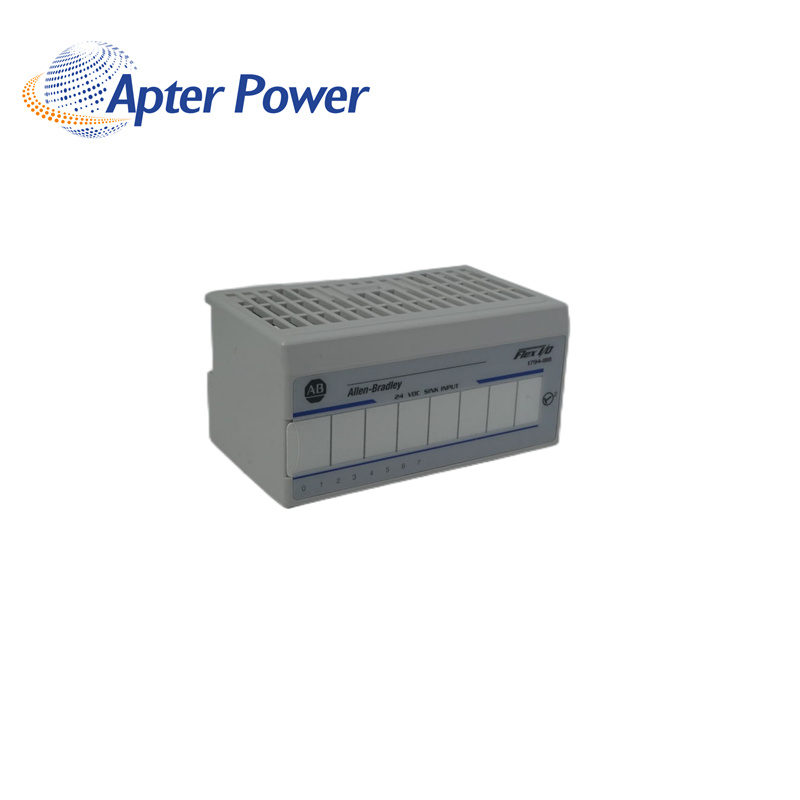

The 1794-IB8 module has 8 current sinking inputs with 24V DC nominal On-State voltage, 10 – 31.2V DC On-State voltage range, and 1.5mA minimum Off-State current. It has a maximum power dissipation of 3.5W at 31.2V DC. Terminal base units compatible with it are the 1794-TB3 and the 1794-TB3S.
It is installed using a DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.The 1794-IB8 is a Flex 1794 Digital DC Input module. It is fitted inside the terminal bus making a connection with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module does not have any direct wiring.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
