Technical Specifications for 1794-IB8
Manufacturer Automation
Brand
Part Number/Catalog No. 1794-IB8
Product Type Flex I/O Digital Input Modules
Inputs 8 Current Sinking
On-state Voltage min. 10V DC
On-state Voltage max. 31.2V DC
On-state Current min. 2.0mA min.
On-state Current max. 12.0mA
Off-state Voltage max. 5V DC
Off-state Current max. 1.5mA
Nominal Input Impedance 4.6 k?
Flexbus Current 20mA @ 5V DC
Power Dissipation 3.5W @ 31.2V DC max.

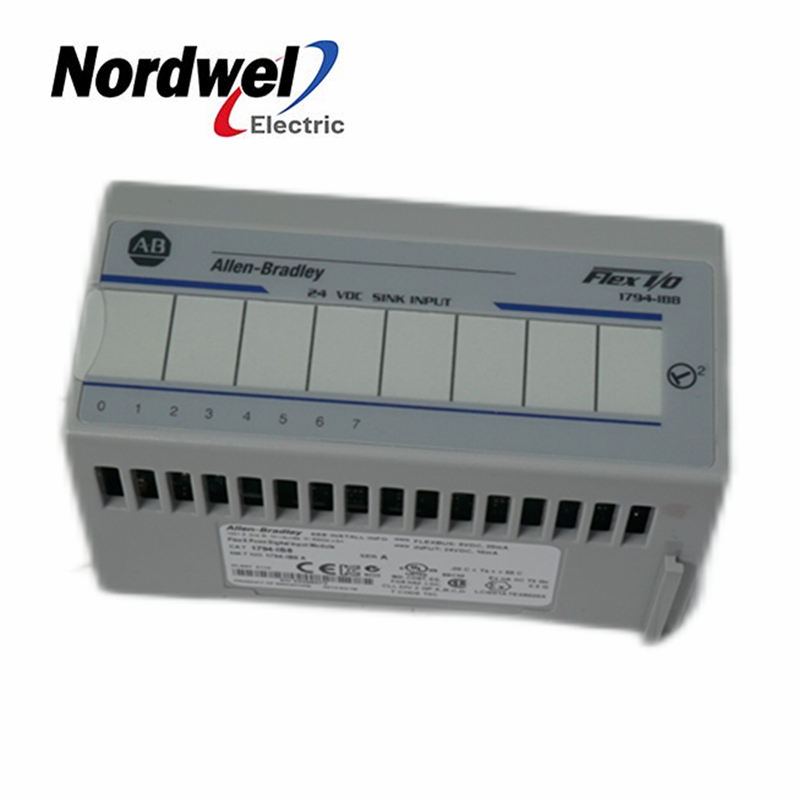

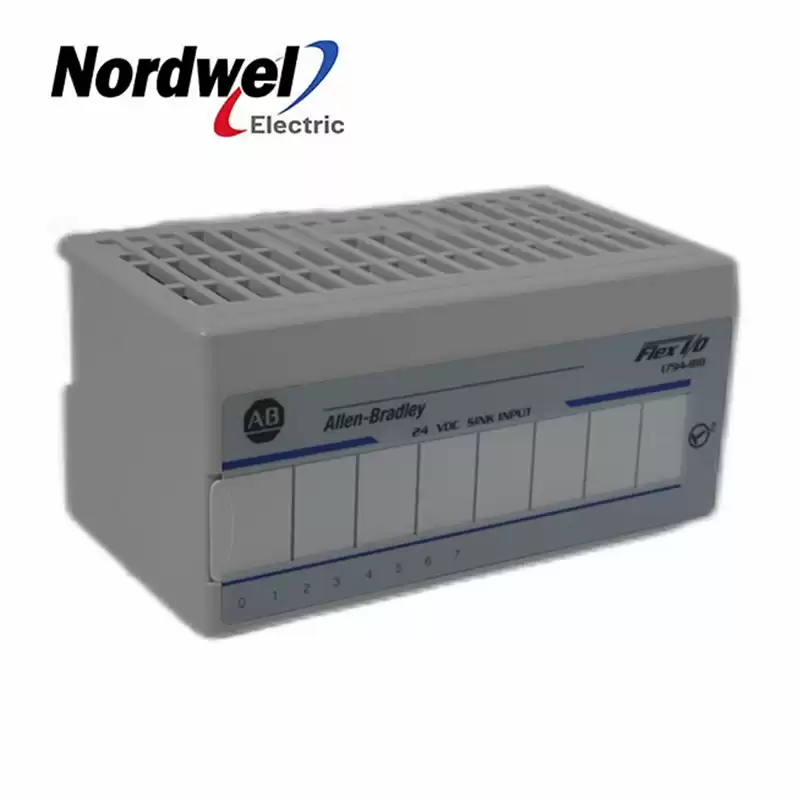

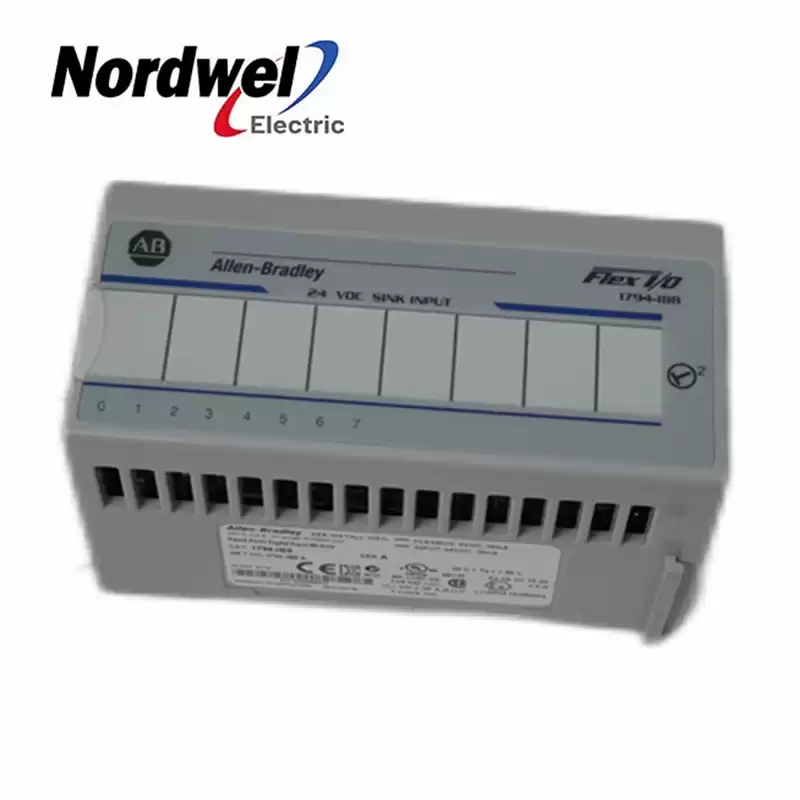

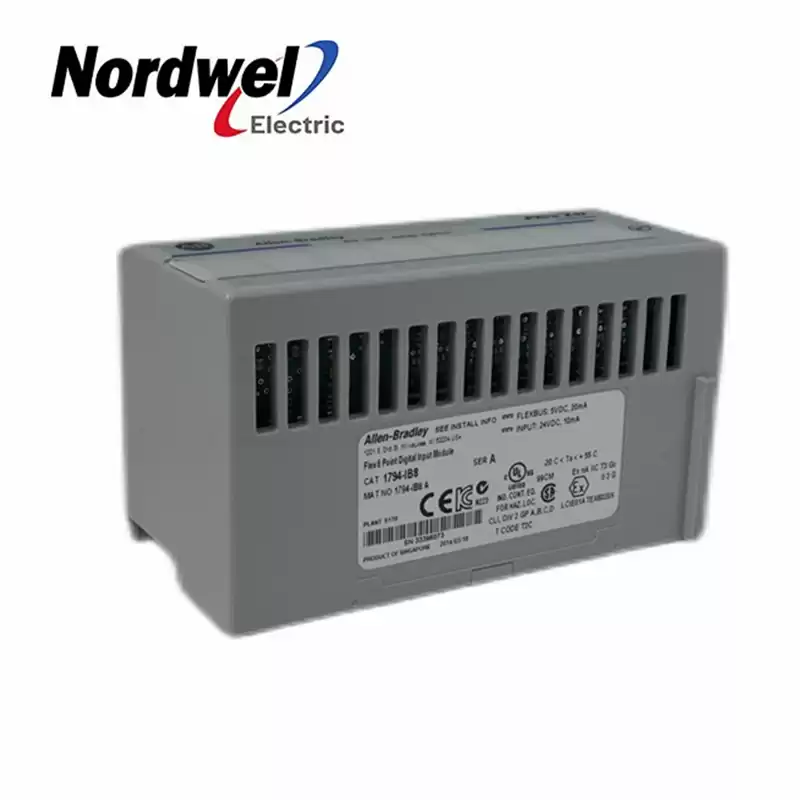

The 1794-IB8 module is an I/O module with 8 digital sink inputs. It has a nominal voltage
rating of 24 Volts DC. It is an SIL2 rated module that is suitable for industrial use.
