Technical Specifications for 1794-IE4XOE2
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Resolution
|
12 bits
|
|
Part Number/Catalog No.
|
1794-IE4XOE2
|
FlexBus Current
|
20mA
|
|
Module Type
|
Analog I/O Module
|
Input Power
|
+/- 10V
|
|
Manufacture Year
|
2022
|
Communication rate
|
5 Mbps
|
|
Product Package
|
Original Package
|
UPC
|
10612598137807
|

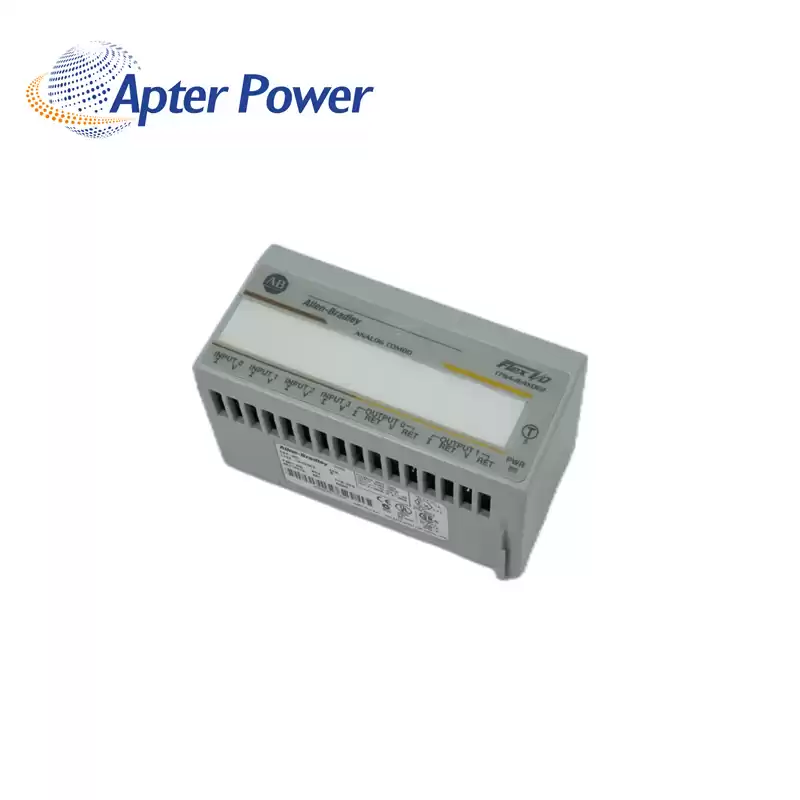

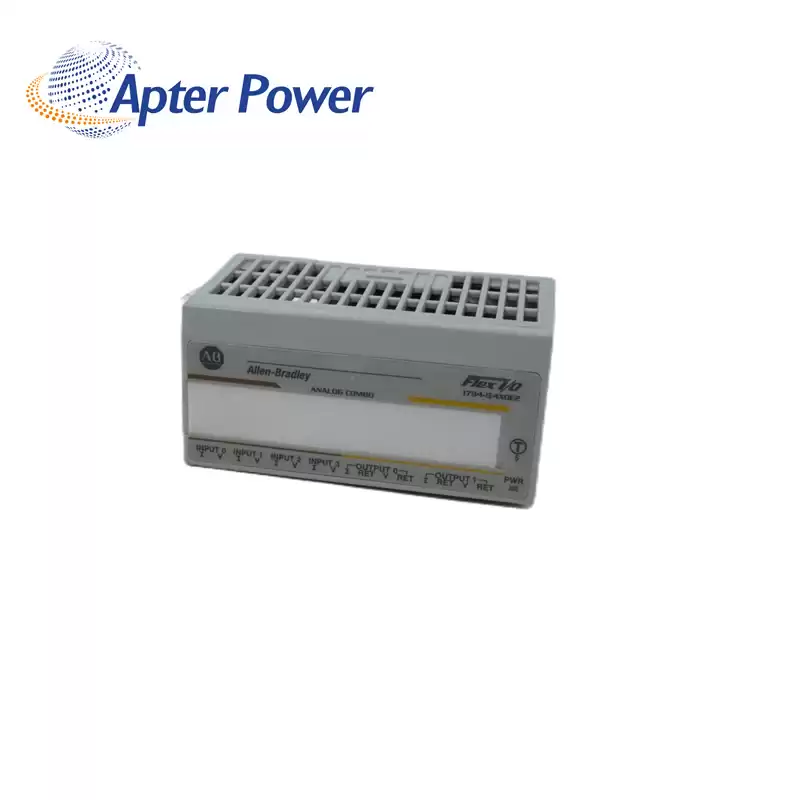

About 1794-IE4XOE2
|
The 1794-IE4XOE2 module contains 4 single-ended and non-isolated inputs. The resolution for unipolar inputs is 12 bits while the resolution for bipolar inputs is 11 bits. The data format is left-justified 16-bits 2’s complement. The conversion type supported by the 1794-IE4XOE2 module is successive approximation conversion.
The input current terminal is selectable between 4 to 20 milliamps or 0 to 20 milliamps.The analog input channels are configurable to receive analog input signals such as 0-20 mA and 4-20 mA signals and 0-10VDC and +/- 10VDC voltage signals. It has a built-in Analog to Digital converter (ADC) using the successive approximation method.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
