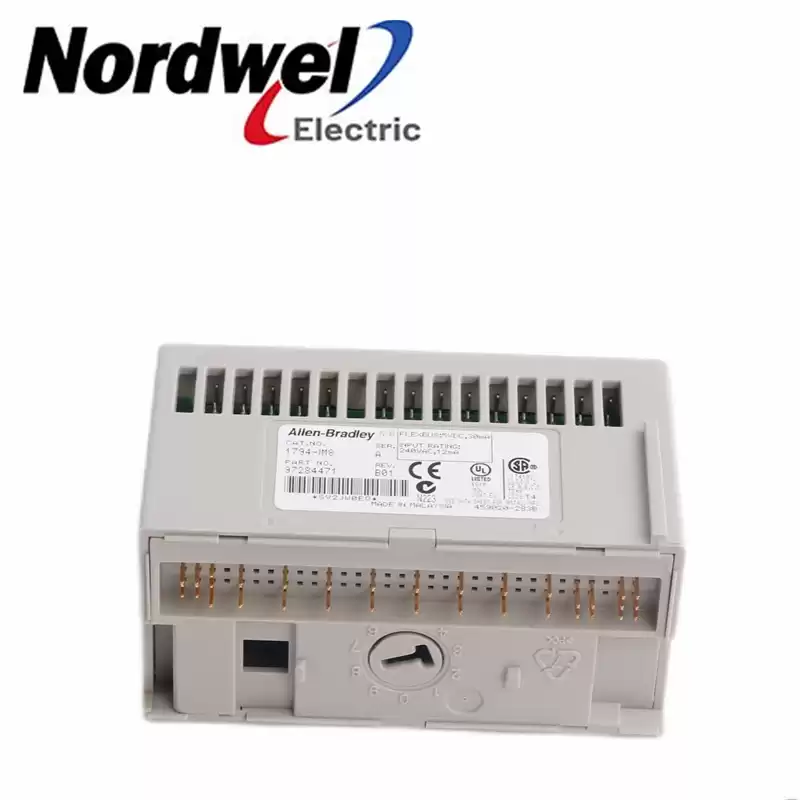

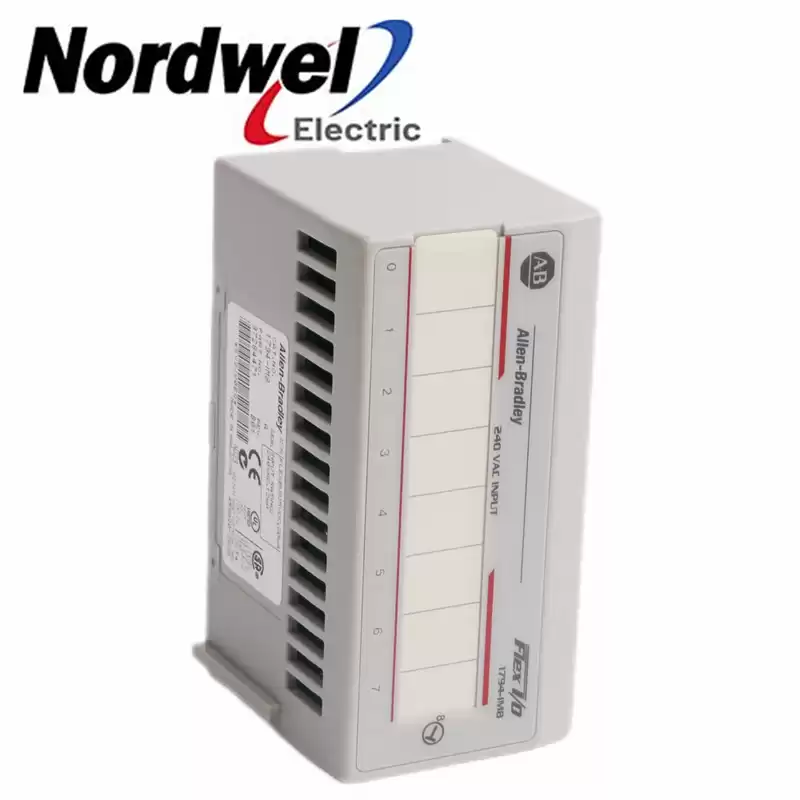

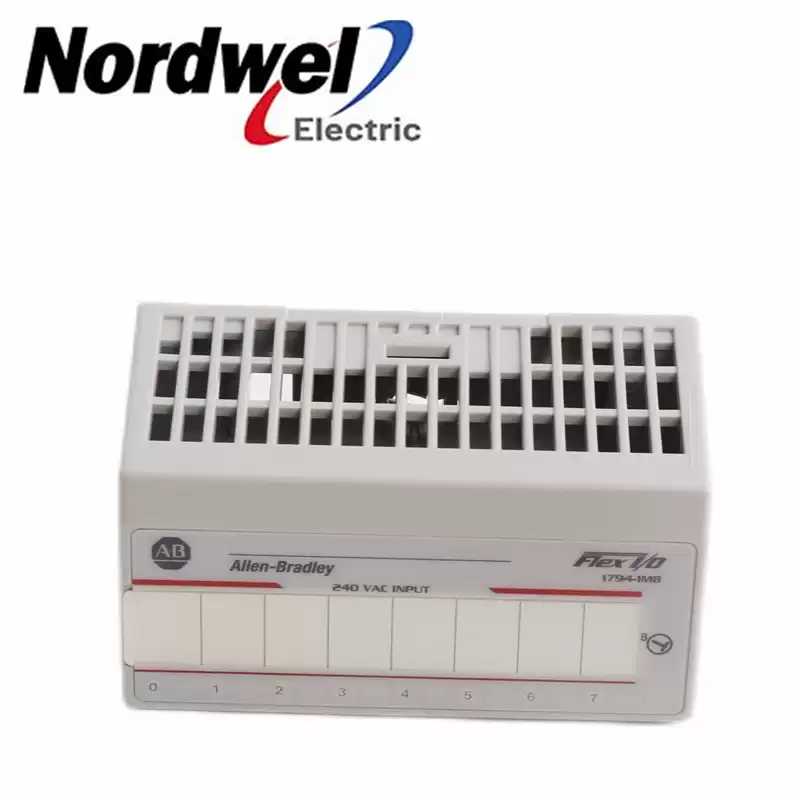

| 1794-IM8 | Flex I/O 220V AC Digital Input Module

Part Number1794-IM8
Weight0.1 kg
Description | 1794-IM8 | Flex I/O 220V AC Digital Input Module
CertificationCOO
Place of OriginUSA
Manufacture YearThe latest year
Dimensions9.3 cm x 5.5 cm x 4.8 cm

Description

Manufacturer Automation
Brand
Part Number/Catalog No. 1794-IM8
Product Type Flex I/O 220V AC Digital Input Module
Inputs 8 Nonisolated
On-state Voltage nom. 240V AC
On-state Current max. 13.21 mA
Off-state Voltage max. 40V AC
Off-state Current max. 2.6mA
Nominal Input Impedance 22.3 k?
Nominal Input Current 12mA @ 240V AC
Isolation Voltage 250V Continuous
Flexbus Current 30mA @ 5V DC
Thermal Dissipation 16.2 BTU/hr. @ 264V AC max.
