excitation current is 718.36 µAmps. It comes with an accuracy of 0.05% full scale, which is the maximum in the normal mode, and 0.01% full scale, which is typical in the enhanced mode at low humidity without calibration.
|
|

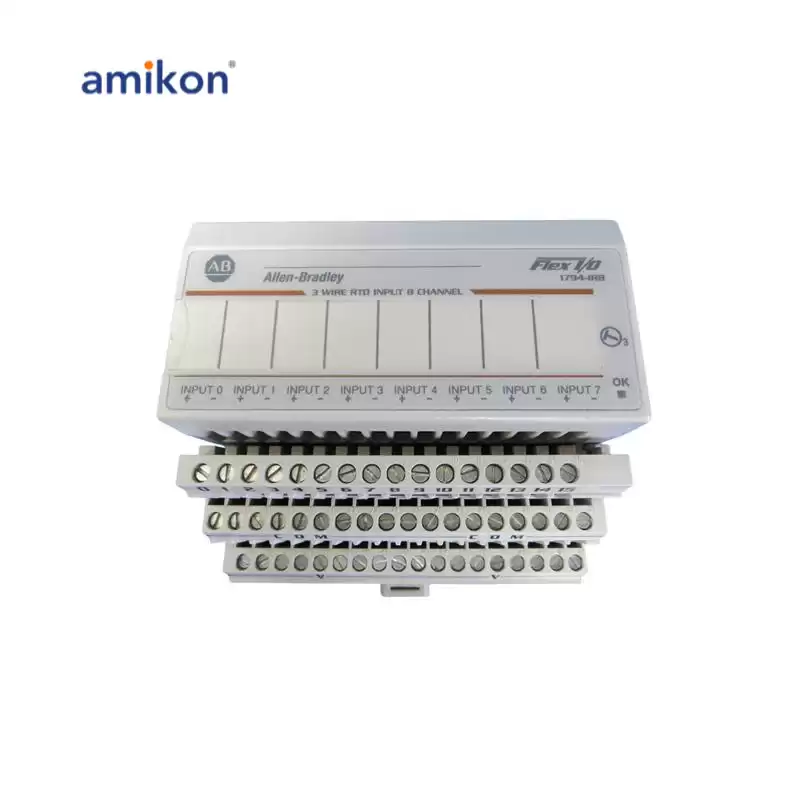

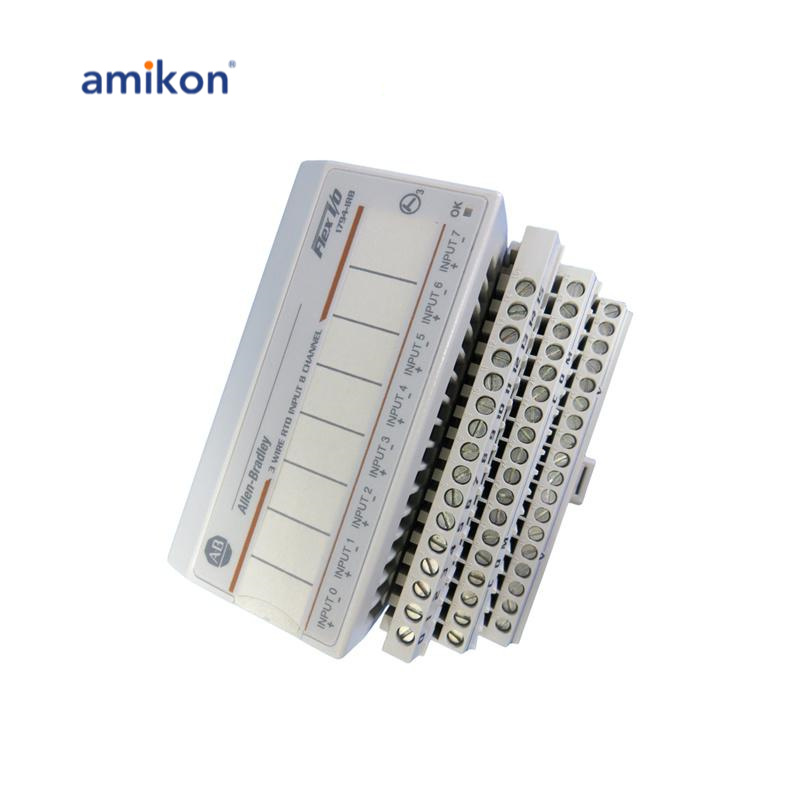

1794-IR8 Description:
|
It has 0 Volts common mode input range and a common mode rejection of -120 dB at 60 Hertz and -100 dB at 50 Hertz with A/D filter cutoff at 10 Hertz.
|
|
has an RTD excitation current of 718.36?A.It has a resolution of 16 bits across 435 ohms and accuracy of 0.05% full scale in normal mode and 0.01% full scale in enhanced mode.
|
|
16-bit register with data format of 16-bit 2’s complement or offset binary (unipolar).
|
|
