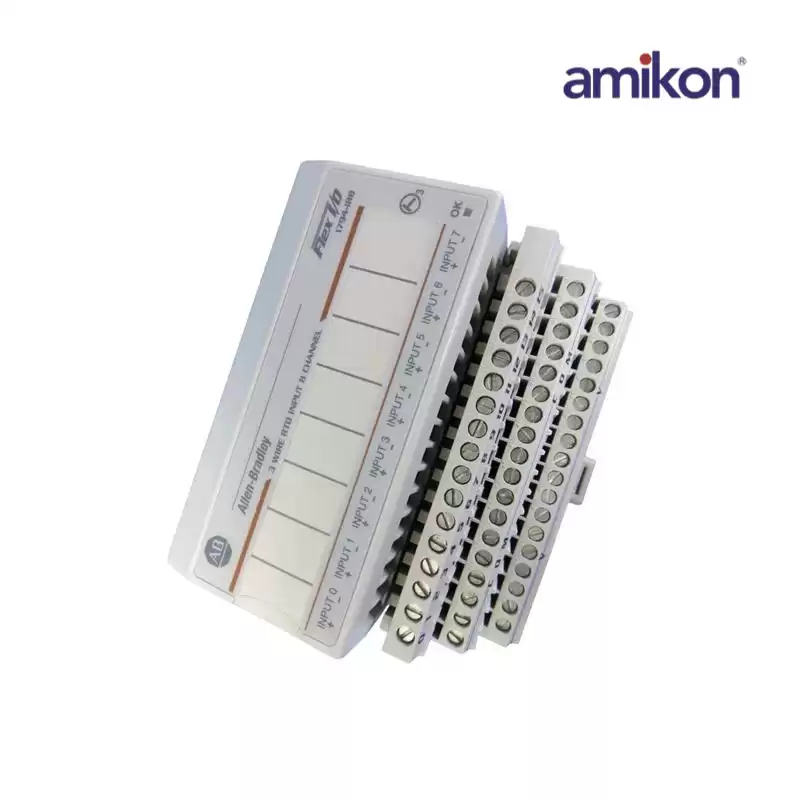

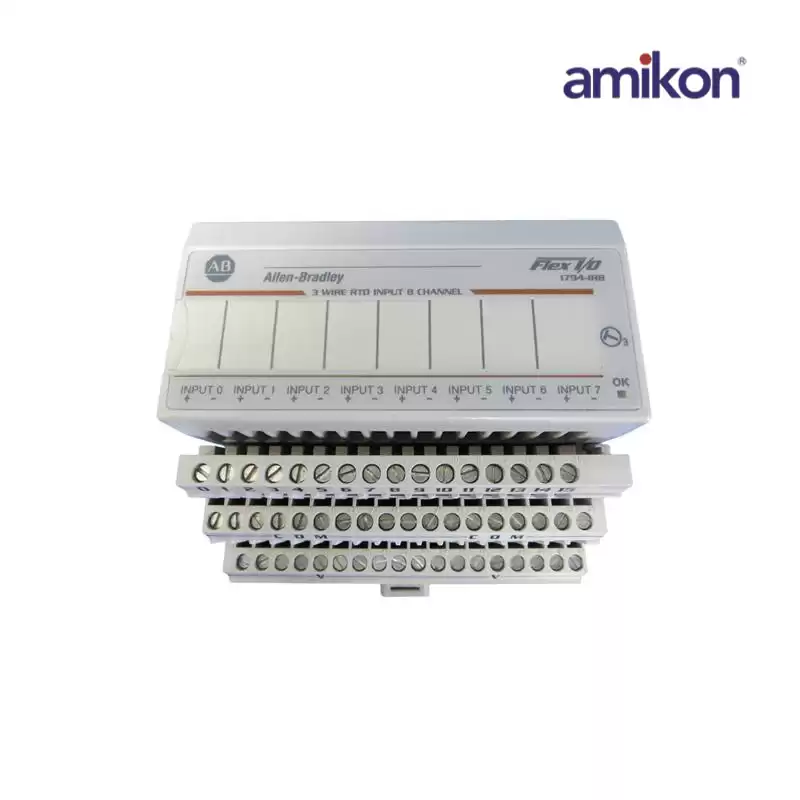

1794-IR8
|
|
Dimensions ：
|
13.7cmx8.5cmx6.2cm
|
Weight：
|
0.22KG
|
|
The 1794-IR8’s RTD excitation current is 718.36 µAmps. It comes with an accuracy of 0.05% full scale, which is the maximum in the normal mode, and 0.01% full scale, which is typical in the enhanced mode at low humidity without calibration. It has 0 Volts common mode input range and a common mode rejection of -120 dB at 60 Hertz and -100 dB at 50 Hertz with A/D filter cutoff at 10 Hertz.
The 1794-IR8 has an RTD excitation current of 718.36?A.It has a resolution of 16 bits across 435 ohms and accuracy of 0.05% full scale in normal mode and 0.01% full scale in enhanced mode. The module converts the analog data into digital format and stores it to a 16-bit register with data format of 16-bit 2’s complement or offset binary (unipolar).
|
|
