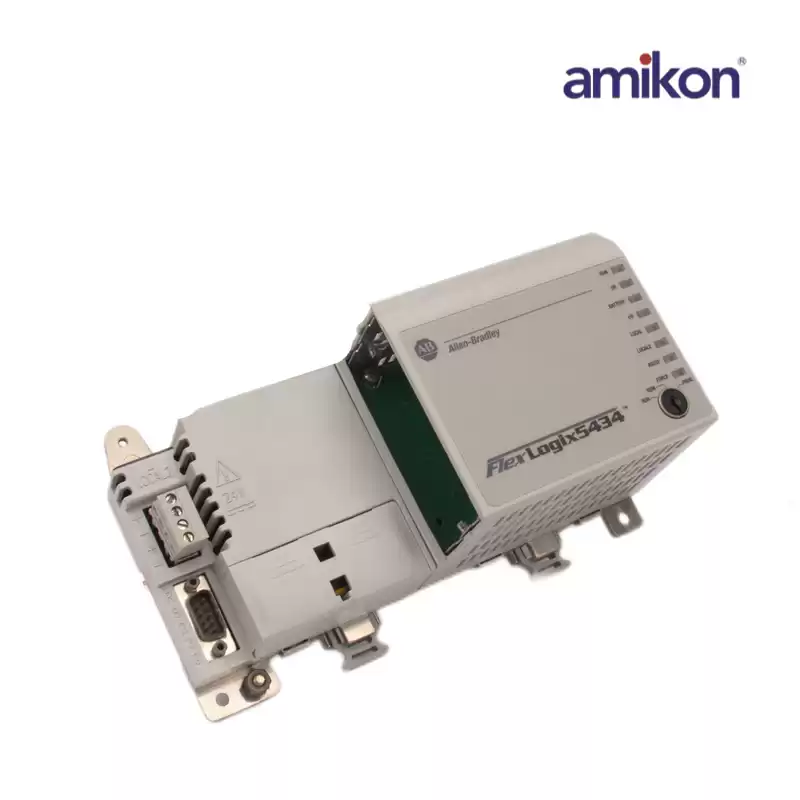

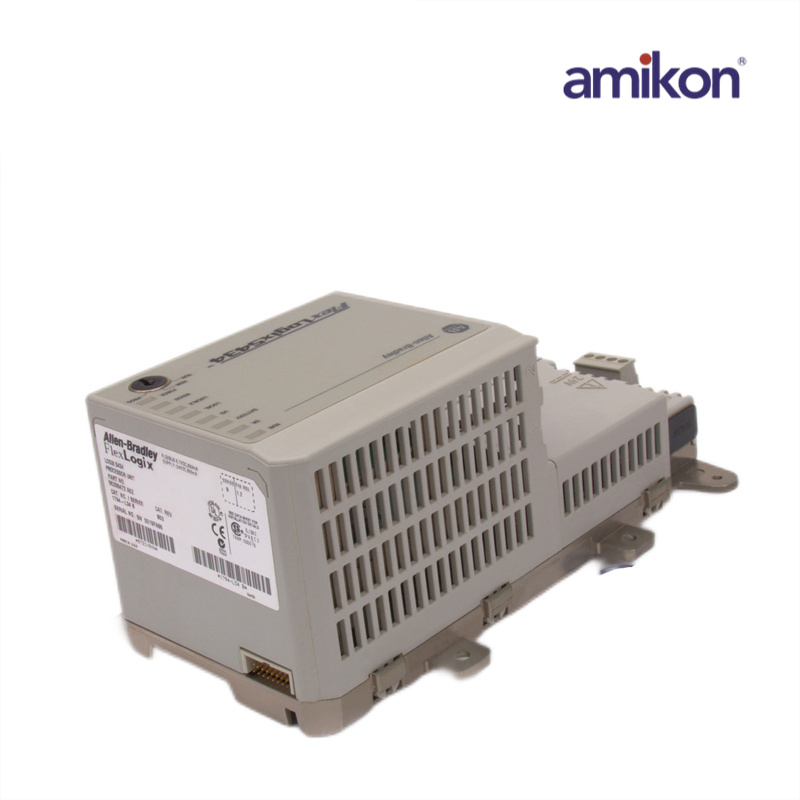

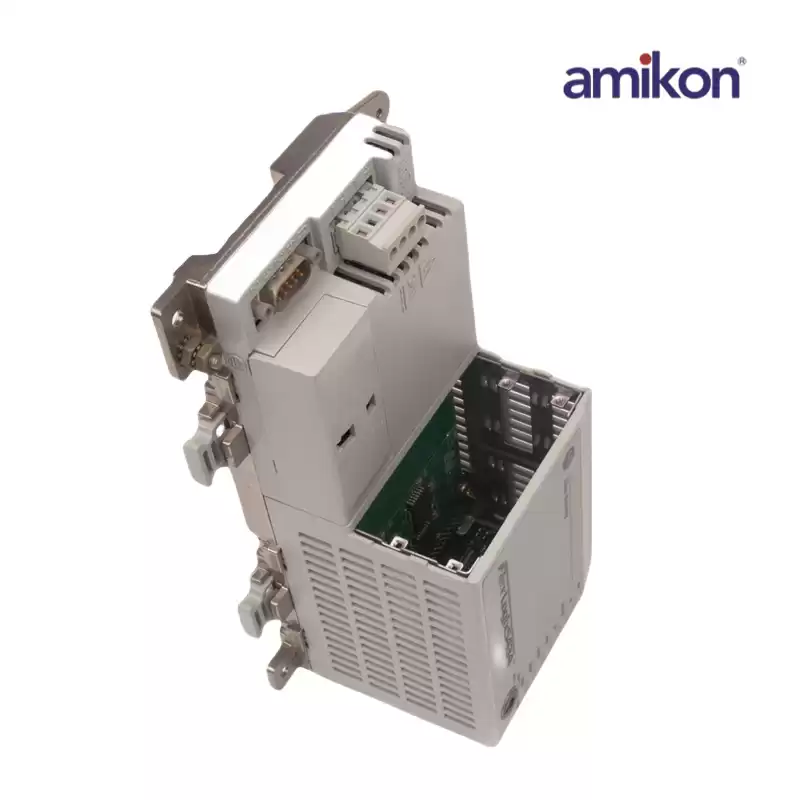

1794-L34
|
|
Dimensions ：
|
20cmx8cmx10cm
|
Weight：
|
0.75KG
|
|
The 1794-L34 comes with an internal user memory amounting to 512 Kbytes. It is powered by an external supply voltage of 24VDC, nominal with acceptable voltage range of 19-31.2 VDC, including 5% ac ripple. It requires a FlexBus current of 653mA maximum @ 5.1V dc and power dissipation of 25.5W maximum at 19.2V and 20.4W maximum at 24V dc while the controllers Thermal dissipation is 87BTU/hour @ 19.2V.
The 1794-L34 features an embedded serial communication interface that supports ASCII and DF1 protocol. ASCII is typically used for communicating with barcode readers while DF1 may be used to used with operator terminals such as PanelView Graphic Terminals as well as Supervisory Control and Data Acquisition (SCADA) systems. It may be installed with communication adapters such has the 1788 communication adapters to become compatible with Ethernet, DeviceNet and ControlNet communication networks.
|
|
