Manufacturer Automation
Thermal Dissipation 87BTU/hour @ 19.2V
Power Dissipation 25.5W maximum at 19.2V; 20.4W maximum at 24V dc
Isolation Voltage 30V dc Qualification tested to withstand 850V dc for 60

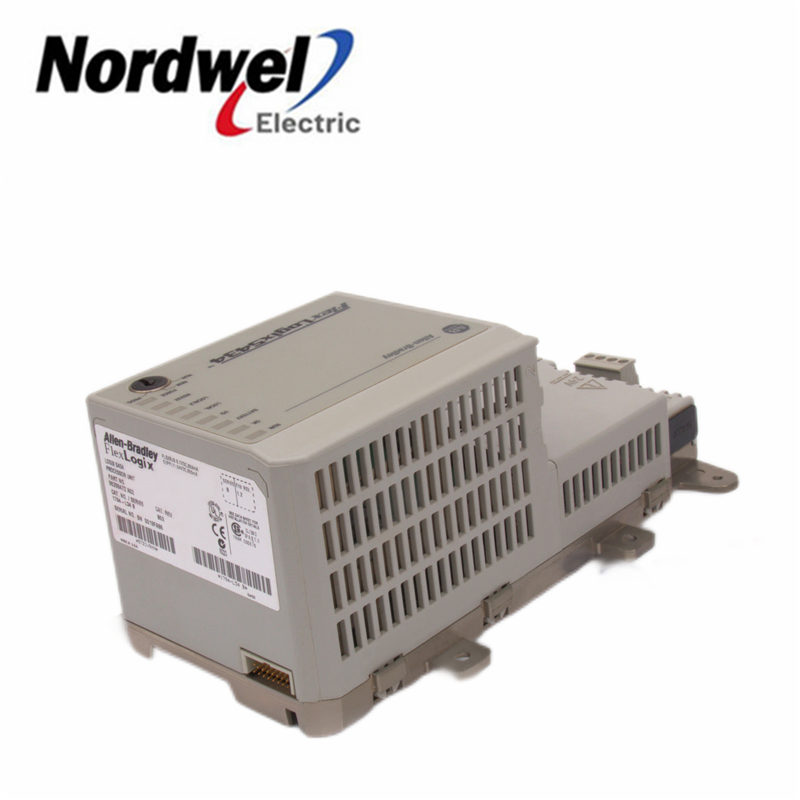

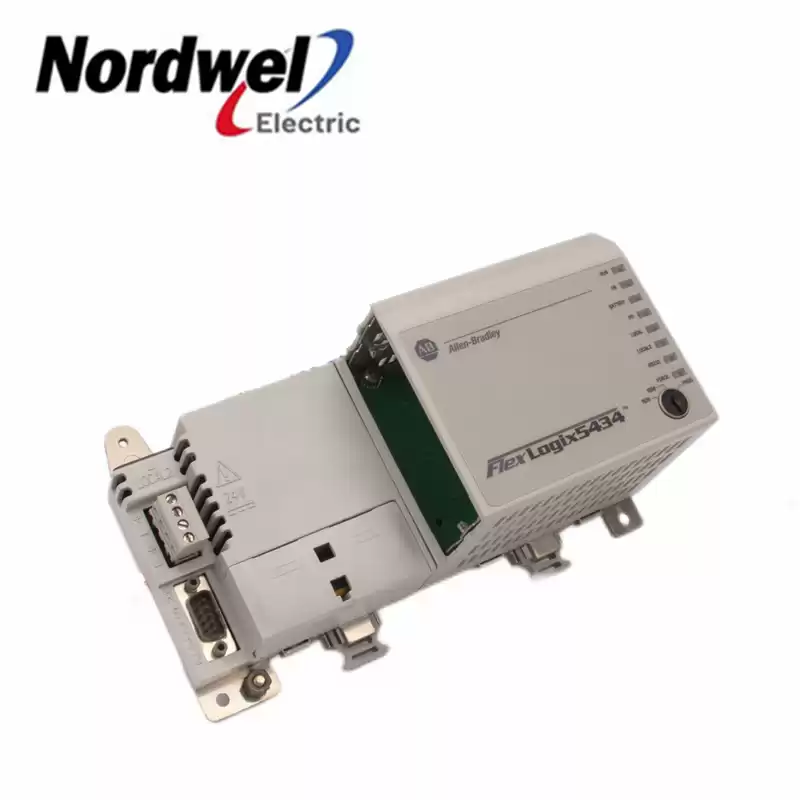

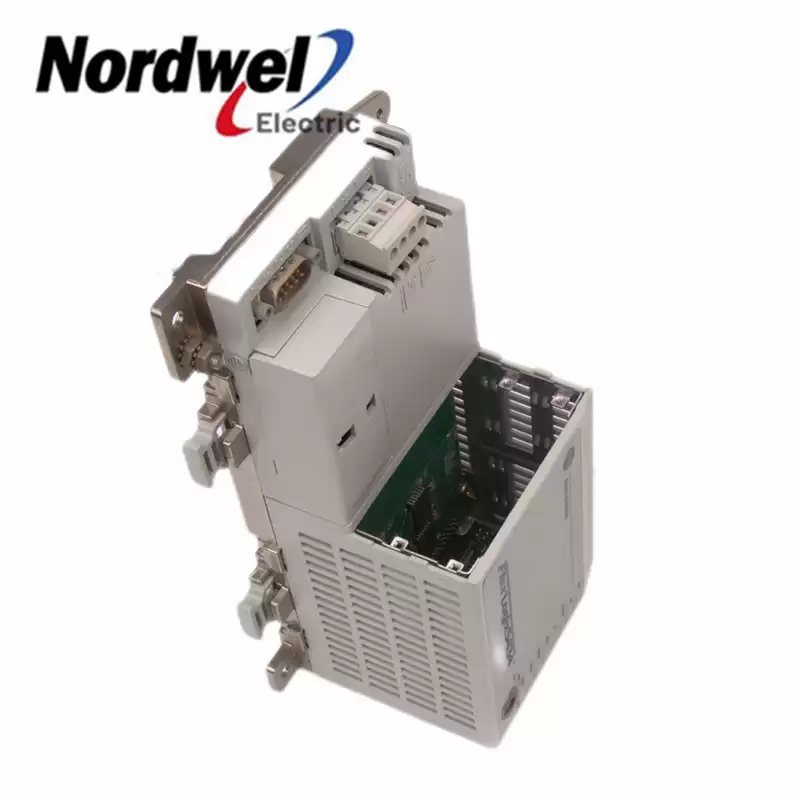

Part Number/Catalog No. 1794-L34
Brand
Product Description: Flex IO Controller
User Memory: 512 Kbytes
Nominal power supply voltage: 24V dc
Power supply voltage range: 19.2-31.2 VDC
Backplane Current: 653mA maximum @ 5.1V dc
Extended local I/O cable: 1794-CE1 cable (1 foot); 1794-CE3 cable (3 feet)
Mounting: DIN Rail; Panel Mount
DIN Rail type: steel, 35 x 7.55mm DIN rail A-B part number 199-DR1; 46277-3; EN 50022
Product Type FlexLogix Controller System
Memory 512 Kb
Input Voltage 24 Volts DC
Input Current 0.85A at 24 Volts DC maximum
Flexbus Current Output 653mA at 5.1 Volts DC maximum
Weight 0.75 kilograms
Power Connector Torque 0.6 to 0.8 N-m
Enclosure Type Rating None(open-style)
