Technical Specifications for 1794-OB16
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Isolation Voltage
|
50V Continuous
|
|
Part Number/Catalog No.
|
1794-OB16
|
Input Power
|
24V DC
|
|
Module Type
|
Digital Output Module
|
Inputs
|
16 Sourcing Current
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
5.3W
|
|
Product Package
|
Original Package
|
UPC
|
10612598137852
|

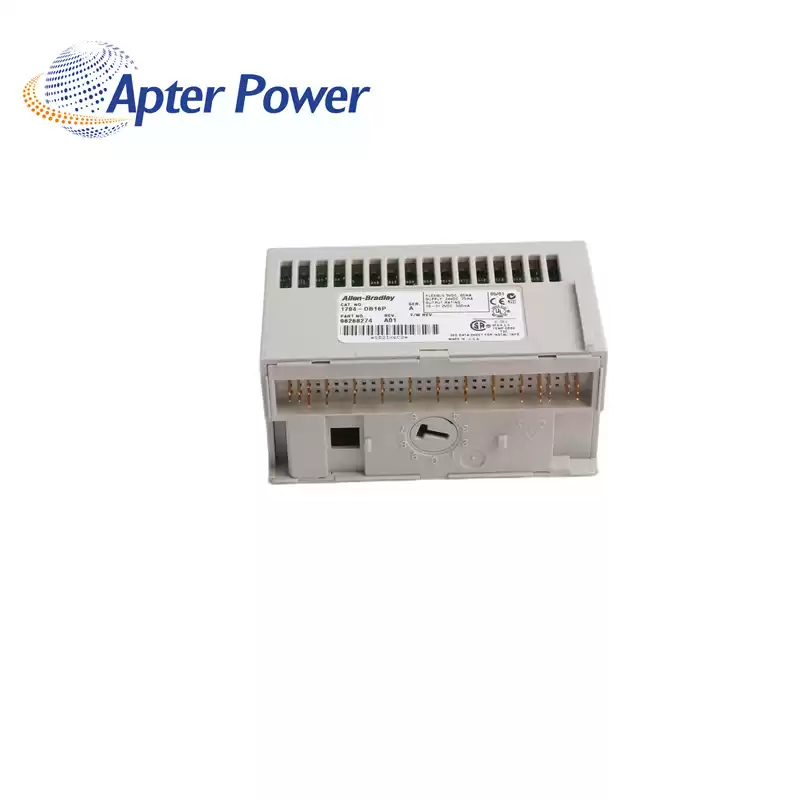

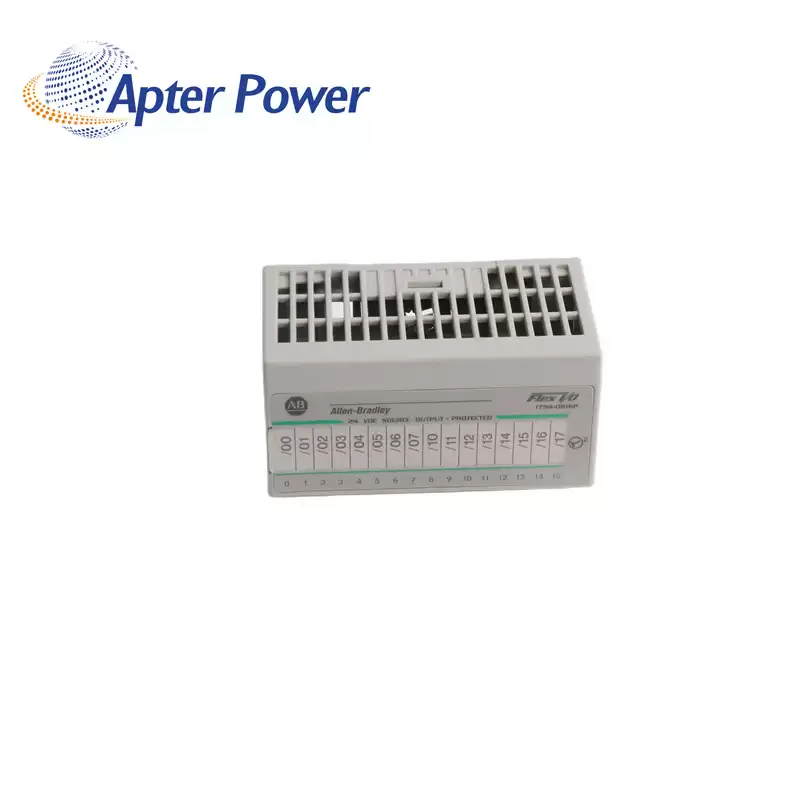

About 1794-OB16
|
The thermal dissipation of the 1794-OB16 module is 18.1 BTU per hour. The maximum off-state voltage is 31.2 Volts DC. The module dimensions are 3.7 x 3.7 x 2.7 inches. The approximate weight for the 1794-OB16 module is 78 grams. The module has 16 yellow indicators for field-side status indicationThe 1794-OB16 module is a digital DC output module for FLEX I/O. It has 16 current sourcing outputs.
The minimum, maximum, and nominal on-state voltages are 10 Volts DC, 31.2 Volts DC, and 24 Volts DC, respectively. The output current rating of all the 16 outputs (each rated at 0.5 Amps) is 8 Amps while the minimum on-state current is 1 milliamp per channel and the maximum on-state current is 500 milliamps per channel. The maximum on-state voltage drop is 0.5 Volts DC.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
